LT3092-Slide7

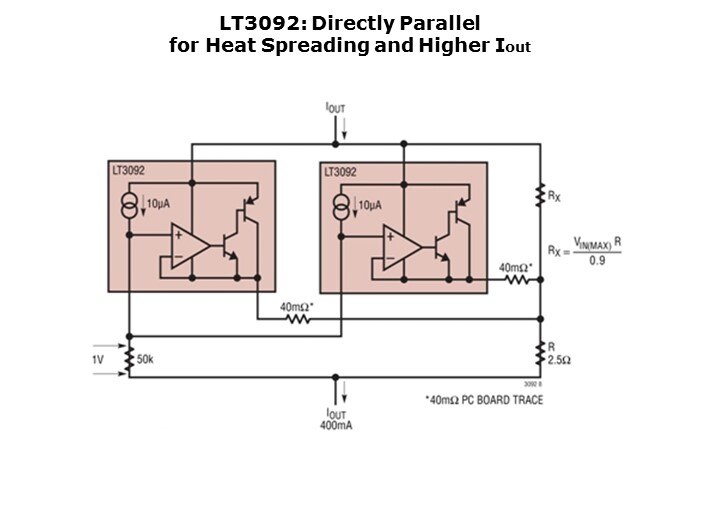

The LT3092 current source may be easily paralleled to increase output current. The outputs of the regulators are summed through 40mΩ ballast resistors, causing the currents to share. These resistors typically can be made up by a small piece (trace) of the PC board that the devices are mounted on.

PTM Published on: 2011-05-13
