LTC2369-Slide7

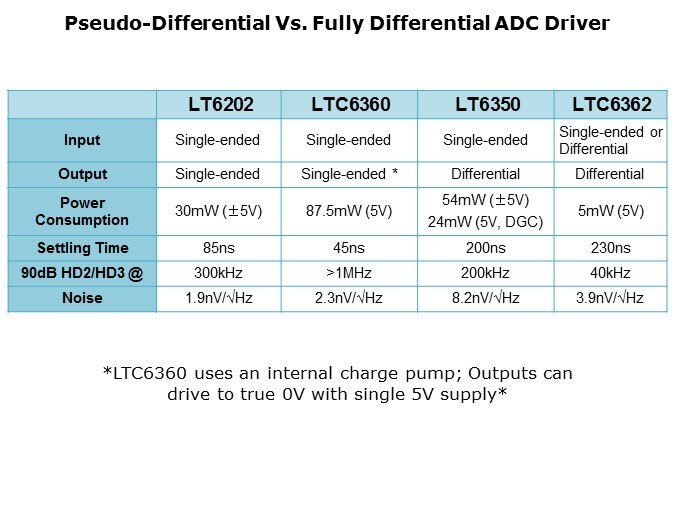

The table shown on this slide compares the four amplifiers shown on the previous slides. It also highlights the speed, distortion, signal bandwidth, and noise performance specifications offered by these amplifiers. All these specifications, along with the overall power dissipation and SNR requirements of the system, are important to consider when selecting a driver for the ADC.

PTM Published on: 2012-06-18
