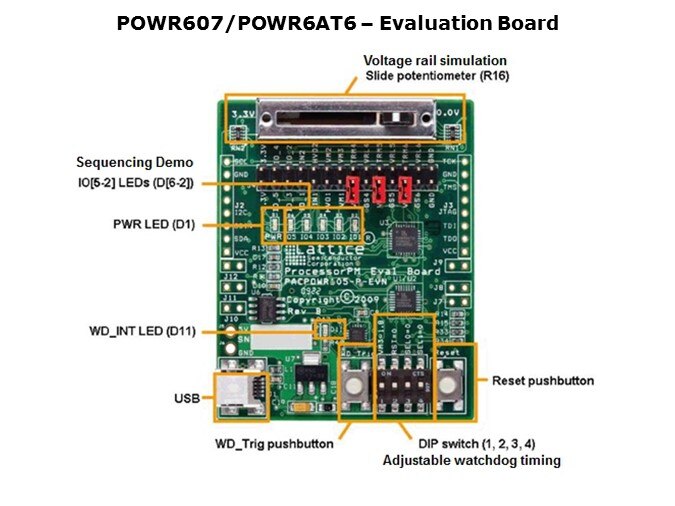

The POWR607 is supported by the POWR607 Evaluation board. The board is preprogrammed allowing evaluation of various functions. Potentiometer R16 demonstrates a voltage rail varying in and out of regulation. LEDs give visual verification of sequencing, power good, variable watchdog timing and reset. Two pushbuttons provide a manual reset or watch dog input. The device can be reprogrammed to test other functions through J3, the JTAG interface or through a USB port.
