EMI-Slide4

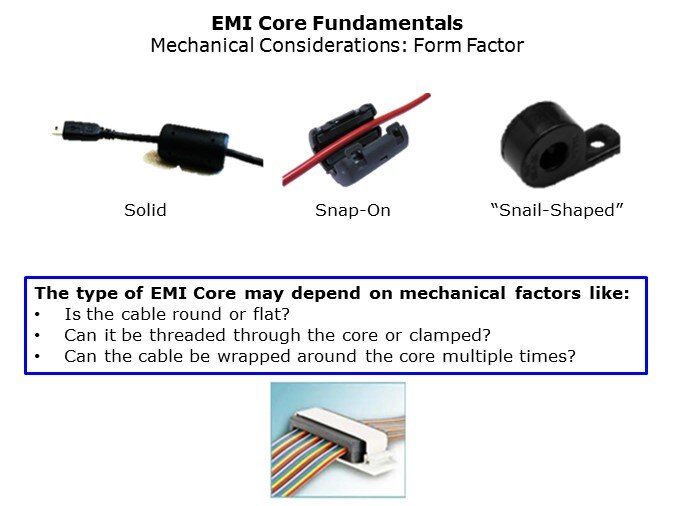

Both mechanical and electrical characteristics are considered when choosing an EMI core. Mechanically, a flat cable requires a flat core, while a round cable wire might be clamped or threaded through, as in the case of a laptop’s power supply cord. A snail shaped core can be bolted onto a rack.
