LED-Slide11

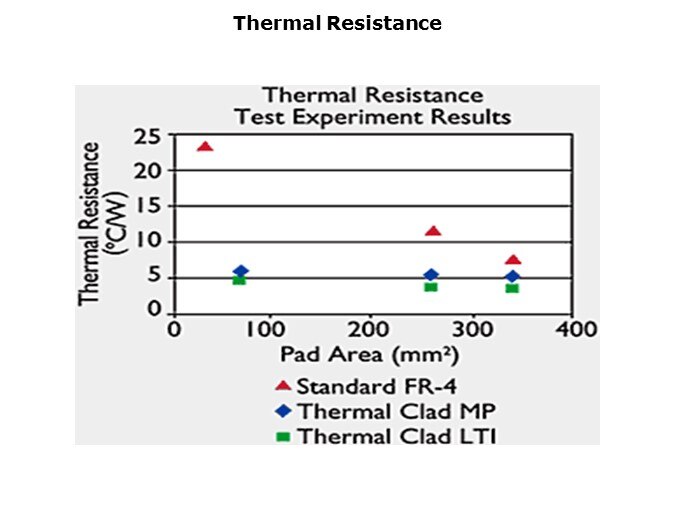

There are several options available for thermal management of Power LEDs. However, the most critical component is the one with the highest thermal resistance. As shown in this slide, the thermal resistance can be significantly reduced by replacing the FR-4 board with a Bergquist Thermal Clad board.
