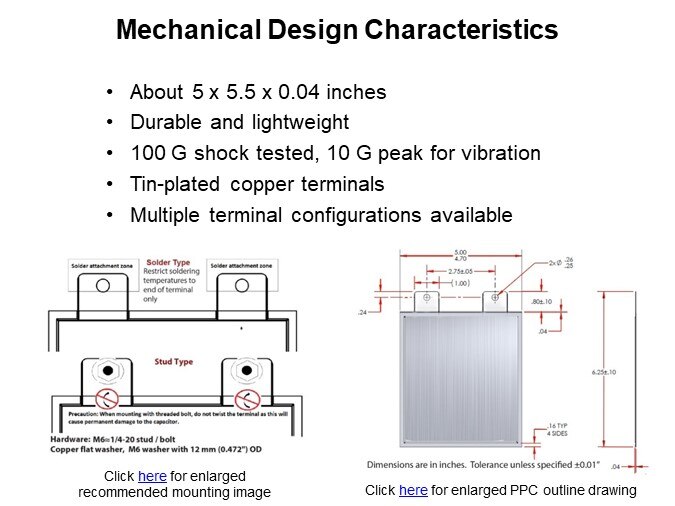

Mechanical Design Characteristics Cornell Dubilier's Recommended Mounting Diagram Cornell Dubilier's PPC Outline Drawing

Taking a look at the mechanical characteristics really shows how different this capacitor series is. The basic version measures about 5 x 5.5 x 0.04 inches. The package is durable, lightweight, and shock-tested to 100 G and vibration-tested to 10 G. For solderability and reliability, the flat terminals are tin-plated copper, with multiple other terminal configurations available.
