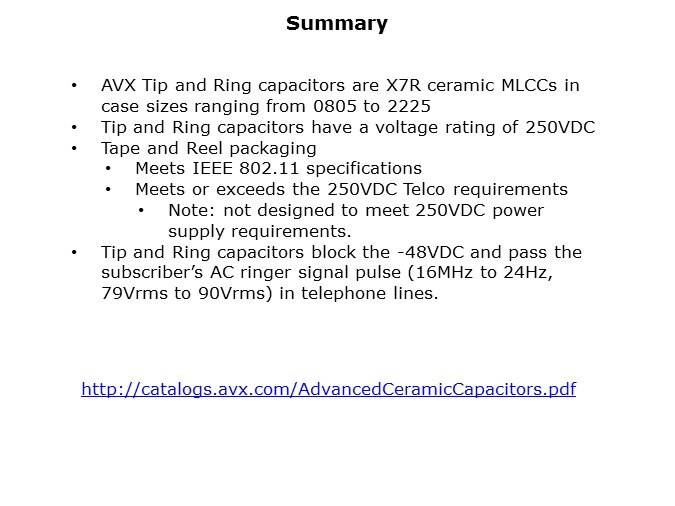

In summary, AVX’s MLCC Tip and Ring capacitors are a very cost effective method to block a standard telecom –48V signal and pass the AC ring pulse. Sometimes referred to as “ring detectors”, these surface mount MLCC filters meet IEEE802.11 as well as 250VDC Telco requirements. In addition to these features, the capacitors are offered in case sizes ranging from 0805 to 2225. For additional information on tip and ring capacitors, please reference the link provided here.
