RMS-DC-Slide7

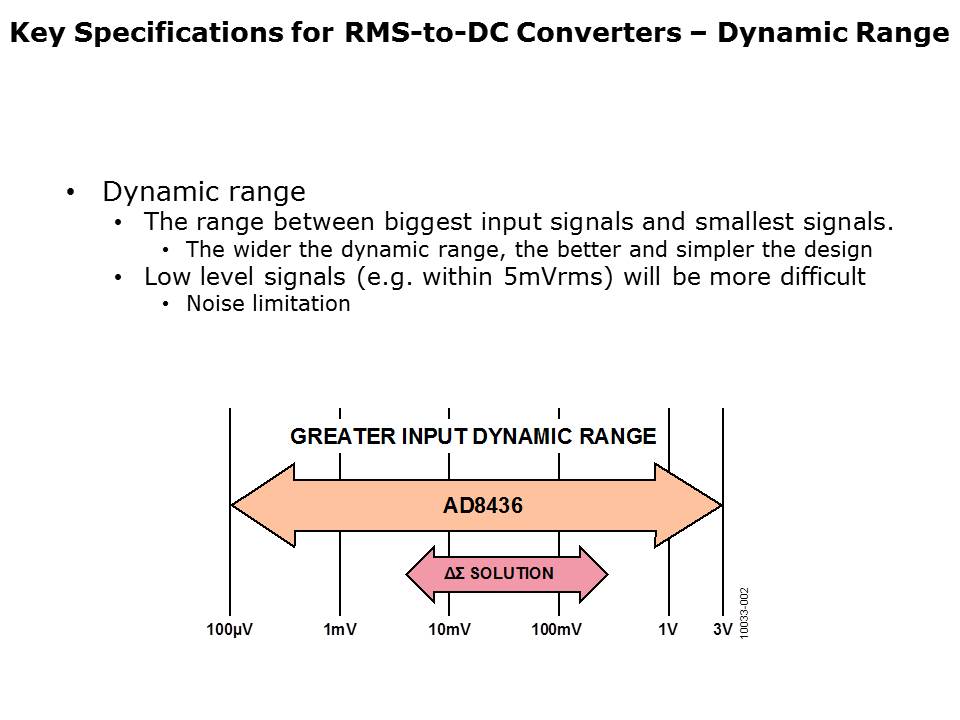

Dynamic range is the span between the largest and smallest input signals. The wider the dynamic range of RMS-to-DC converters, the simpler the system designs can be. This makes larger signals and low level error voltages easier to process. As shown here, the AD8436 has the ability to directly process signals as low as 100µVolts RMS.

PTM Published on: 2012-05-01
