RMS-DC-Slide10

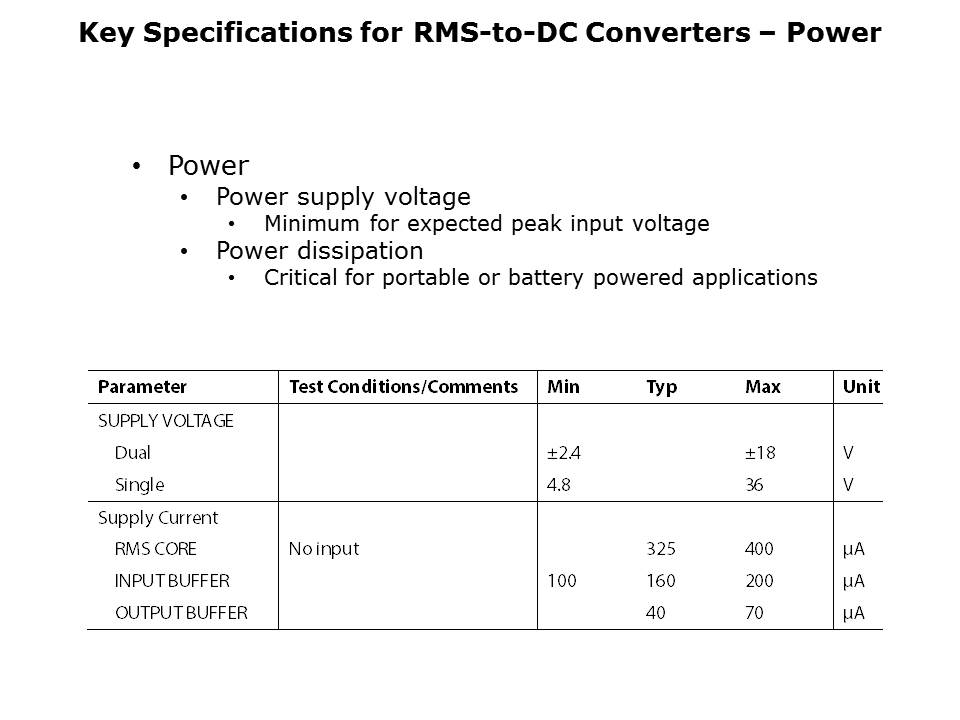

For portable and battery powered systems, power consumption is critical. Since wider input ranges demand a wider power supply, some applications will require an RMS-to-DC converter powered by up to 36 volts. The recent AD8436 for example, has an RMS-to-DC core with 400 µA maximum quiescent current combined with a wide power supply range of up to 36 volts with either single or dual supplies.

PTM Published on: 2012-05-01
