A49xx-Slide3

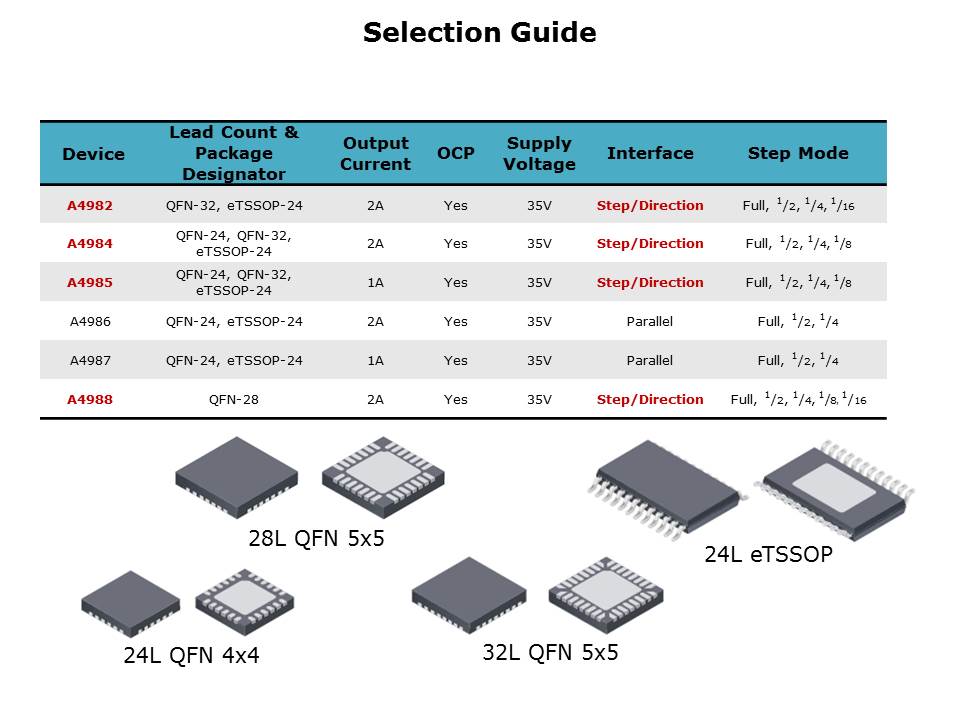

The step and direction interface is the simplest microstepping method available. The built-in translator automatically increments state with a rising edge on the step input and the polarity on the direction pin. Two digital pins are used to select the step mode.
