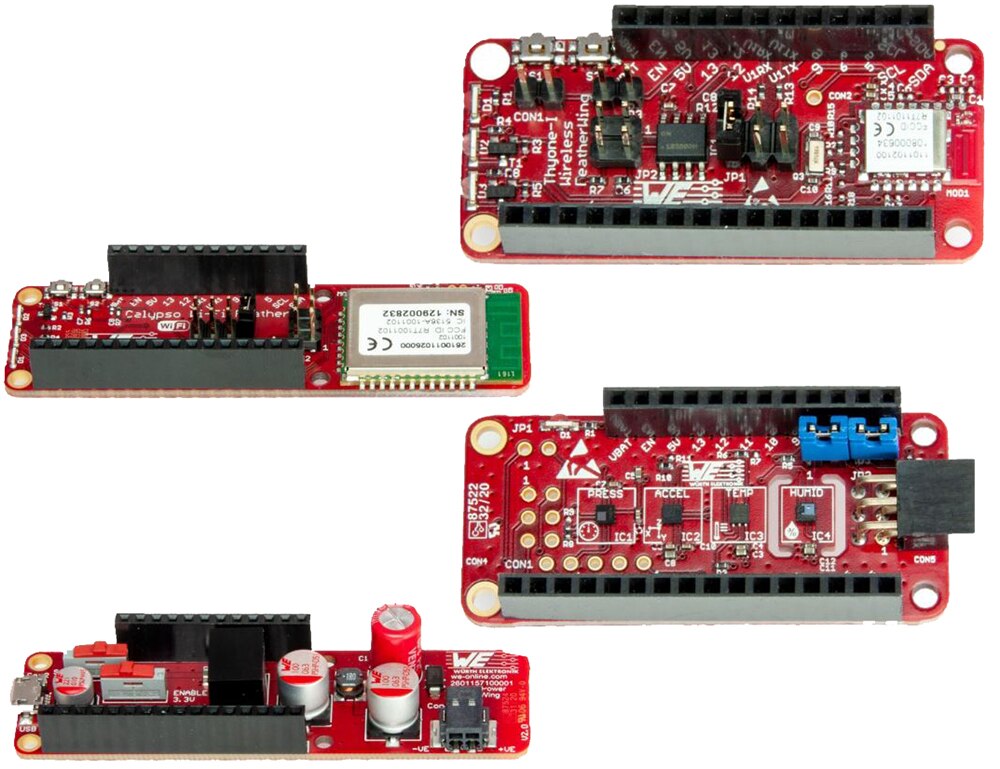

            FeatherWing Development Boards
                    Würth Elektronik's FeatherWing stacking boards add functionality and space for prototyping


Würth Elektronik's FeatherWing development boards are open source and fully compatible with the Feather form factor. Through these development boards, WE brings a range of wireless connectivity modules, sensors, and power modules to the Feather ecosystem.

Adafruit Feather is a complete line of development boards from Adafruit and other developers that can be stacked or used individually. They can be powered by LiPo batteries for on-the-go projects or by micro-USB plugs for stationary use. Feathers are lightweight, portable, and flexible.

FeatherWings are stacking boards that add functionality and space for prototyping. Adafruit Feather is a complete ecosystem of products and an excellent starting point for user projects.

Resources

User Manual: Sensor FeatherWing
User Manual: Thyone-I Wireless FeatherWing
User Manual: Calypso Wi-Fi FeatherWing
Application Notes: ANR023 Calypso Cloud Connectivity
User Manual: MagI³C Power FeatherWing

Features

Sensor FeatherWing
- Temperature (2521020222501), humidity (2525020210001 and 25250202100011), acceleration (2533020201601 and 25330202016011), and absolute pressure sensors (2511020213301 and 25110202133011)
- All the four sensors are connected over the shared I²C bus
- In Adafruit Feather form-factor
- Compatible with QWIIC-connect from Sparkfun
- Easy to expand with WE FeatherWings and hundreds of already existing boards with the Feather and QWIIC form-factor
- Arduino (C/C++) drivers and code examples available on Github
Thyone-I wireless FeatherWing
- Thyone-I proprietary 2.4 GHz RF module (2611011021000)
- Encryption (AES128)
- Mesh network capable
- Integrated security/authentication IC
- Connection to Thyone-I module (2611011021000) or Thyone-I USB stick (2611036021001)
- In Adafruit Feather form-factor
- Easy to expand with:
  - WE FeatherWings
  - Hundreds of existing boards in Feather form
Connect any FeatherWing microcontroller
- Choose any from a range of microcontroller boards from the Adafruit family

Calypso Wi-Fi FeatherWing
- Calypso, 2.4 GHz Wi-Fi connection IEEE 802.11 b/g/n (2610011025000)
- Easy connect to smart devices and servers
- Handling multiple nodes simultaneously
- Energy saving mode to support battery powered applications
- Supports IPv4 and IPv6
- Out of the box implementation of several commonly used network applications like SNTP, DHPv4, DHCPv6, mDNS, HTTP(S), and MQTT
- Direct communication to the cloud
- In Adafruit Feather form-factor
- Easy to expand with WE FeatherWings and hundreds of already existing boards with the Feather form-factor
MagI³C power FeatherWing
- Operating input voltage of 9 V, 12 V, 15 V, 18 V, and 24 V industrial rails
- Maximum 36 V input voltage
- Additional USB connector for 5 V input voltage to select by switch
- Transformation of industrial input voltage to 5 V
- Transformation of 5 V to 3.3 V
- Enable functionality and mode selection available to control and tune performance of MagI³C micromodule

Applications

Sensor FeatherWing
- Development of IoT applications
- Rapid prototyping
- Collection of environmental data
Thyone-I wireless FeatherWing
- Development of IoT applications
- Fast prototyping
- With the Thyone-I FeatherWing, IoT radio applications with a range of up to 300 m can be set up

Calypso Wi-Fi FeatherWing
- Rapid development of IoT applications
- Easy-to-use platform for learning, experimenting, and prototyping cloud connectivity applications
- Collect sensor data, store it in a database, and then visualize the data in graphs
MagI³C power FeatherWing
- Plug compatible 5 V and 3.3 V power supply for whole WE FeatherWing ecosystem
