T3DSO2000 Series Oscilloscopes

Product Highlights > T3DSO2000 Series Oscilloscopes

            T3DSO2000 Series Oscilloscopes

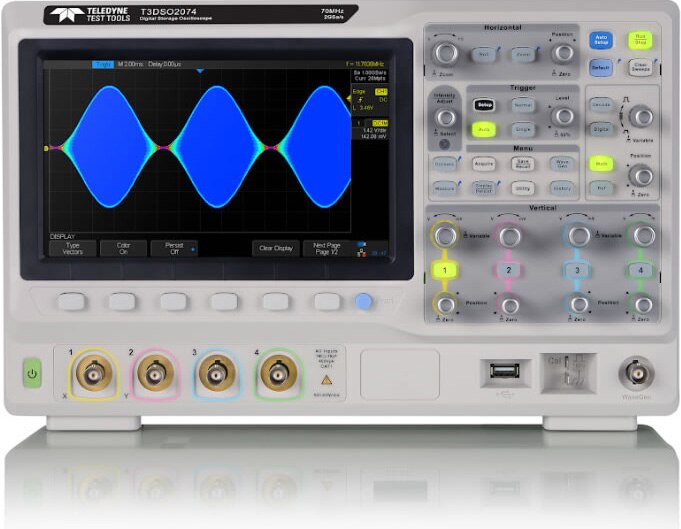

                    Teledyne LeCroy's T3DSO2000 series oscilloscopes with a user-friendly front panel design


Teledyne LeCroy's T3DSO2000 family of oscilloscopes feature two- and four-channel models with analog bandwidth options from 100 MHz to 300 MHz. Each model offers a maximum sample rate of 2 GSa/s and a maximum memory depth of 140 Mpts in half channel mode. The four-channel models incorporate two 2 GSa/s ADCs and two 140 Mpts memory modules. When all channels are enabled, each channel has a sample rate of 1 GSa/s and a standard record length of 70 Mpts. When only a single channel per ADC is active, the maximum sample rate is 2 GSa/s and the maximum record length is 140 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.

Features

Newest generation of high-speed display technology

Waveform capture rate up to 140,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
Supports 256-level intensity grading and color display modes
Record length up to 140 Mpts
Digital trigger system

100 MHz, 200 MHz, and 300 MHz bandwidth models
Two- and four-channel options
History waveform record (history) function, maximum recorded waveform length is 80,000 frames

Real-time sampling rate up to 2 GSa/s
Intelligent trigger: edge, slope, pulse width, window, runt, interval, time out (dropout), pattern, and video
10 types of one-button shortcuts, supports auto setup, default, cursors, measure, roll, history, display/persist, clear sweep, zoom and print segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event
