MCX 50/75 Ohm RF Connectors and Cables

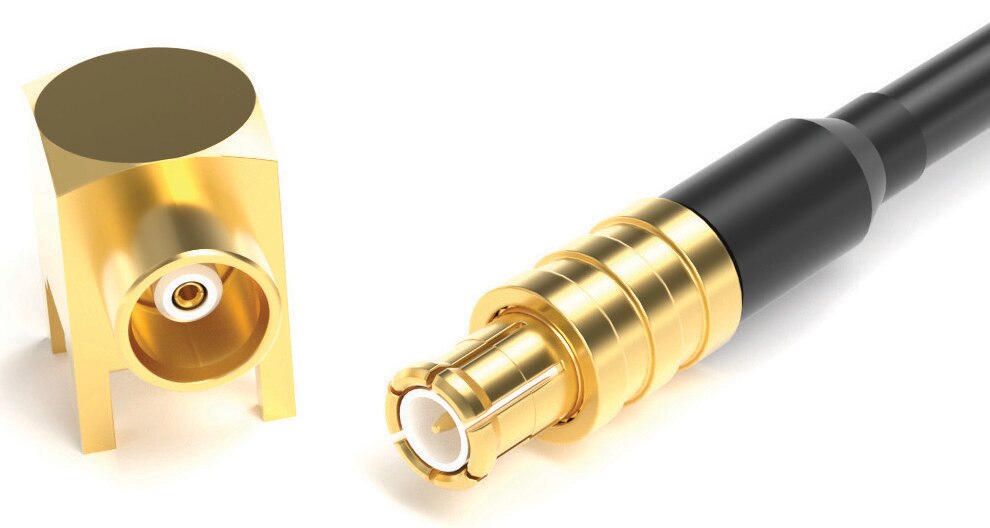

Samtec’s MCX assemblies are available in both vertical and right-angle orientations with multiple cable terminations
Samtec’s MCX 50 ohm and 75 ohm connectors and cable assemblies are 30% smaller than SMBs with performance up to 6 GHz. MCX connectors are available in both vertical and right-angle orientations with multiple cable terminations. Non-magnetic options are also available for medical and aerospace applications.
Features
- MCX:
- 50 ohm impedance
- 30% smaller than SMBs
- Performance: up to 6 GHz
- Vertical and right-angle orientations
- Through-hole, surface mount, edge mount, or mixed technology terminations
- 50 ohm: RF 174 and RF 316 cable terminations
- 50 ohm: Non-magnetic options available for medical and aerospace applications
- 75 ohm: RF 179 cable available
- MCX7:
- 75 ohm impedance
- Optimized for 3G SDI solutions
- Through-hole available in vertical or right-angle orientations
- Surface mount available in vertical orientation
- RF-174:
- VSWR: See RF174 graph
- Impedance: 50 ohm
- Bend radius: 25.4 mm min
- Capacitance: 101 pF/meter
- Operating temperature: -20°C to +80°C
- Frequency range: 6 GHz max (cable and connector dependent)
- Insertion loss: See RF174 graph
- 24 AWG, RG 174 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
- RF-316:
- VSWR: See RF316 graph
- Impedance: 50 ohm
- Bend radius: 12.8 mm min
- Capacitance: 96 pF/meter
- Operating temperature: -50°C to +165°C
- Frequency range: 6 GHz max (cable and connector dependent)
- Insertion loss: See RF316 graph
- 24 AWG, RG 316 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
- RF-179:
- VSWR: See RF179 graph
- Impedance: 75 ohm
- Bend radius: 10.2 mm min
- Capacitance: 64 pF/meter
- Operating temperature: -50°C to +165°C
- Frequency range: 4 GHz max (cable and connector dependent)
- Insertion loss: See RF179 graph
- 28 AWG, RG 179 cable
- Available with BNC, mini BNC, DIN, MCX, or SMB terminations
- Single or double ended
Industries
- 5G networking
- Industrial
- Military/aerospace
- Test connectivity
- Medical
- Broadcast video
- Automotive
- AI/machine learning
- Instrumentation
MCX Connectors
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | MCX-P-C-H-RA-CA2 | CONN MCX PLUG 50 OHM FREE RA | 10 - Immediate | $48.03 | View Details |
|  | MCX-J-P-H-ST-TH1 | CONN MCX JACK STR 50 OHM PCB | 7633 - Immediate 301 - Factory Stock | $26.36 | View Details |
|  | MCX-P-P-H-ST-TH2 | CONN MCX PLUG STR 50 OHM PCB | 378 - Immediate 2182 - Factory Stock | $33.50 | View Details |
|  | MCX-P-C-H-ST-CA2 | 50 OHM MCX JACK OR PLUG, CABLE T | 65 - Immediate | $32.19 | View Details |
|  | MCX-J-P-H-ST-SM1 | CONN MCX JACK STR 50 OHM SMD | 1887 - Immediate 4198 - Factory Stock | $27.75 | View Details |
|  | MCX-J-P-H-RA-TH1 | CONN MCX JACK R/A 50 OHM PCB | 0 - Immediate 100 - Factory Stock | $44.09 | View Details |
| | MCX-J-P-H-ST-SM1-TR | CONN MCX JACK STR 50 OHM SMD | 3096 - Immediate 1965 - Marketplace 1725 - Factory Stock | $39.00 | View Details |
|  | MCX7-P-P-HN-ST-SM1 | CONN MCX PLUG STR 75 OHM SMD | 0 - Immediate 76 - Factory Stock | $47.05 | View Details |
|  | MCX-J-P-H-ST-MT1 | CONN MCX JACK STR 50 OHM SMT | 0 - Immediate 2683 - Factory Stock | $27.75 | View Details |
|  | MCX-P-P-H-RA-TH1 | CONN MCX PLUG R/A 50 OHM PCB | 1477 - Immediate 28 - Factory Stock | $39.08 | View Details |
|  | MCX-J-P-H-RA-SM1 | CONN MCX JACK R/A 50 OHM SMT | 143 - Immediate 3063 - Factory Stock | $42.12 | View Details |
|  | MCX-J-P-H-ST-EM1 | CONN MCX JACK STR 50 OHM EDGEMNT | 2512 - Immediate 1404 - Factory Stock | $22.66 | View Details |
|  | MCX-J-C-H-ST-CA1 | CONN MCX JACK STR 50 OHM SOLDER | 216 - Immediate | $36.54 | View Details |
|  | MCX-P-C-H-RA-CA1 | CONN PLUG MCX 50OHM | 270 - Immediate | $44.75 | View Details |
|  | MCX-P-C-H-ST-CA1 | CONN MCX PLUG STR 50 OHM SOLDER | 2788 - Immediate | $31.69 | View Details |
MCX7 Connectors
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | MCX7-J-P-H-ST-SM1 | CONN MCX JACK STR 75 OHM SMT | 1410 - Immediate 800 - Factory Stock | $26.03 | View Details |
|  | MCX7-J-P-H-ST-TH1 | CONN MCX JACK STR 75 OHM PCB | 2849 - Immediate 631 - Factory Stock | $24.47 | View Details |
|  | MCX7-P-C-H-ST-CA3 | CONN MCX JACK STR 75 OHM SOLDER | 6 - Immediate | $48.53 | View Details |
|  | MCX7-J-P-HN-RA-TH1 | CONN MCX JACK R/A 75 OHM SOLDER | 0 - Immediate 2061 - Factory Stock | $44.67 | View Details |
|  | MCX7-J-P-H-RA-TH1 | CONN MCX JACK R/A 75 OHM SOLDER | 0 - Immediate 581 - Factory Stock | $39.41 | View Details |
|  | MCX7-P-C-H-RA-CA3 | CONN MCX JACK R/A 75 OHM SOLDER | 516 - Immediate | $44.01 | View Details |
|  | MCX7-P-P-H-ST-SM1 | 75 OHM MCX JACK, SURFACE MOUNT | 49 - Immediate 463 - Factory Stock | $50.99 | View Details |
|  | MCX7-P-C-HN-RA-CA3 | 75 OHM MCX JACK,RIGHT ANGLE | 0 - Immediate | See Page for Pricing | View Details |
RF-174 Cables
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | RF174-02RP1-05BJ2-0305 | COAX CBL MCX TO TNC 12" | 25 - Immediate | $218.66 | View Details |
|  | RF174-04SP3-02SP1-0305 | COAX CBL BNC TO MCX 12" | 9 - Immediate | $156.26 | View Details |
|  | RF174-02SP1-02RP1-0305 | COAX CBL MCX TO MCX 12" | 25 - Immediate | $141.15 | View Details |
|  | RF174-02RP1-06BJ2-0152 | COAX CBL MCX TO N-TYPE 5.9" | 9 - Immediate | $286.97 | View Details |
|  | RF174-02RP1-02RP1-0152 | COAX CBL MCX TO MCX 5.9" | 6 - Immediate | $154.86 | View Details |
|  | RF174-04SP3-02SP1-0915 | COAX CBL BNC TO MCX 36" | 0 - Immediate | $194.27 | View Details |
|  | RF174-02SP1-02RP1-0152 | COAX CBL MCX TO MCX 5.9" | 22 - Immediate | $154.53 | View Details |
|  | RF174-02RP1-05BJ3-0152 | COAX CBL MCX TO TNC 5.9" | 12 - Immediate | $194.19 | View Details |
|  | RF174-02RP1-06BJ2-0305 | COAX CBL MCX TO N-TYPE 12" | 34 - Immediate | $253.06 | View Details |
|  | RF174-02RP1-02RP1-0305 | COAX CBL MCX TO MCX 12" | 0 - Immediate | $141.31 | View Details |
|  | RF174-02RP1-04BJ3-0152 | COAX CBL BNC TO MCX 5.9" | 18 - Immediate | $163.56 | View Details |
|  | RF174-02RP1-04BJ3-0305 | COAX CBL BNC TO MCX 12" | 14 - Immediate | $203.63 | View Details |
|  | RF174-02RP1-05BJ3-0305 | COAX CBL MCX TO TNC 12" | 7 - Immediate | $174.73 | View Details |
|  | RF174-02RP1-05BJ2-0152 | COAX CBL MCX TO TNC 5.9" | 23 - Immediate | $207.41 | View Details |
 | RF174-02SP1-02RP1-0350 | COAX CBL MCX TO MCX 13.7" | 0 - Immediate | See Page for Pricing | View Details |
RF-316 Cables
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | RF316-04SP3-02SP1-0500 | COAX CBL BNC TO MCX 19.6" | 142 - Immediate | $151.82 | View Details |
|  | RF316-02SP1-02RP1-0152 | COAX CBL MCX TO MCX 5.9" | 12 - Immediate | $154.53 | View Details |
|  | RF316-02RP1-05BJ2-0305 | COAX CBL MCX TO TNC 12" | 0 - Immediate | $185.90 | View Details |
|  | RF316-02RP1-06BJ2-0305 | COAX CBL MCX TO N-TYPE 12" | 15 - Immediate | $253.06 | View Details |
|  | RF316-02RP1-02RP1-0305 | COAX CBL MCX TO MCX 12" | 19 - Immediate | $166.27 | View Details |
|  | RF316-02RP1-05BJ3-0305 | COAX CBL MCX TO TNC 12" | 25 - Immediate | $205.52 | View Details |
|  | RF316-02RP1-02RP1-0152 | COAX CBL MCX TO MCX 5.9" | 0 - Immediate | $131.62 | View Details |
|  | RF316-02RP1-04BJ3-0305 | COAX CBL BNC TO MCX 12" | 3 - Immediate | $203.63 | View Details |
|  | RF316-02RP1-05BJ3-0152 | COAX CBL MCX TO TNC 5.9" | 13 - Immediate | $194.19 | View Details |
|  | RF316-02RP1-06BJ2-0152 | COAX CBL MCX TO N-TYPE 5.9" | 21 - Immediate | $286.97 | View Details |
|  | RF316-02RP1-05BJ2-0152 | COAX CBL MCX TO TNC 5.9" | 23 - Immediate | $207.41 | View Details |
|  | RF316-04SP3-02SP1-0915 | COAX CBL BNC TO MCX 36" | 95 - Immediate | $177.69 | View Details |
| | RF316-02SP1-02RP1-0305 | COAX CBL MCX TO MCX 12" | 104 - Immediate | $141.15 | View Details |
|  | RF316-02RP1-04BJ3-0152 | COAX CBL BNC TO MCX 5.9" | 8 - Immediate | $192.38 | View Details |
|  | RF316-04SP3-02SP1-0305 | COAX CBL BNC TO MCX 12" | 23 - Immediate | $156.26 | View Details |
| | RF316-02SP1-02RP1-0100 | COAX CBL MCX TO MCX 3.9" | 0 - Immediate | See Page for Pricing | View Details |
RF-179 Cables
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | RF179-72SP1-74SP3-1000 | COAX CBL BNC TO MCX 3.3' | 25 - Immediate | $240.25 | View Details |
|  | RF179-72SP1-74SP3-0600 | COAX CBL BNC TO MCX 23.6" | 41 - Immediate | $201.33 | View Details |
|  | RF179-72RP1-74SP3-0150 | COAX CBL BNC TO MCX 5.9" | 18 - Immediate | $195.26 | View Details |
| | RF179-74SP3-72RP2-0254 | COAX CBL BNC TO MCX 10" | 7 - Immediate | $146.89 | View Details |
|  | RF179-72SP1-74SP3-1800 | COAX CBL BNC TO MCX 5.9' | 198 - Immediate | $281.88 | View Details |
| | RF179-72RP1-SING-1000 | COAX CBL MCX TO CABLE 3.3' | 0 - Immediate | See Page for Pricing | View Details |
|  | RF179-72RP1-SING-0300 | COAX CBL MCX TO CABLE 11.8" | 0 - Immediate | See Page for Pricing | View Details |
| | RF179-72SP1-72SP1-0100 | COAX CBL MCX TO MCX 3.9" | 0 - Immediate | See Page for Pricing | View Details |
| | RF179-72SP2-SING-0140 | COAX CBL MCX TO CABLE 5.5" | 0 - Immediate | See Page for Pricing | View Details |
