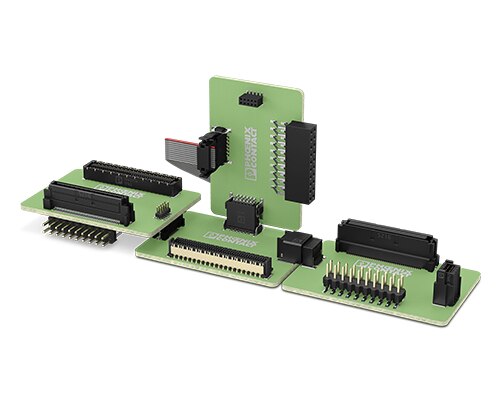

FP Series High EMC Protection with 0.8mm

With its double-sided contact system, the high-position FINEPITCH series offers the ideal solution for industrial-grade PCB connections. You have maximum flexibility when it comes to arranging the PCBs in your device. The wide range of FINEPITCH products provides solutions for space-saving signal and data transmission. In addition, the shielded versions offer excellent EMC properties.

• Shielded board-to-board connectors in the FP 0.8 series are the perfect solution for PCB connections with industrial capability. The horizontal and vertical versions enable highly flexible device design, and the EMC shielding makes them ideal for high-position signal and data transmission.
• Features
• Reliable mechanical and electrical connections thanks to the double-sided contact system
• Flexible device design: various numbers of positions, designs, and stack heights with high wipe lengths
• Robustness: ScaleX technology for high tolerance compensation and protection of contacts
• Data rates up to 16 Gbps: With closed shielding concept for high EMC protection
• Advantages
• 12- to 80-pos.
• Stack heights: 6 mm … 18 mm
• Data rates up to 16 Gbps
• EMC shielding
• Currents up to 1.7 A
• Insertion cycles: 500
• Test voltage: 500 V AC

FR 1.27 Series

High speed data transmission and time savings in the development process make a real difference. With the FR series board-to-board connectors with a pitch of 1.27 mm, Phoenix Contact provides data rates of up 28 Gbps and customer specific simulations for data integrity.

• Shielded board-to-board connectors in the FP 0.8 series are the perfect solution for PCB connections with industrial capability. The horizontal and vertical versions enable highly flexible device design, and the EMC shielding makes them ideal for high-position signal and data transmission.
• Features and Advantages
• Data transmission up to 28 Gbps
• Position sizes ranging from 6 to 100 offer maximum design flexibility.
• Currents up to 2.3 A and long-term stable signal transmission from the gold-plated, double-sided contact system.

FS 0.635 Series

Implement space saving PCB connections with the compact FS series board-to-board connectors with 0.635 mm pitch. High speed data transmission rates up to 30 Gbps and various numbers of positions and stack heights enable particularly flexible device design.

• Shielded board-to-board connectors in the FP 0.8 series are the perfect solution for PCB connections with industrial capability. The horizontal and vertical versions enable highly flexible device design, and the EMC shielding makes them ideal for high-position signal and data transmission.
• Features and Advantages
• Various stack heights ranging from 6 to 16.6 mm give you a high degree of flexibility for your device design.
• Integrated keyways allow for easy and reliable connector assembly.
• Data rates up to 30 Gbps.

FQ Series 1.27mm and 2.54mm pitch

Designed for universal use, FQ series board-to-board connectors with 2.54 mm pitch provide cost-effective solutions for PCB connections inside the device. Various SMD male and female strips can be used to implement mezzanine, coplanar, and mother-daughter connections.

• Features
• Reliable mechanical and electrical connections thanks to the double-sided contact system
• Stacked, coplanar, or orthogonal PCB connections for high flexibility in the device
• Designed for integration into the SMT soldering process
• Simple and cost-optimized design
• Suitable for a wide range of applications
• Advantages
• 10- to 80-pos.
• Stack heights: 13.6 mm … 14.9 mm
• Currents up to 3 A
• Insertion cycles: 100
• Test voltage: 500 V AC
