Easy-to-Use Switch Mode Power Supply (SMPS) Matrix

Anything that plugs into a wall, from a coffee pot to a blade server, needs a Switch Mode Power Supply (SMPS) designed to the applications power requirements. These power requirements can range from a 10’s of watts, to kWs. So, how do you design the right power supply for the specific application? Where do you start?

Start with onsemi intelligent power.

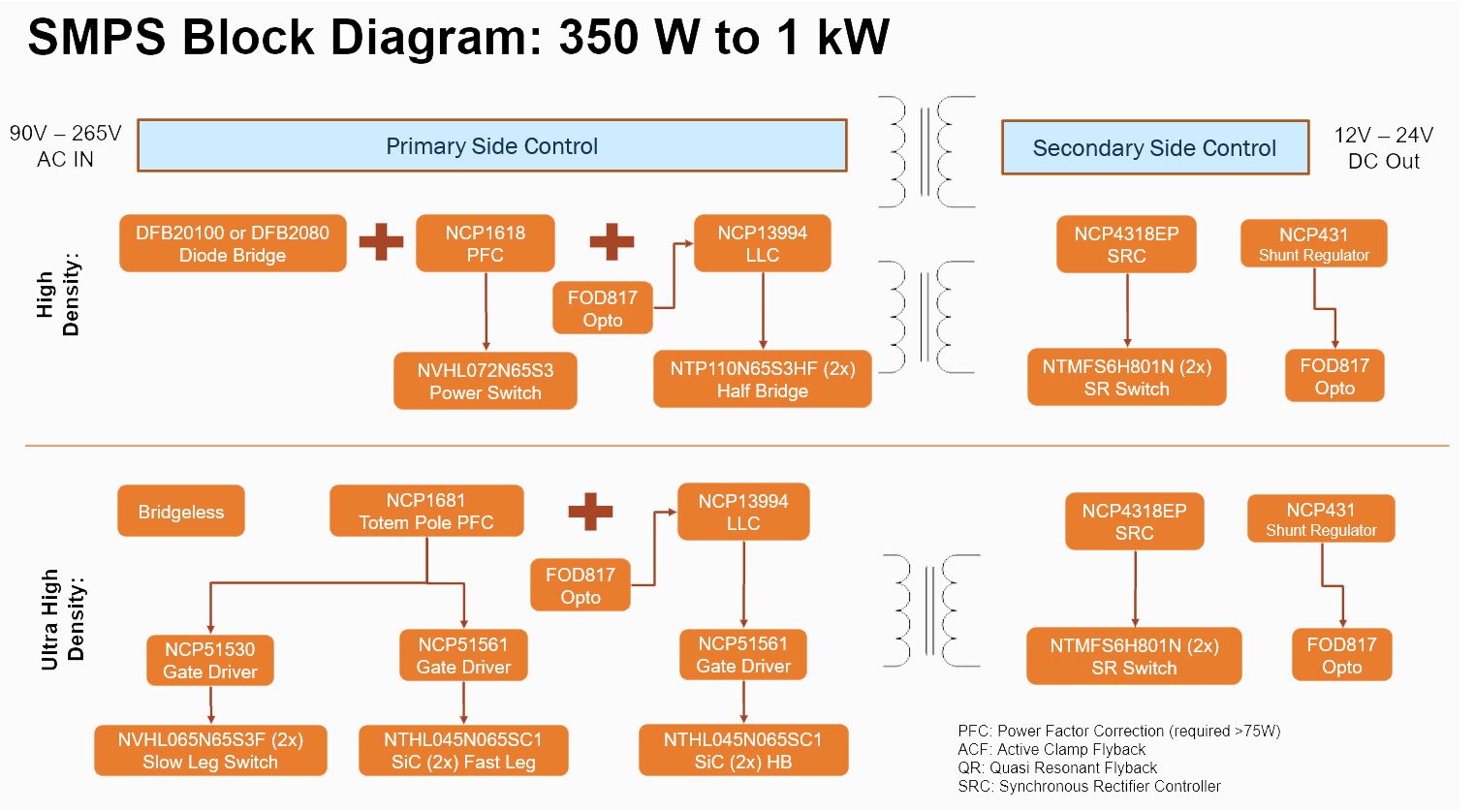

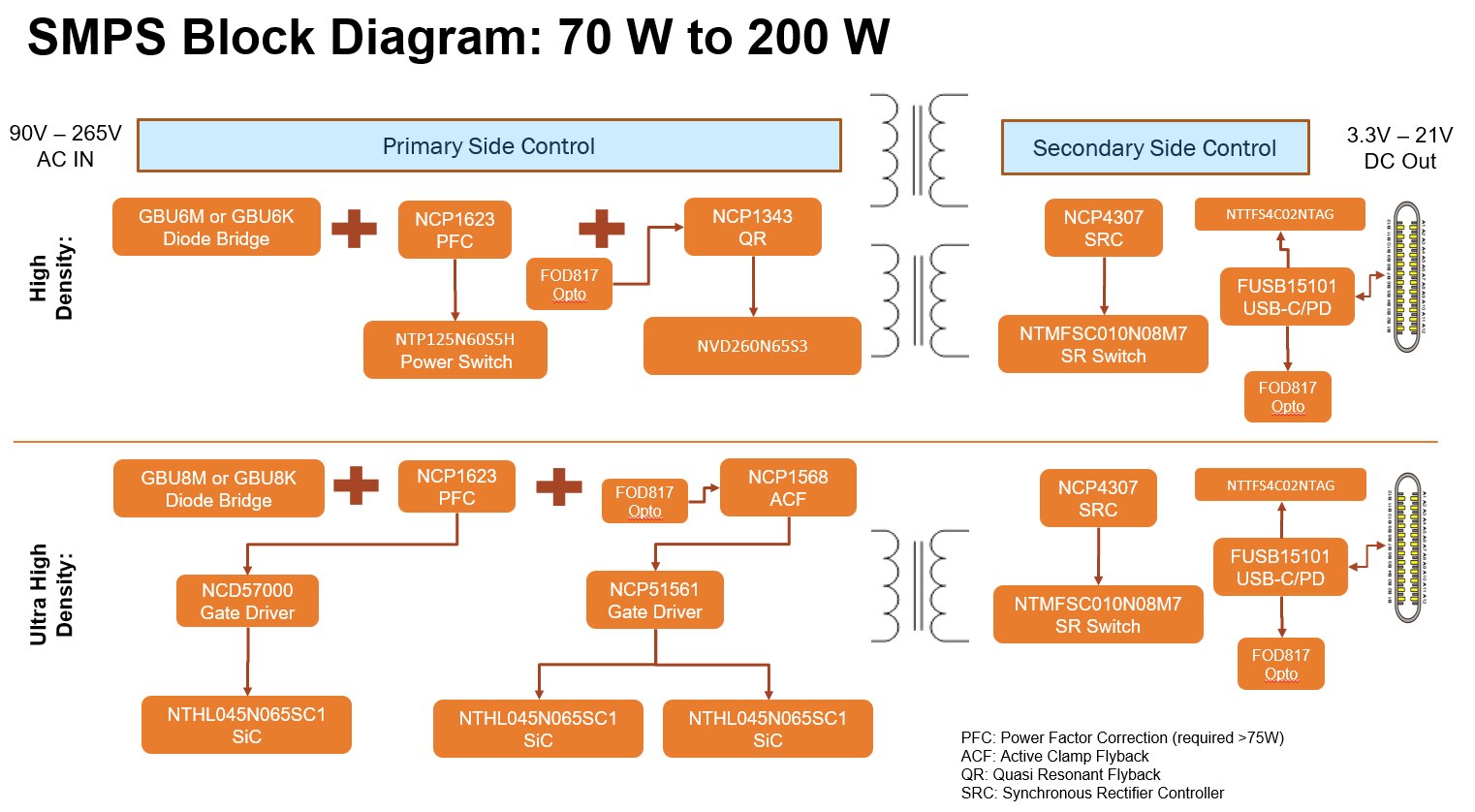

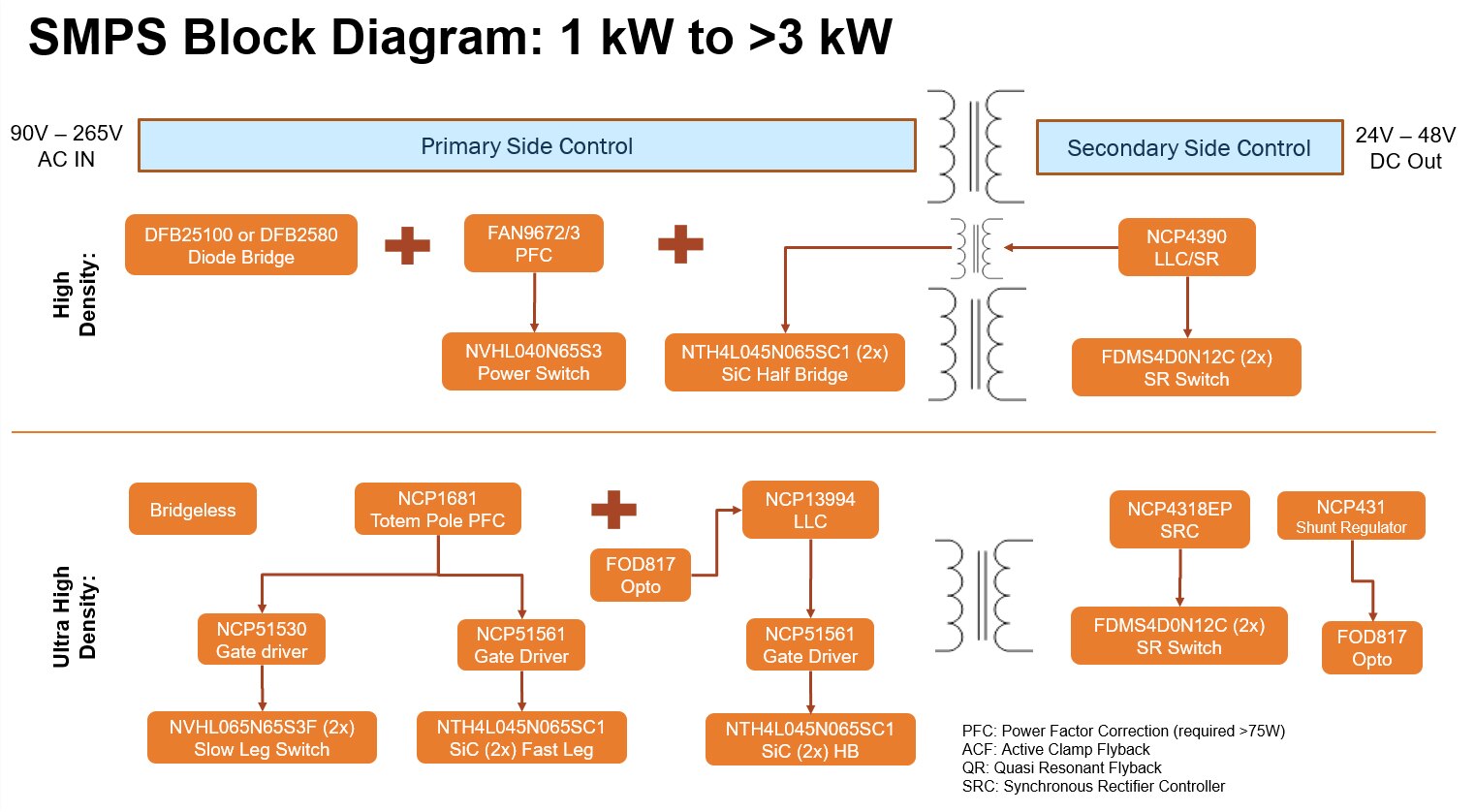

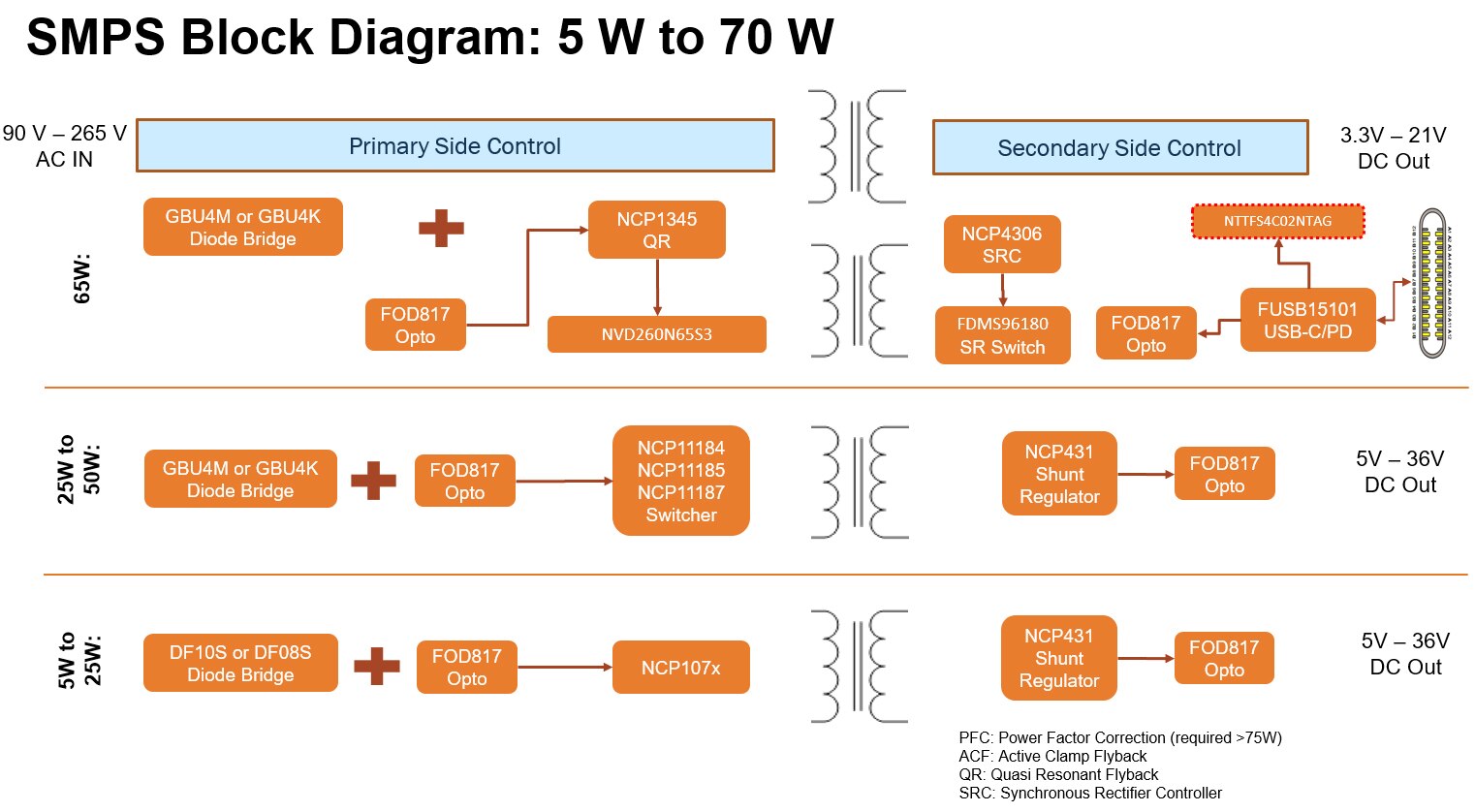

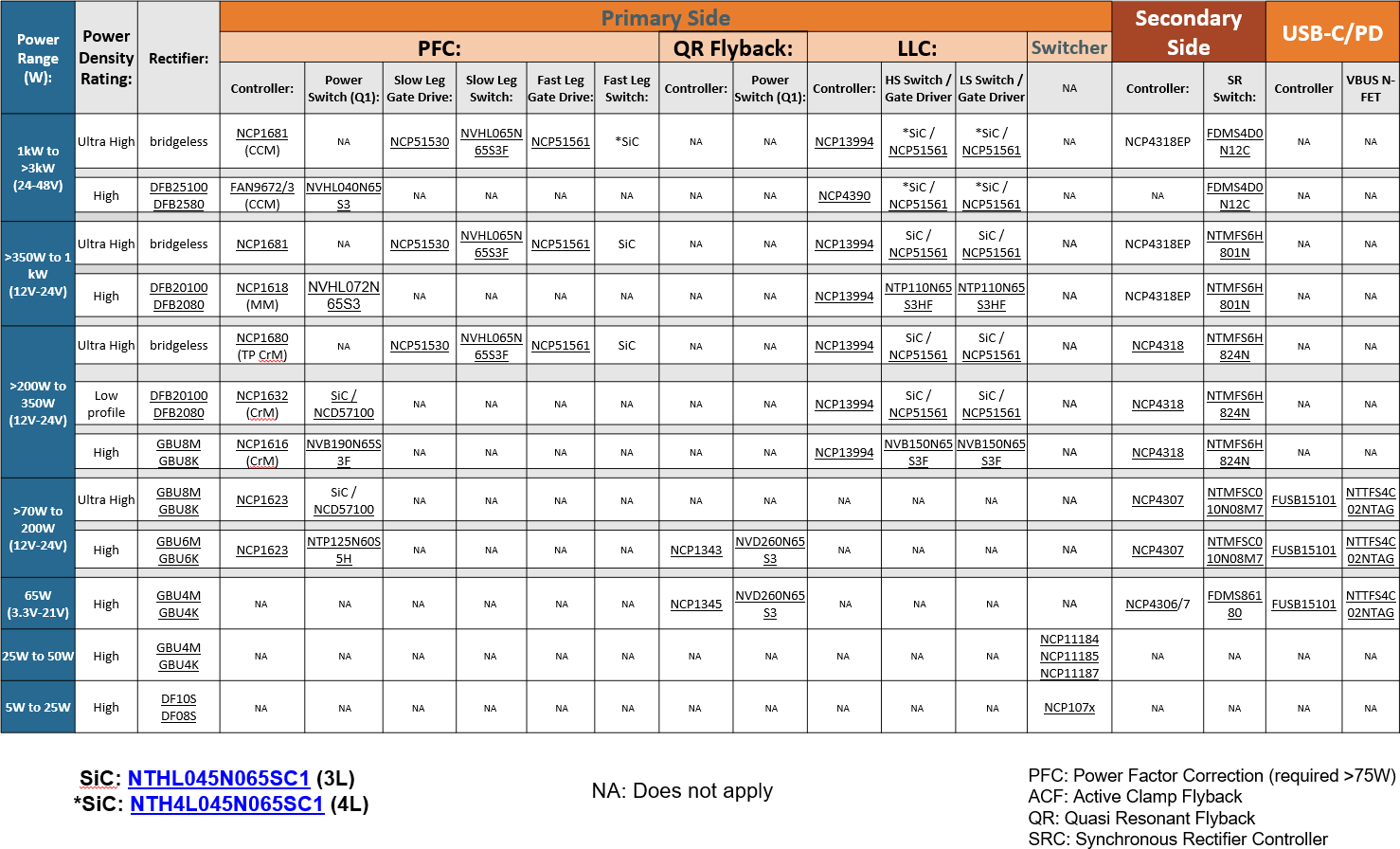

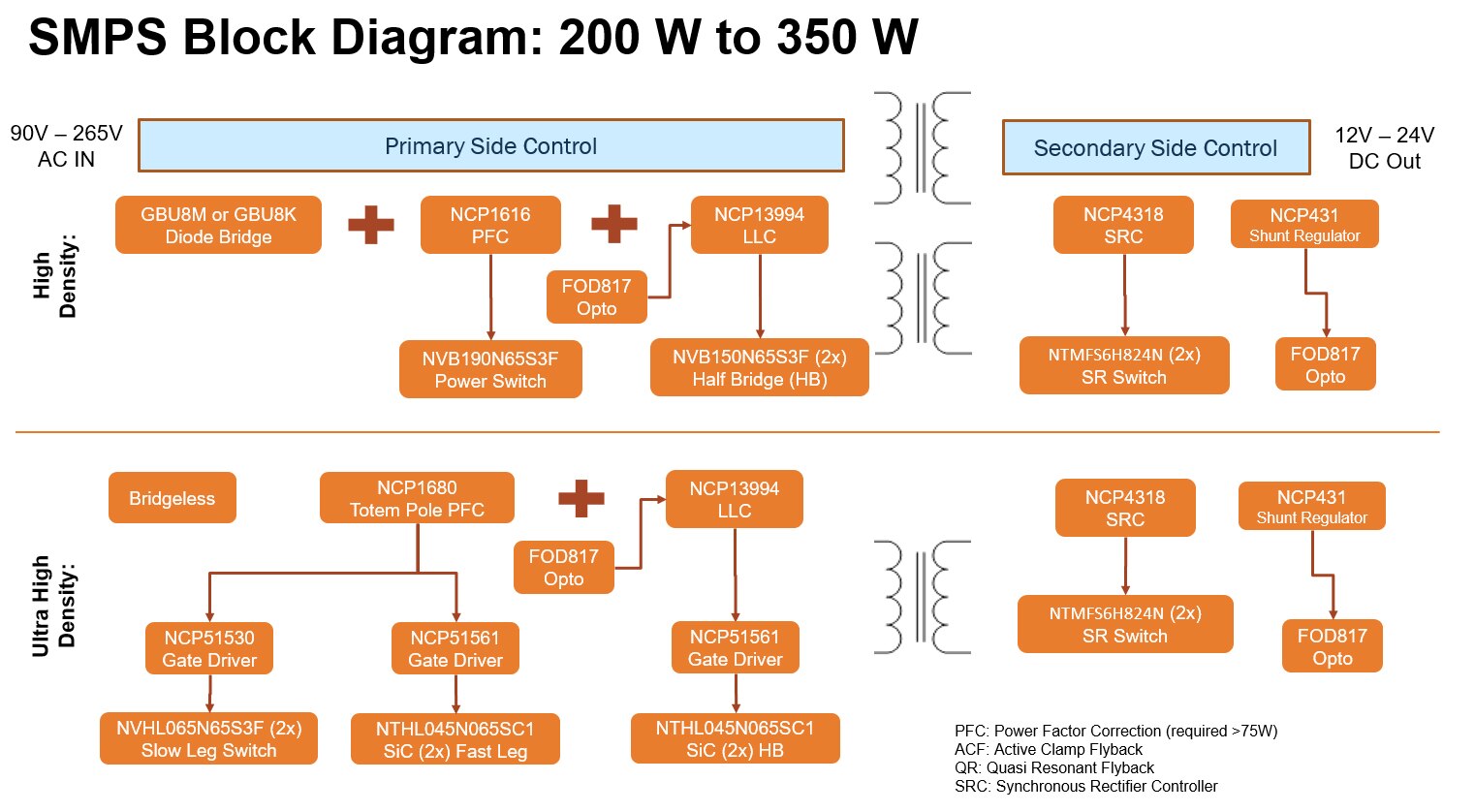

onsemi's SMPS Matrix is a general starting point for SMPS design organized by application power, including controllers gate drivers and MOSFETs. Product selection from this easy-to-use guide can change based on customer application specifics. This matrix assumes typical VOUTs for the applications identified.
