XF2M Series

View DetailsXF2M Series - 0.5 mm Pitch FPC/FFC Connector

Connectors are delivered with the rotary latch open.

Compared with traditional rotary lock connectors, the XF2M FPC Connectors eliminate the need to unlock the latch, therefore improving assembly work productivity.

The rotary latch is independent of the FPC socket.

High reliability: A mounted FPC will not come off even if excess force is applied to it.

Dual Contact

The contacts make contact from both sides, so there is no need to distinguish between the upper and lower contacts when connecting upper and lower PCBs.

View DetailsXF3M Series - 0.5 mm Pitch, 1.0 mm Pitch FPC/FFC Connector

Connectors are delivered with the rotary latch open.

Compared with traditional rotary lock connectors, the XF3M FPC Connectors eliminate the need to unlock the latch, therefore improving assembly work productivity.

Key Features

• Rotary backlock mechanism
• Dual contact structure
• Applicable FPC/FFC thickness
  t=0.30±0.05mm
• Ni-barrier: High resistance to solder creep (Gold plated)
• Available in 6 to the new 80 pin count configurations with 0.5 mm pitch
• Available in 4 to 30 pin count configurations in 1.0 mm pitch

Advantages

Point-1: Easy FPC/FFC insertion

FPC/FFC can be inserted from slanting top direction.

Point-2: Easy slider operation

Positive click feeling for lock operation.

Point-3: High FPC/FFC retention force

High FPC/FFC retention force with dual-contacts structure.

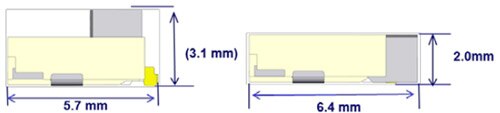

Dimensions

<Slider Opened Condition>

<Slider Locked Condition>

Target Applications

• Non-mobile applications
• All AOT markets

Display Connection	For Board to Board
Between Display and PCB	Between PCB and PCB



View DetailsBoard-to-Wire Connectors

Industry-Standard Circuit Board Connectors Conform to MIL Standards with Improved Design

• Omron’s unique XG4M-U structure positions the locking mechanism on the socket’s strain relief, offering space saving and easy operation
• Space-saving Box-type Plugs (XG4C) available
• IDC Plugs (XG4E) can be used for relaying
• An endless number of combinations can be made using the XG5 IDC Connectors for discrete wires, XG8 Original Plugs, and the XG2 IDC Connectors for PCBs
• The Original Plugs (XG8) and the Box-type Plugs (XG4C) can be locked using Lock Levers
• Conforms to MIL standards (MIL-C-83503)

XG4M-U Advantages

Unique Omron Structure

Locking Mechanism on strain relief for Socket

Easy Connection/Disconnection	Improve lock level operability

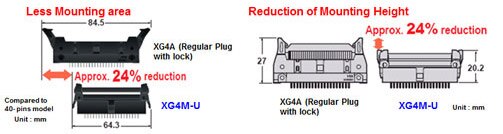

Offers a space saving as compared with regular "Plug with Lock" type

View DetailsM12

Smartclick™ connectors that reduce installation work

Omron's XS5 series of IP67-rated circular industrial connectors feature a one-touch bayonet locking system enabling connection in just 1/8th turn. The integrity of the circuit connection is far superior to traditional screw-style connectors due to an audible click indicating complete insertion. They are available in plug or socket versions and are ideal for industrial applications.

Other end-system assembly advantages include reduced connection time and easier "blind mating" as situations present themselves. The connectors also provide optimum seal performance when compared to screw styles because the chance of over or under tightening seals has been eliminated. Improved shock/vibration resistance combined with a connector that will not unscrew ensures the connection, thus reducing costly equipment downtime.

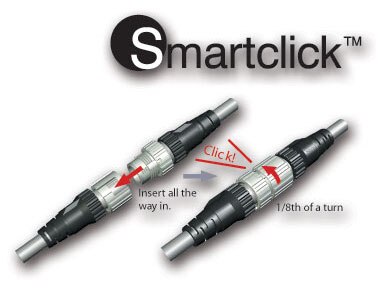

XS5 M12 Smartclick

One-touch locking system has advantages

1. Satisfaction of perfect connection with only 1/8th of a turn

Bayonet locking mechanism

It shows you perfect connection by SOUND and CLICK FEELING Full compatibility with screw-locking mechanism Same degree of protection (IP67 as other screw-locking models

2. Save time for wiring work

It will decrease and save time for installation build and maintenance Save 70% of connector connection time than current connector

NEW! Industrial Connector – M12 Circular

XS5 Series Field-Attachable IDC

• Coping with wide range cable diameter by one part number (conductor size: AWG26-18,Outer diameter：φ3～8 mm〕
• No need to torque control for IDC cable connecting
• Smartclick system can allow fastest connection one-eighth turn
• Protection degree: IP67, M12 connector compatible

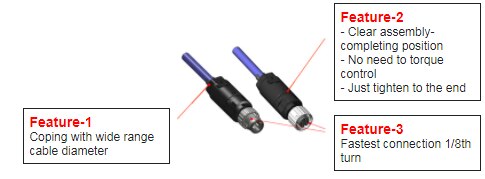

		Feature-2 - Clear assembly-completing position - No need to torque control - Just tighten to the end
Feature-1 Coping with wide range cable diameter		Feature-3 Fastest connection 1/8th turn

Part number : XS5C-D418 (Socket) and XS5G-D418 (Plug)

View DetailsIndustrial Ethernet Connectors

Support for Ethernet/IP, Ether-CAT, and Other Popular Networks Based on Ethernet

A lineup of Tough RJ45 Connectors for use outside of panels and Environment-resistance Connectors with IP67 protection (M12)

RJ45 Assembly Connectors are available for easy wiring onsite.

Smartclick Connectors are used on Environment-resistance Connectors (M12) and provide compatibility with traditional screw connectors for one-touch (1/8 turn) connection.

AWG22 cables that are suitable for wiring outside of panels are used for all models.

XS5T/XS6 Ethernet IP Connector

Easy to use, Reliable connection & High cable pulling force

Features

1. M12 has Smartclick Features
   • Bayonet locking mechanism backwards compatibility
2. Shield capability on M12 side
3. Water proof capability on M12 side: IP67 Rating
4. Ethernet connector (XS6)
   • Robust RJ45 connector for industrial use


New Addition on Ethernet Connector Line Ups

Panel-Mount Socket with PCB terminal

Key Features

M12 D-Coding, IP67 Rating	Smartclick (1/8th turn lock) to mate with Ethernet M12
Shield structure To cancel noises (Anchor→ground terminal → PCB)

View DetailsXM7 Series - USB Connectors

Existing Line Up : USB1.1 / 2.0 (Type A and B)

Type A			Type B
DIP Straight: XM7A-0441	DIP R/A: XM7A-0442	DIP R/A: XM7A-0442-A	DIP R/A: XM7B-0442

New Release

Mini-USB (Type B) - Coming Soon!

Type A
DIP: XM7D-0512	DIP: XM7D-0514

USB 3.0 - Coming Soon!

View DetailsNew Slim D-sub Connector

XM3B (Socket) & XM3C (Plug)

Decrease in mounting areas on board of 33%

1. Depth size: 8.4 mm （D-sub standard 12.6 mm
2. Right angle/DIP terminals
3. Board thickness: 1.6 mm or 1.0 mm
4. Screw: mm type (M2.6*0.45）, Inch type（#4-40 UNC）

33% Reduction

[Slim Type] XM3C-LS/XM3B-LS (Plug) (Socket)	[Standard Type] XM2C-L/XM3B-L (Plug) (Socket)

Product Variation - Connectors

		PCB Mount (DIP Terminal)		Cable Assy (Solder Cup)	High Density - 15 Pins (DIP Terminal)
Plug	Premium 9, 15, 25, 37 Pins	Straight	Angled	---	Straight	Angled
			XM3C	XM3A	---	---
	Economy 9, 15, 25 Pins	XM2E-L	XM2C-L	---	---	XM4K
Sockets	Premium 9, 15, 25, 37 Pins	XM3F	XM3B	XM3D	---	---
	Economy 9, 15, 25 Pins	XM2F-L	XM3B-L	---	XM4L	XM4L

Product Variation - Hood Covers

Straight	Angled	With ESD Protection
XM2S-xx1x	XM2S-092x XM2S-252x	XM2S-0911-E



Space saving on right-angle hood covers	Non-conductive surface protects against ESD; internal grounding provides EMI protection
