D41 Series Safety Door Switches

Product Highlights > D41 Series Safety Door Switches

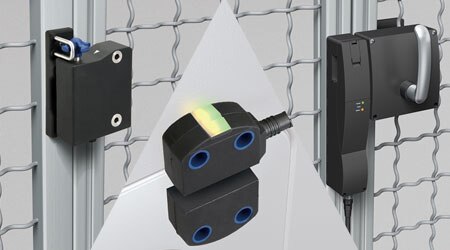

            D41 Series Safety Door Switches
                    Omron’s door switches with a hygienic design have smooth surfaces and no key-hole, preventing water, food, and dust accumulation


Omron’s D41 series high-coded, RFID-monitored safety door switches minimize defeat possibilities and ensure the highest level of protection according to ISO 14119. Because the series includes non-contact and guard-locking types, it helps to reduce the cost of ownership with a single product family that covers all needs.

The D41 series offers a flexible option for developing safety solutions that protect operators requiring partial or full-body access to machinery in various applications across different industries, including robotic applications and safety systems in harsh environments.

All models offer quick automatic pairing that helps reduce commissioning time, along with three-color LED indicators and diagnostic outputs that ensure friendly troubleshooting.

Features

Minimizes defeat possibilities that could hamper worker protection
Low total cost of ownership thanks to a simpler design and identical mounting for right- and left-hinged doors
Easy installation and troubleshooting thanks to automatic pairing, three-color LED indicators, and diagnostic output
IP69 housing that prevents water, dust, and food accumulation and ECOLAB-certified detergent resistance
Ability to simultaneously perform quick and automatic pairing for multiple door switches connected in series
Type 4 high-coded door switch, RFID
Easy and quick automatic pairing
Individual coding, single or multiple teaching types
Easily mounted to standard aluminum profile systems
Three LED indicators and aux. output for smart diagnostics
Protection classes IP66, IP67, and IP69

Power to lock or power to unlock versions available
Up to 31 units in series
D41D series
- Three different types of actuators, including miniature and flat, for easy design and installation
- LED indicators visible in every position
D41L series
- Can be used as an end stop for sliding door applications
- Emergency exit
- Hygienic design prevents water and foreign material to collect and ECOLAB certified
D41G series
- Ergonomic actuator for easy use
- Emergency exit, emergency release, or manual release
- Large actuator tolerances and easy latching force adjustment

Applications

Conveyor systems
Palletizers/de-palletizers
Metal stamping presses
Food processing machines
Packaging machines

Robot cells
Assembly lines
Body transfer lines
Wood processing machines
Machine tending
