Ohmite

PCS Series Chip Resistors

Ohmite's PCS series chip resistors have low resistance values with high precision current sensing

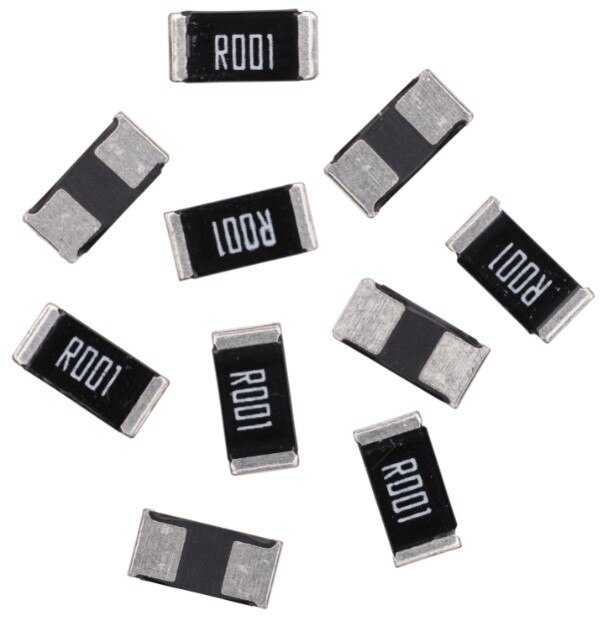

Image of Ohmite's PCS Series Chip ResistorsOhmite's PCS series is a high-quality chip resistor that has AEC-Q200 qualified part numbers available. Available in three sizes (1206, 2512, and 2728), the PCS series offers low resistance values to 0.50 mΩ. This product provides users with high precision current sensing and voltage division. It also offers low TCR to ±50 ppm, excellent long-term stability, and RoHS compliance.

Features
  • Low resistance to 0.5 mΩ
  • Low TCR to ±50 ppm
  • Excellent long-term stability
  • RoHS compliant and halogen-free
  • Lead-free
  • High precision current sensing and voltage division
  • AEC-Q200 qualified available

PCS Series Chip Resistors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
1W 0.003 OHMS 1% 1206PCS1206FR0030ET1W 0.003 OHMS 1% 12066089 - Immediate$4.84View Details
1W 0.010 OHMS 0.5% 1206PCS1206DR0100ET1W 0.010 OHMS 0.5% 12066581 - Immediate$6.57View Details
2W 0.010 OHMS 0.5% 2512PCS2512DR0100ET2W 0.010 OHMS 0.5% 25128805 - Immediate$7.39View Details
2W 0.100 OHMS 0.5% 2512PCS2512DR1000ET2W 0.100 OHMS 0.5% 25121051 - Immediate$8.05View Details
1W 0.001 OHMS 1% 1206PCS1206FR0010ET1W 0.001 OHMS 1% 120621963 - Immediate$5.42View Details
Published: 2020-02-13
