SU Series Common Mode Chokes

KEMET's standard type AC line filters are offered in a wide variety of sizes and specifications

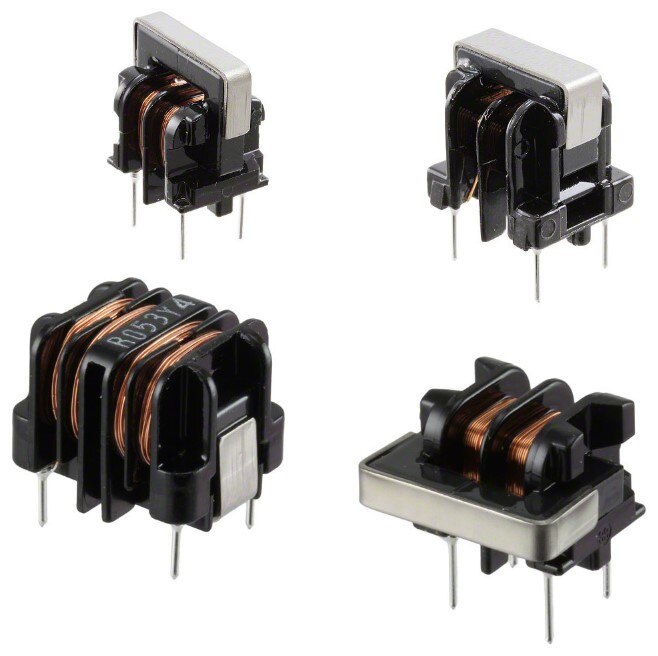

Image of KEMET's SU Series Common Mode ChokesThe KEMET SU coils, low current type AC line filters, are offered in a wide variety of sizes and specifications. These gear type coils are designed with KEMET's proprietary ferrite cores and are useful in various noise countermeasure fields. They are UU assembled with small size core dimensions and small current (0.1 A to 4 A) and are available in vertical and horizontal assembly. Typical applications include audio-visual equipment, office automation equipment, digital appliances, and power supply devices.

Features and Benefits
  • UU core
  • Proprietary ferrite material and equivalents
  • Wide variety of sizes and specifications
  • Inductances up to 37 mH
  • Rated current up to 4 A
  • Operating temperature range from -25°C to +120°C
  • UL94 V-0 flame retardant rated base and bobbin

SU Series Common Mode Chokes

ImageManufacturer Part NumberDescriptionDC Resistance (DCR) (Max)Voltage Rating - DCAvailable QuantityPriceView Details
CMC 10MH 200MA 2LN THSU9VF-02100CMC 10MH 200MA 2LN TH4Ohm-7499 - Immediate$6.50View Details
CMC 25MH 100MA 2LN THSU9VF-01250CMC 25MH 100MA 2LN TH9Ohm-1216 - Immediate$7.90View Details
CMC 25MH 400MA 2LN THSU10VFC-R04250CMC 25MH 400MA 2LN TH2.8Ohm-313 - Immediate$12.51View Details
CMC 10UH 1A 2LN THSU10VD-10010CMC 10UH 1A 2LN TH100mOhm-712 - Immediate$13.25View Details
CMC 1MH 700MA 2LN THSU9H-07010CMC 1MH 700MA 2LN TH600mOhm-1130 - Immediate$7.74View Details
CMC 10UH 700MA 2LN THSU9VD-07010CMC 10UH 700MA 2LN TH100mOhm-1068 - Immediate$8.23View Details
CMC 13.02UH 2.5A 2LN THSU9HD-25013CMC 13.02UH 2.5A 2LN TH42mOhm-921 - Immediate$8.48View Details
CMC 5.95UH 4A 2LN THSU9HD-40006CMC 5.95UH 4A 2LN TH27.5mOhm-732 - Immediate$8.48View Details
CMC 18MH 100MA 2LN THSU9V-R01180CMC 18MH 100MA 2LN TH8Ohm-3640 - Immediate$8.64View Details
CMC 9MH 300MA 2LN THSU9H-R03090CMC 9MH 300MA 2LN TH3Ohm-1297 - Immediate$8.64View Details
