Joymax Electronics

Adhesive-Mount 868 MHz/915 MHz FPC Antenna

The Joymax Electronics GBF-H060MP3B adhesive-mount monopole antenna is designed for Sub-1 GHz 868 MHz and 915 MHz bands supporting LPWA applications

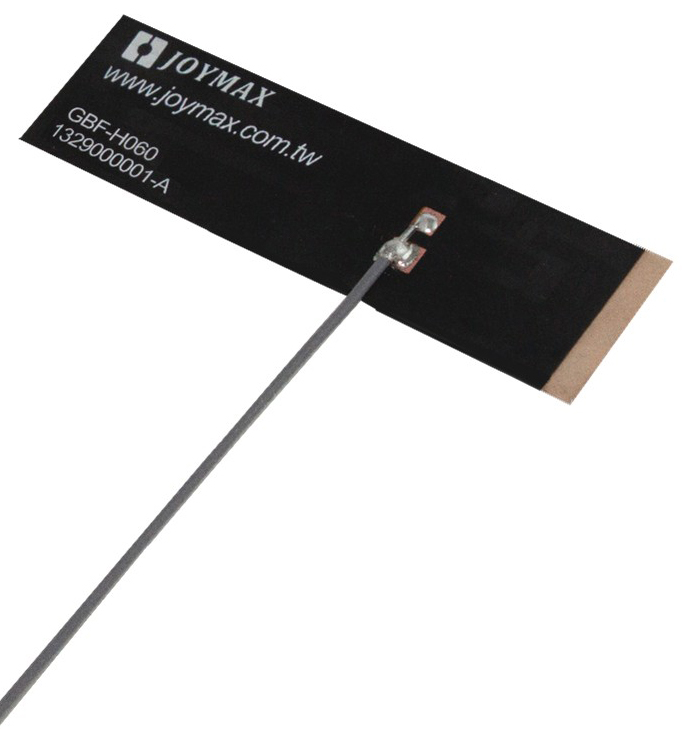

Image of Joymax Electronics Adhesive-Mount 868 MHZ/915 MHz FPC AntennaThe Joymax Electronics GBF-H060MP3B flexible print circuit (FPC) board antenna provides an internal/embedded antenna solution to easily mount in RF-transparent (e.g., plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF plug connector.

Features
  • Bandwidth: 862 MHz to 930 MHz
  • Adhesive backing permanently adheres to non-metallic enclosure/chassis using 3M 467MP
  • Ground plane independent performance
  • Compact size, low profile
Applications
  • Low-power, wide-area (LPWA) applications
    • LoRaWAN®
    • Sigfox®
    • Wi-SUN® (IEEE 802.15.4)
    • Weightless-P™
    • Wi-Fi HaLow™ (IEEE 802.11ah)
  • ISM applications
  • Remote controls
  • Internet of Things (IoT) devices

Adhesive-Mount 868 MHz/915 MHz FPC Antenna

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
New Product
ANT 868 915 FPC W. CABLE & MHF1		GBF-H060MP3B-W012ANT 868 915 FPC W. CABLE & MHF11966 - Immediate$32.15View Details

Associated Parts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN MHF1 RECEPTACLE MALE PINCT-MPB01XCONN MHF1 RECEPTACLE MALE PIN3257 - Immediate$3.70View Details
CONN MHF4L RECEPTACLE MALE PINCT-MFB01XCONN MHF4L RECEPTACLE MALE PIN8894 - Immediate$4.11View Details
Published: 2025-12-29
