            Next GEN High-Current Pressed Powder Inductors – EXL Series

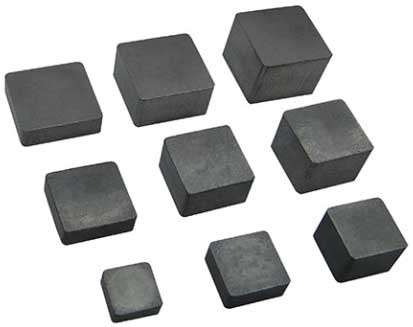

                    Eaton's EXL inductors are available in four high power density sizes: 4 mm, 5 mm, 6 mm, and 7 mm


Eaton's EXL is a family of next-generation pressed powder high-current inductors. They provide a wide range of inductances from 0.15 µH to 10 µH. Eaton's EXL inductors are available in four high power density sizes: 4 mm, 5 mm, 6 mm, and 7 mm. Their advanced molded construction is excellent for higher currents requiring low saturation and stability across a wide operating temperature range (-40°C up to +125°C). Each product in the EXL line is magnetically shielded for superior EMI immunity.

Features

High current carrying capacity
Low DCR, high efficiency
Magnetically shielded, low EMI

Soft saturation
Alloy powder core material

Applications

Voltage regulator modules (VRM)
Multi-phase regulators
Point-of-load (POL) converters
Desktop and server VRMs and EVRDs
Base station equipment

Laptop and notebook regulators
Tablets and e-readers
Battery power systems
Data networking and storage systems

Resources

Next GEN High-Current Pressed Powder Inductors – EXL Series

Manufacturer Part Number	Description	Current Rating (Amps)	Shielding	Available Quantity	Price	View Details
EXL1V0402-R68-R	FIXED IND 680NH 12A 8.2MOHM SMD	12 A	Shielded	11443 - Immediate	$3.94	View Details
EXL1V0503-1R0-R	FIXED IND 1UH 12.2A 7.6MOHM SMD	12.2 A	Shielded	0 - Immediate	$5.83	View Details
EXL1V0505-6R8-R	FIXED IND 6.8UH 6.4A 28.6MOHM SM	6.4 A	Shielded	5 - Immediate	$5.67	View Details
EXL1V0605-3R3-R	FIXED IND 3.3UH 11A 12.5MOHM SMD	11 A	Shielded	621 - Immediate	$7.06	View Details
EXL1V0606-1R0-R	FIXED IND 1UH 19A 4.29 MOHM SMD	19 A	Shielded	0 - Immediate	$4.95	View Details
