Power Management Solutions

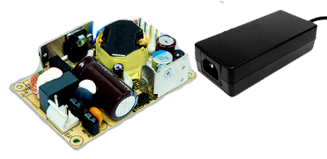

Medical Power Supplies

Expanding on its on-going mission to provide high quality and reliable power supplies for healthcare and medical applications, Delta Medical Power Solutions is pleased to announce continuous new additions to their series of AC-DC adapter, open-frame and enclosed models for these applications. The most recent addition of their 5x8x1.57 packaged MEU-600 (600 W convection cooled) and MEB-1K2 (1,200 W) exemplifies Delta's commitment to industry leading design and performance.

Ranging in power from 5 to 1,200 watts, these designs are certified to EN60950-1 IT standards and EN 60601-1 edition 3.1 and EMC 4th edition medical standards (with risk management reports available), and manufactured in an award-winning manufacturing facility to ensure excellence in production. In addition, the products meet Energy Star Level VI requirements, and are rated less than 0.1 mA of leakage current.

Developed and produced to meet Delta's rigorous DFX (Design for Excellence) process, these designs will provide the robustness, quality and performance that your industrial, medical and healthcare products demand.

Resources:
Medical Power Solutions Leaflet | Medical Power Solutions Catalog | Understanding Medical EMC 4th Edition

• DIN Rail

External Power Supplies

Wide-Range AC Input IT and Medical Safety Approvals Energy Star Compliant (Level VI)

Low Leakage Current (<0.1mA) 3-Year Warranty EMC 4th edition compliant

Series	Description
MDS-030	5/12/15/24V, 15/30W, AC/DC Wall Mount Adapter
005AAS	5V, 5W, Wall Mount Adapter
060AAS	12/15/19/24V, 60W, Desktop Adapter
090AAS	15/19/24V, 90W, Desktop Adapter
150AAS	12/19/24V, 150W, Desktop Adapter

Internal Power Supplies

Wide-Range AC Input IT and Medical Safety Approvals Energy Star 2” x 3” to 5” x 8” Package Sizes

Low Leakage Current (<0.1mA) 3-Year Warranty EMC 4th edition compliant

Series	Description
MEB-1K2A	24/48V, 1200W, 5x8”, ENCLOSED
MEU-600C	24/48V, 600W, 5x8”, U CHANNEL
MDS-XXXADB	12/18/24/48V, 110-400W AC/DC Converter
MDS-350AD701	350W ATX Medical Converter
40APS	12/15/18/24V, 40W, 2x3" Open Frame
65APS	12/15/18/24V, 65W, 2x4" Open Frame
100APS	12/15/18/24V, 100W, 3x5" Open Frame
100BPS	12/15/18/24V, 100W, 2x4" Open Frame
200APB	12/24/36V, 200W, 2x4" Open Frame
250APB	12/24V, 250W 3x5" Open Frame
300APB	12/24/48V, 300W, 3x5" Open Frame
400APB	12/24V, 400W, 3x5" Open Frame
400AUS	19/24V, 400W, U Channel
IMA	12/24/48V, 400-1000W, Adjustable Medical and Industrial
