PSoC® 6 MCU: Purpose-Built for the IoT

Cypress’s PSoC 6 MCU is purpose-built for the Internet of Things (IoT)

Image of Cypress' PSoC® 6 MCU Cypress' PSoC 6 MCU architecture is purpose-built for the IoT, filling the gap between expensive, power-hungry applications processors and low-performance MCUs. The ultra-low power PSoC 6 MCU architecture offers the processing performance needed by IoT devices. Security is built-in, enabling a single-chip solution. PSoC 6 enables engineers to uniquely create innovative, next-generation IoT devices leveraging the unique PSoC fabric with its easy-to-use, software-defined peripherals.

Lowest power: IoT devices are often portable, making battery life a critical factor

  • The PSoC 6 MCU architecture is built on a cutting-edge, ultra-low-power, 40 nm process technology with a dual Arm® Cortex®-M core architecture
  • Active power consumption as low as 22 μA/MHz for the M4 core, and 15 μA/MHz for the M0+ core

Most flexibility: The rapid growth of the IoT is sparking a need for innovation in IoT products

  • PSoC 6 offers superior flexibility with multiple wired and wireless connectivity options
  • Offers software-defined peripherals to create custom analog and digital circuits and one of the industry's best capacitive-sensing solutions, CapSense®

Built-in security: Security must be established between IoT devices, cloud applications, and servers

  • PSoC 6 supports an integrated, hardware-based trusted execution environment (TEE) with secure data storage
  • Incorporates a hardware-based root-of-trust and hardware-accelerated cryptograph

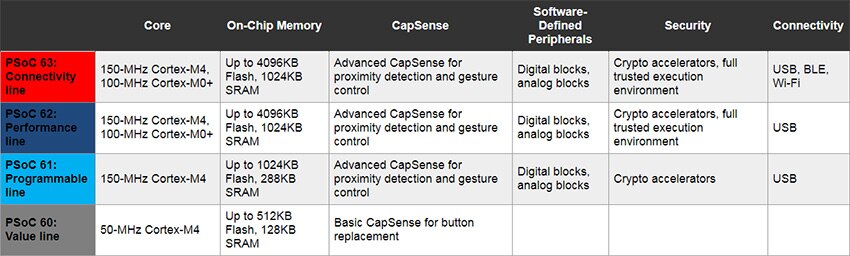

Image of Cypress' PSoC 6 Specification table

Cypress PSoC 6 Pioneer Kits are available to prototype and develop with PSoC 6 BLE 5.0 as well as PSoC 6 + Cypress Wi-Fi/BT combo radio chipsets. Also available is a joint IoT Wireless Sensor Network development platform in partnership with SparkFun and Digi-Key.

PSoC 6 MCU Resources


Image of Cypress' PSoC 6 Portfolio - Register Now!

PSoC 6 Development Kits

ImageManufacturer Part NumberDescriptionPart StatusTypeFrequencyAvailable QuantityView Details
PSOC 6 BLE 5.0 EVALCY8CPROTO-063-BLEPSOC 6 BLE 5.0 EVALActiveTransceiver; Bluetooth® 52.4GHz245 - ImmediateView Details
PSOC 6 WIFI-BT EVALCY8CPROTO-062-4343WPSOC 6 WIFI-BT EVALActiveTransceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart 4.x Low Energy (BLE)2.4GHz125 - ImmediateView Details
PSOC6 BLE PIONEER EVAL BOARDCY8CKIT-062-BLEPSOC6 BLE PIONEER EVAL BOARDActiveTransceiver; Bluetooth® 52.4GHz158 - ImmediateView Details
PSOC6 WIFI BT PIONEER EVALCY8CKIT-062-WIFI-BTPSOC6 WIFI BT PIONEER EVALActiveTransceiver; 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Classic2.4GHz44 - ImmediateView Details


ImageManufacturer Part NumberDescriptionPeripheralsNumber of I/OAvailable QuantityView Details
IC MCU 32BIT 1MB FLASH 116BGACY8C6347BZI-BLD53IC MCU 32BIT 1MB FLASH 116BGABluetooth, Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT78314 - ImmediateView Details
IC DUAL CORE MCU 32B 1M 124BGACY8C6247BZI-D54IC DUAL CORE MCU 32B 1M 124BGABrown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT104211 - ImmediateView Details
IC DUAL CORE MCU 32B 512K 124BGACY8C6036BZI-F04IC DUAL CORE MCU 32B 512K 124BGABrown-out Detect/Reset, DMA, I²S, POR, PWM, WDT104247 - ImmediateView Details
IC DUAL CORE MCU 32B 512K 124BGACY8C6136BZI-F14IC DUAL CORE MCU 32B 512K 124BGABrown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT104255 - ImmediateView Details
