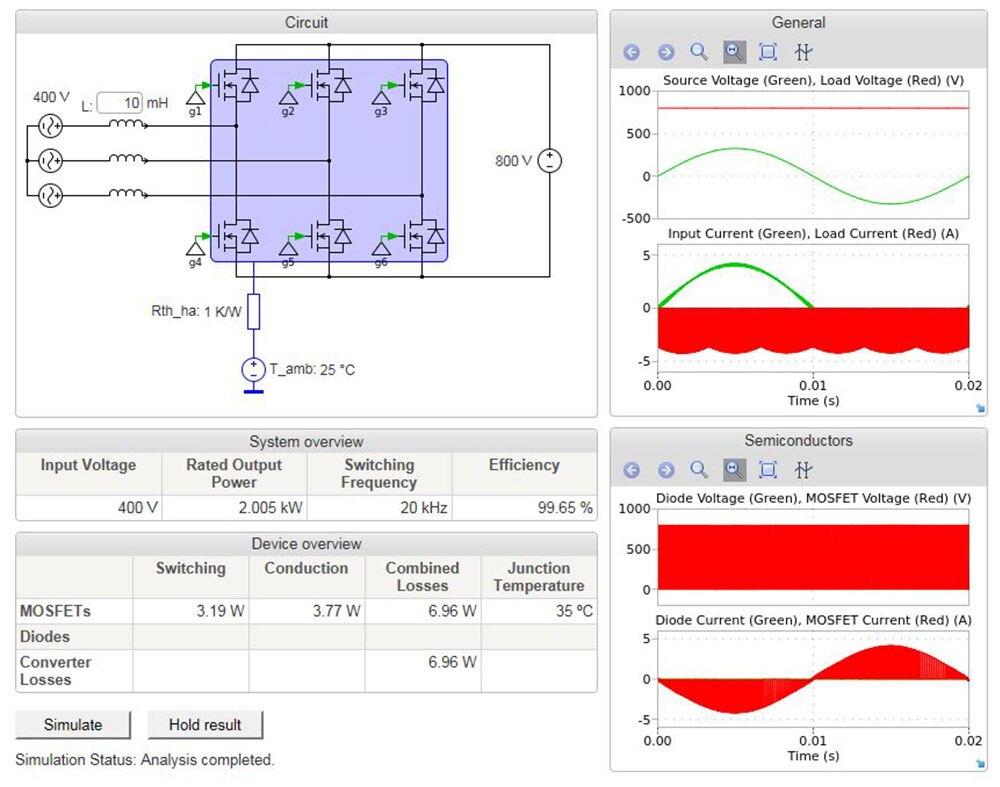

SpeedFit™ Design Simulator
Wolfspeed offers one of the industry’s most comprehensive system-level circuit simulator for silicon carbide power applications
The SpeedFit Design Simulator is the first step in evaluating Wolfspeed's MOSFETs, Schottky diodes, and power modules. Its easy-to-use interface enables evaluation of the most common power topologies, from buck and boost converters to fully bidirectional totem pole PFCs with resonant DC/DC converters.
Using SpeedFit, customers can quickly select the appropriate device for their application and determine the following:
- Save hours of comparative analysis
- Select the right Wolfspeed silicon carbide product designs
- Evaluate the performance of multiple topology options for various applications
- Predict and minimize conduction and switching losses
- Compare different device and thermal configurations
Additional Resources
Published: 2016-05-03
SiC Diodes 600 V to 1700 V
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | C3D06060G | DIODE SIL CARB 600V 19A TO263-2 | 6986 - Immediate | $44.95 | View Details |
|  | C3D06060A | DIODE SIL CARB 600V 19A TO220-2 | 2759 - Immediate | $32.10 | View Details |
|  | C3D02060E | DIODE SIL CARB 600V 8A TO252-2 | 5255 - Immediate | $19.92 | View Details |
|  | C3D06065E | DIODE SIL CARB 650V 20A TO252-2 | 1222 - Immediate | $47.25 | View Details |
|  | C6D04065E | DIODE SIL CARB 650V 16A TO252-2 | 1710 - Immediate | $24.61 | View Details |
| | C6D10065E | DIODE SIL CARB 650V 35A TO252-2 | 2665 - Immediate | $48.49 | View Details |
| | C4D02120E | DIODE SIL CARB 1200V 10A TO2522 | 6563 - Immediate | $25.77 | View Details |
| | C4D20120A | DIODE SIL CARB 1200V 54.5A TO220 | 4659 - Immediate | $215.02 | View Details |
|  | C4D15120H | DIODE SIL CARB 1200V 39A TO2472 | 365 - Immediate | $120.02 | View Details |
| C5D10170H | DIODE SIL CARB 1700V 33A TO2472 | 0 - Immediate | See Page for Pricing | View Details | |
| C5D05170H | DIODE SIL CARB 1700V 18A TO2472 | 0 - Immediate | See Page for Pricing | View Details | |
 | C3D25170H | DIODE SIL CARB 1.7KV 26.3A TO247 | 0 - Immediate | $340.50 | View Details |
SiC MOSFETs 600 V to 1200 V
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | C3M0025065D | GEN 3 650V 25 M SIC MOSFET | 89 - Immediate | $283.51 | View Details |
|  | C3M0045065K | GEN 3 650V 49A SIC MOSFET | 378 - Immediate | $184.89 | View Details |
| | C3M0120065D | 650V 120M SIC MOSFET | 535 - Immediate | $81.41 | View Details |
| | C3M0030090K | SICFET N-CH 900V 73A TO247-4 | 0 - Immediate | See Page for Pricing | View Details |
| | C3M0120090D | SICFET N-CH 900V 23A TO247-3 | 222 - Immediate | $127.93 | View Details |
|  | C3M0120090J | SICFET N-CH 900V 22A D2PAK-7 | 5164 - Immediate | $130.89 | View Details |
| | C3M0120100K | SICFET N-CH 1000V 22A TO247-4L | 2395 - Immediate | $162.58 | View Details |
| | C3M0350120D | SICFET N-CH 1200V 7.6A TO247-3 | 0 - Immediate | $79.11 | View Details |
| | C2M0025120D | SICFET N-CH 1200V 90A TO247-3 | 161 - Immediate | $867.41 | View Details |
|  | C3M0160120J | SICFET N-CH 1200V 17A TO263-7 | 2004 - Immediate | $107.76 | View Details |
| | C3M0032120K | SICFET N-CH 1200V 63A TO247-4L | 61 - Immediate | $320.22 | View Details |
SiC Power Modules
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CAS300M17BM2 | MOSFET 2N-CH 1700V 325A MODULE | 0 - Immediate | See Page for Pricing | View Details |
|  | WAB400M12BM3 | MOSFET 2N-CH 1200V 468A MODULE | 21 - Immediate | $8,474.02 | View Details |
| | WAB300M12BM3 | MOSFET 2N-CH 1200V 382A MODULE | 0 - Immediate | See Page for Pricing | View Details |
SpeedVal Kit™ Portfolio
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | MOD-MB-HB-0900V-40A | SPEEDVAL KIT HALF-BRIDGE MOTHERB | 0 - Immediate | $3,834.79 | View Details |
|  | MOD-PWR-MM-C3M0045065L | SPEEDVAL KIT HALF-BRIDGE POWER D | 10 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0060065L | SPEEDVAL KIT HALF-BRIDGE POWER D | 7 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0025065L | SPEEDVAL KIT HALF-BRIDGE POWER D | 8 - Immediate | $1,132.81 | View Details |
|  | MOD-PWR-MM-C3M0045065K | SPEEDVAL KIT HALF-BRIDGE POWER D | 5 - Immediate | $911.61 | View Details |
|  | MOD-PWR-MM-C3M0025065J1 | SPEEDVAL KIT HALF-BRIDGE POWER D | 4 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0045065J1 | SPEEDVAL KIT HALF-BRIDGE POWER D | 9 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0060065J | SPEEDVAL KIT HALF-BRIDGE POWER D | 10 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0032120J1 | SPEEDVAL KIT HALF-BRIDGE POWER D | 9 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0040120J1 | SPEEDVAL KIT HALF-BRIDGE POWER D | 6 - Immediate | $911.61 | View Details |
| | MOD-PWR-MM-C3M0075120J | SPEEDVAL KIT HALF-BRIDGE POWER D | 7 - Immediate | $911.61 | View Details |
|  | MOD-ACC-BUCKBOOST-400UH | SPEEDVAL KIT BUCK/BOOST ACCESSOR | 0 - Immediate | $1,953.04 | View Details |
|  | MOD-ACC-BUCKBOOST-190UH | SPEEDVAL KIT BUCK/BOOST ACCESSOR | 0 - Immediate | $1,953.04 | View Details |
Evaluation Kits and Boards
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CRD-15DD17P | EVAL BOARD FOR C2M1000170J | 1 - Immediate | $293.80 | View Details |
|  | KIT-CRD-8FF65P | EVAL KIT FOR SIC MOSFET | 0 - Immediate | $3,601.50 | View Details |
|  | CGD1200HB2P-BM2 | EVAL BOARD FOR CGD1200HB2P | 31 - Immediate | $2,548.30 | View Details |
