AEC-Q200 Compliant Thick Film Chip Resistors - Model CRxxxxA Series

Bourns' model CRxxxxA AEC-Q200 compliant chip resistor series designed for general purpose applications

Image of Bourns' AEC-Q200 Compliant Thick Film Chip Resistors - Model CRxxxxA Series Bourns' model CRxxxxA AEC-Q200 compliant chip resistor series is available in eight different footprints from small 0201 (0603 metric) up to 2512 (6431 metric) and offers rated power from 0.05 watt to 1 watt. The model CRxxxxA series has a wide resistance range from 1 ohm to 20 megohms and is designed for general purpose applications.

These resistors use a thick film element printed onto a ceramic substrate and complement the other circuit conditioning components that Bourns offers such as power inductors and rectifier diodes.

Features
  • Thick film technology
  • Power rating up to 1 watt at +70°C
  • RoHS compliant
  • Halogen-free
  • AEC-Q200 compliant

Applications

  • General purpose

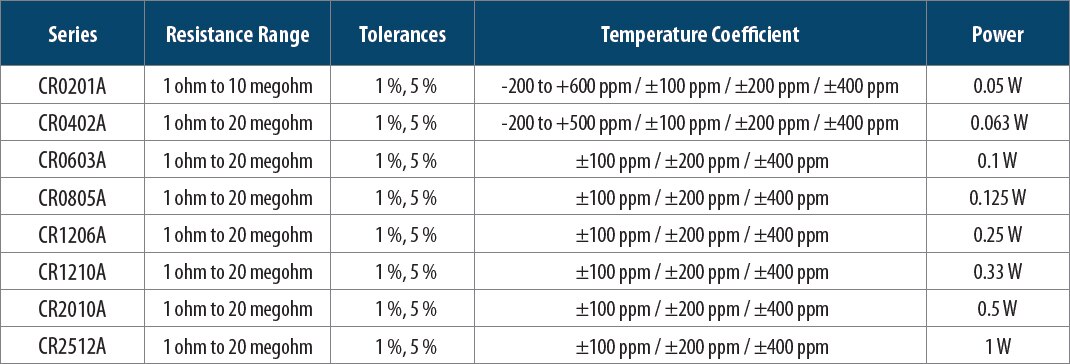

Image of Bourns' Model CRxxxxA Series Differences Table

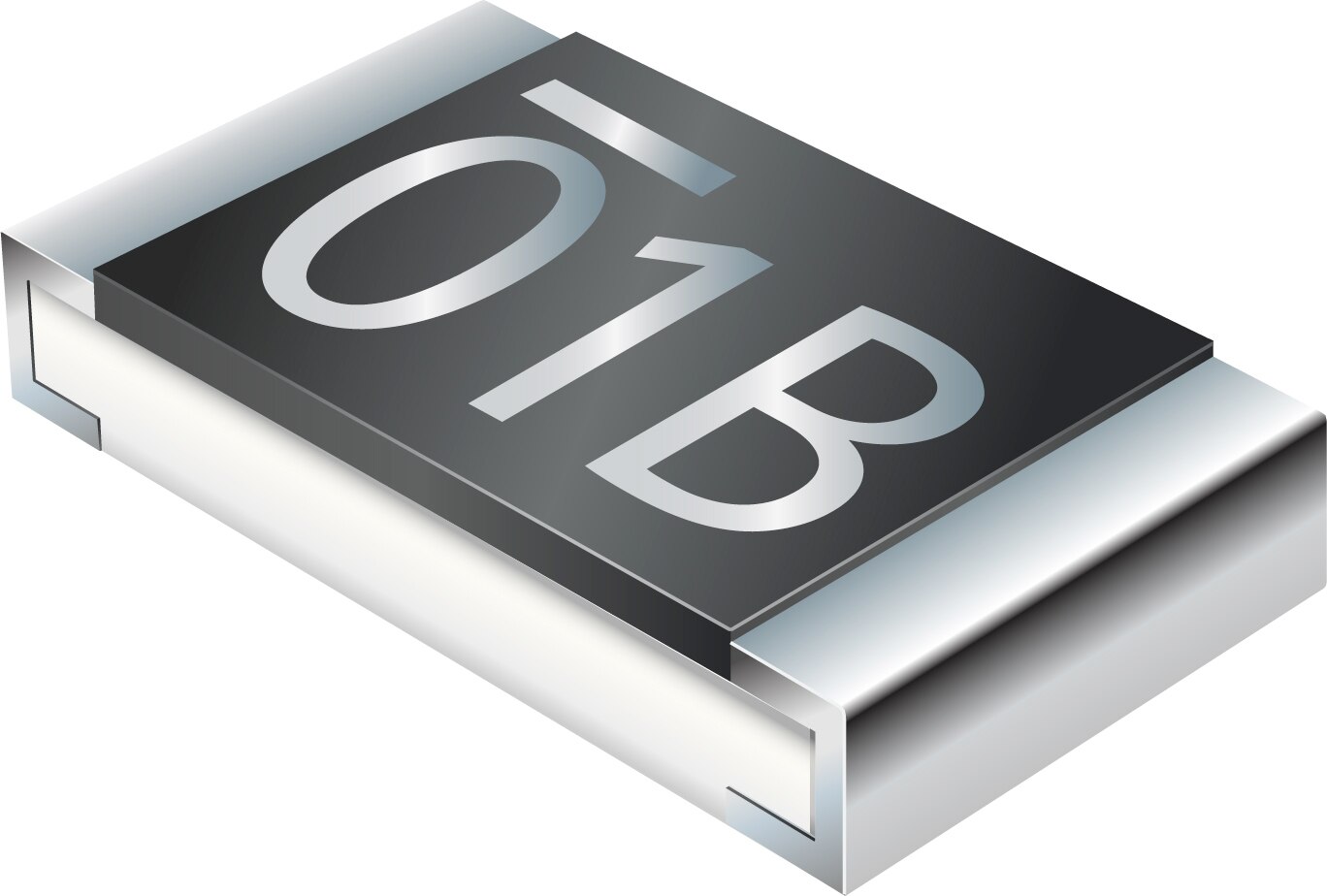

Model CRxxxxA Series

ImageManufacturer Part NumberDescriptionPower (Watts)CompositionFeaturesAvailable QuantityPriceView Details
RES 100 OHM 1% 1/20W 0201CR0201AFW-1000GLFRES 100 OHM 1% 1/20W 02010.05W, 1/20WThick FilmAutomotive AEC-Q20023123 - Immediate$0.82View Details
RES 1K OHM 1% 1/20W 0201CR0201AFW-1001GLFRES 1K OHM 1% 1/20W 02010.05W, 1/20WThick FilmAutomotive AEC-Q2000 - Immediate$0.82View Details
RES 0 OHM JUMPER 1/20W 0201CR0201AJ/-000GLFRES 0 OHM JUMPER 1/20W 0201-Thick FilmAutomotive AEC-Q2000 - Immediate$0.82View Details
RES 10K OHM 5% 1/20W 0201CR0201AJW-103GLFRES 10K OHM 5% 1/20W 02010.05W, 1/20WThick FilmAutomotive AEC-Q20054214 - Immediate$0.82View Details
RES 1K OHM 1% 1/16W 0402CR0402AFX-1001GLFRES 1K OHM 1% 1/16W 04020.063W, 1/16WThick FilmAutomotive AEC-Q2000 - Immediate$0.82View Details
Published: 2020-06-17
