Amphenol Sine Systems MotionGrade connectors are available for use in demanding environments
Amphenol Sine Systems' MotionGrade™ M23 and M40 circular DIN connectors are designed to excel in performance and reliability in the most demanding environments. All M23 and M40 products are IP67 rated. They are ideally suited for advanced servo drive encoder feedback applications, packaging, robotic, printing, machine tool, medical, and automation environments where control signal transmission or power are required in a robust and compact delivery system. M23 connectors have standard power insert arrangements from 6 to 9 positions, up to 630 V and 30 A. Signal arrangements range from 12 to 19 positions, up to 160 V and 10 A. M40 power/signal arrangements range from 6 to 8 positions, up to 630 V and 75 A. Motiongrade™ connectors offer a standard threaded coupling and our quick locking Checkmate™ coupling. Checkmate™ is an enhanced next generation anti-vibration dual-ratcheting coupling system and is intermateable and compatible with rival M23 quick coupling products.

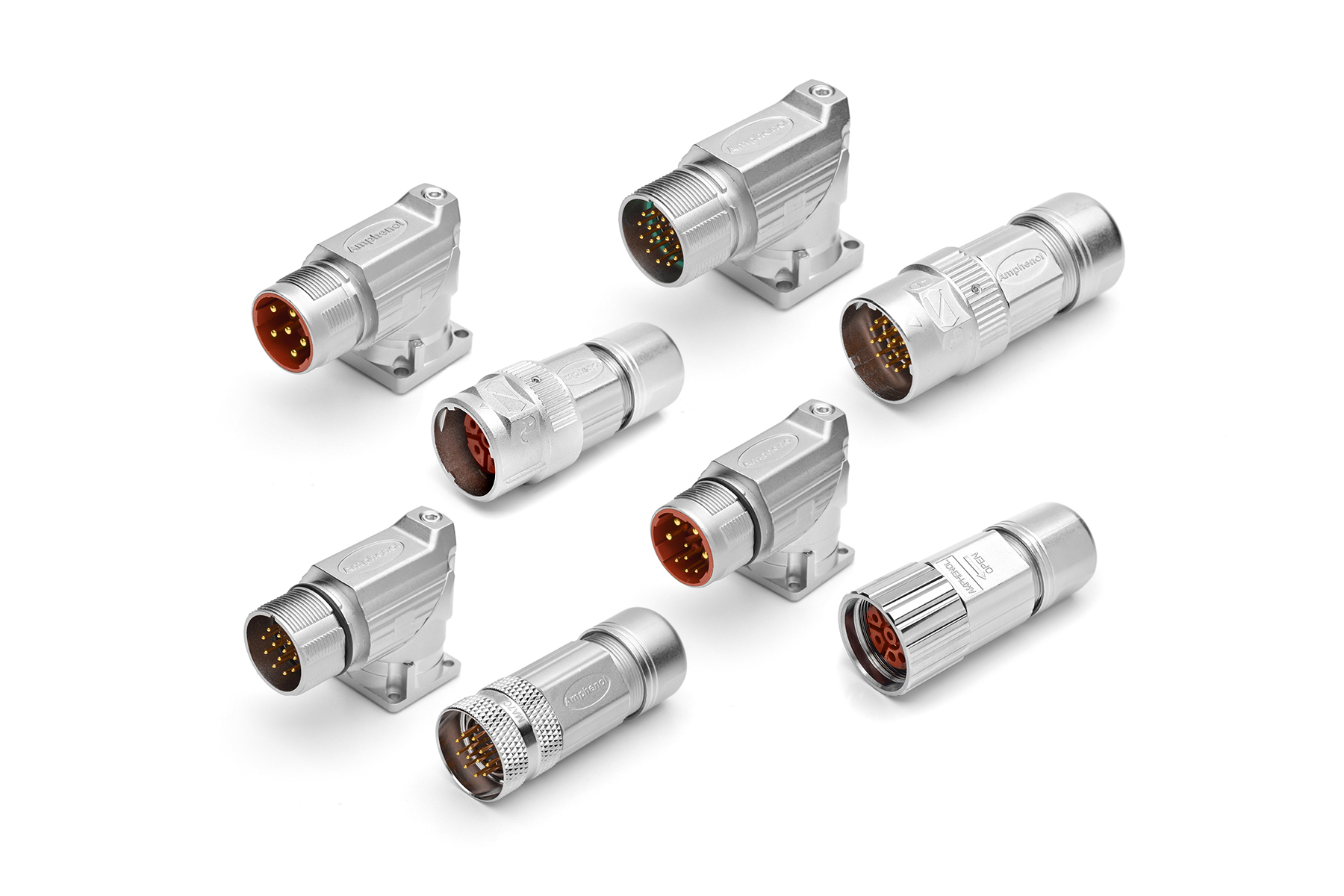

M23 Elite Series
M23 Elite Threaded and Checkmate™ Series State-of-the-art Design Features 6, 8, 9, 12, 16 and 17 positions available
Features
- Next Generation Single Pc Design
- Power - 6,8 & 9 positions-30 A max current, 630 V max voltage, 14-16 awg.
- Signal - 12, 16 & 17 positions-10 A Max current, 160 V (12 pos), 125 V (16 &s; 17) max voltage, 18-26 awg
- Checkmate™ is intermateable and compatible with rival M23 quick coupling products
- Reduced Cost
- Faster Assembly
- High-performance, cost-effective
- Superior environmental seal retention
- Compatible with existing standard products industry-wide
M23 Elite Series Checkmate™ Quick Locking Connectors | M23 Series Elite Threaded Connectors
View Details

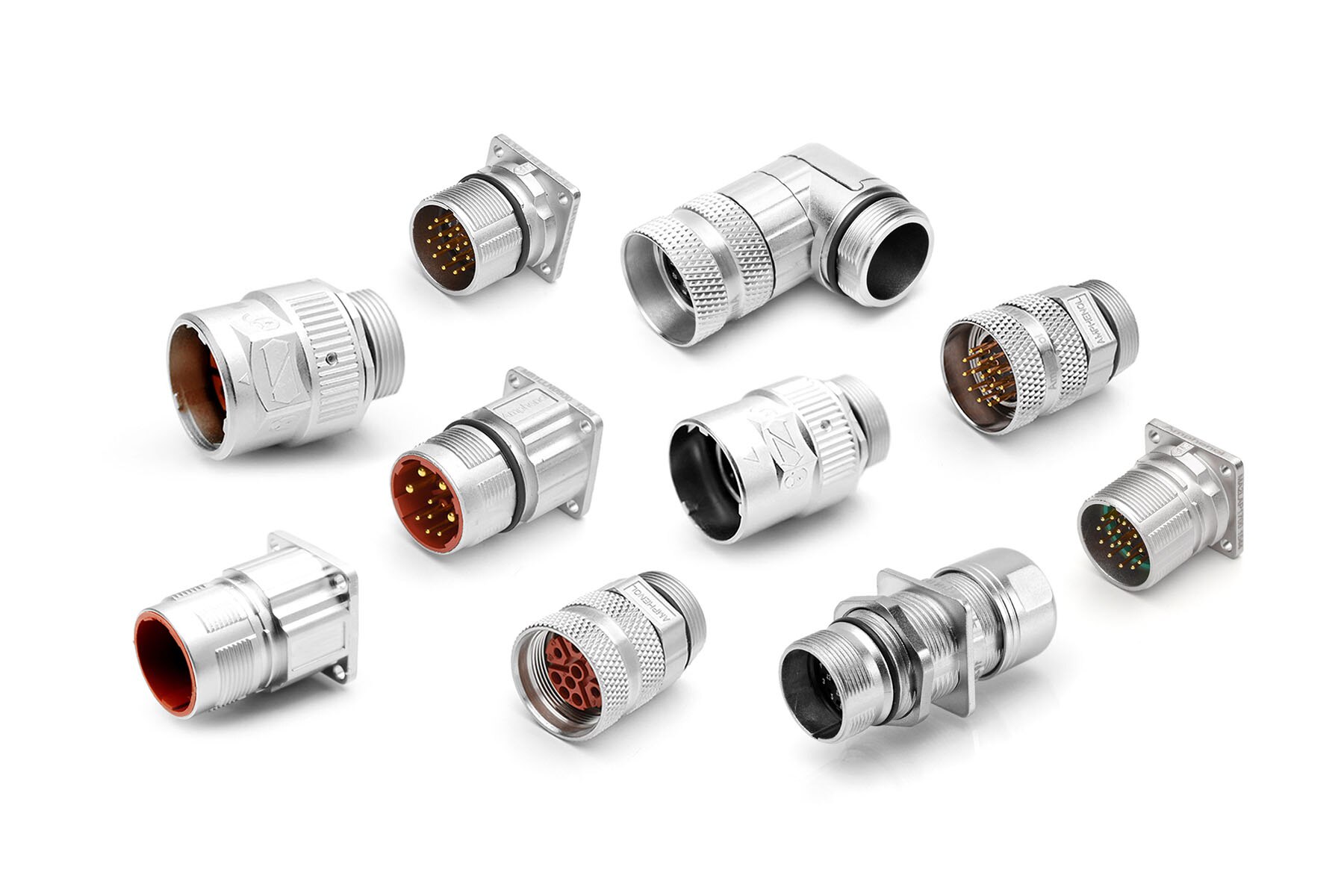

M23 Standard Series
M23 Standard Threaded and Checkmate™ Series Offering Expanded Connector Options 6, 8, 9, 12, 16, 17 and 19 positions available
Features
- Power - 6,8 & 9 positions-30 A max current , 630 V max voltage , 14-16 awg.
- Signal - 12,16 & 17 positions-10 A Max current, 160 V (12 pos), 125 V (16 &s; 17) max voltage , 18-26 awg
- Signal - 19 position-7A max current, 63 V Max voltage, 18-26 awg
- Checkmate™ is intermateable and compatible with rival M23 quick coupling products
- High-performance, cost-effective
- Superior environmental seal retention
- Compatible with existing standard products industry-wide
M23 Standard Series Checkmate™ Quick Locking Connectors | M23 Standard Series Threaded Connectors
View Details

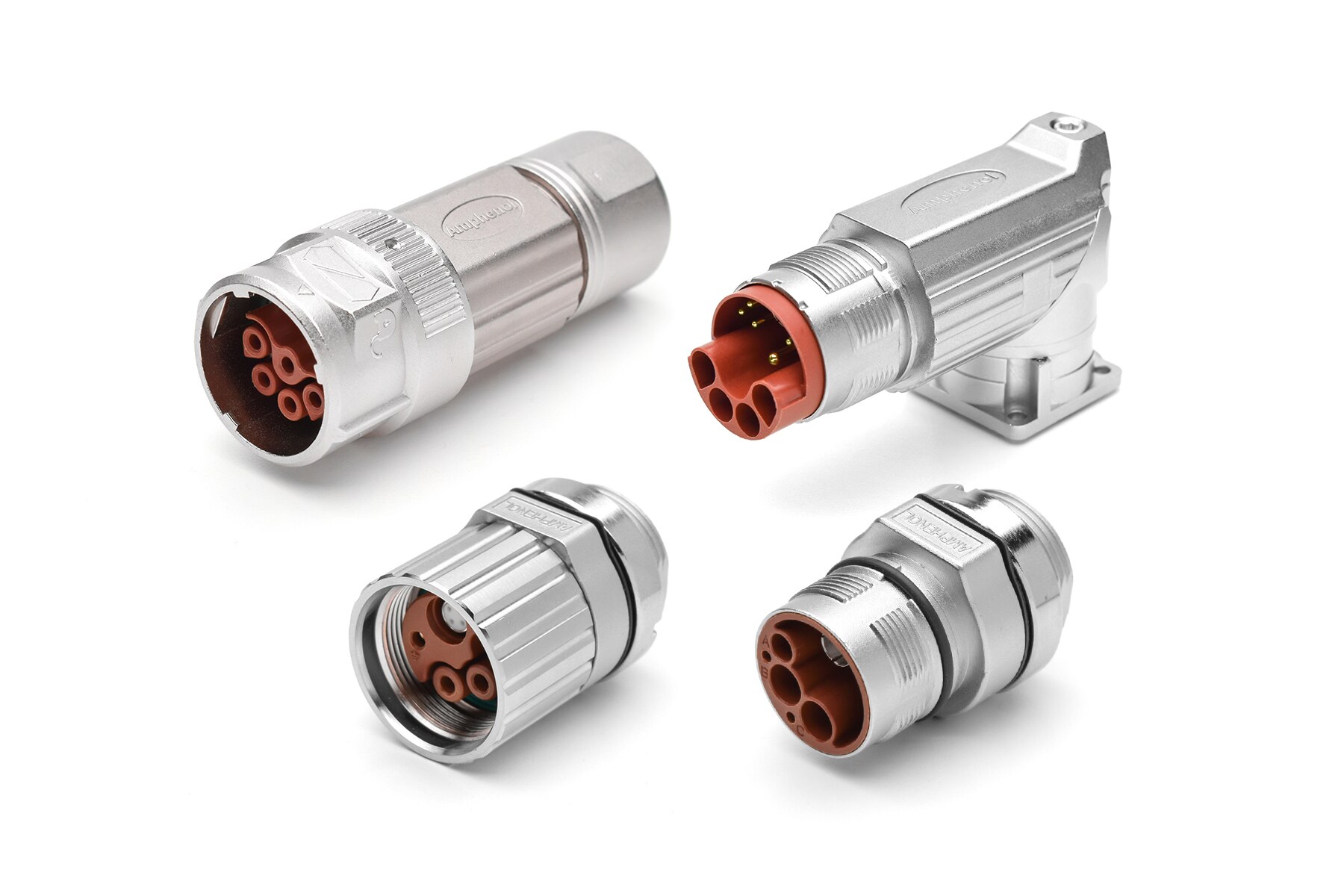

M23 Hybrid Connectors
8 Position
- 2 Power + PE + 1 Signal + 4 Quad Ethernet Element
- 18 A (Power), 1 A (Signal), 0.5 A (Ethernet) Max Current
- 850 V (Power/Signal), 30 VDC (Ethernet) Max. Voltage Rating
15 Position
- 4 Power + PE + 6 Signal + 4 Quad Ethernet Element
- 30 A (Power), 1.2 A (Signal), 1.2 A (Ethernet) Max Current
- 630/850 V (Power), 30/50 V (Signal), 30 V (Ethernet) Max. Voltage Rating
Features
- Ideally suited for advanced servo-drive encoder feedback applications where POWER, SIGNAL and DATA is required in a robust and compact delivery system
- High-performance, cost-effective
- Superior environmental seal retention
View Details

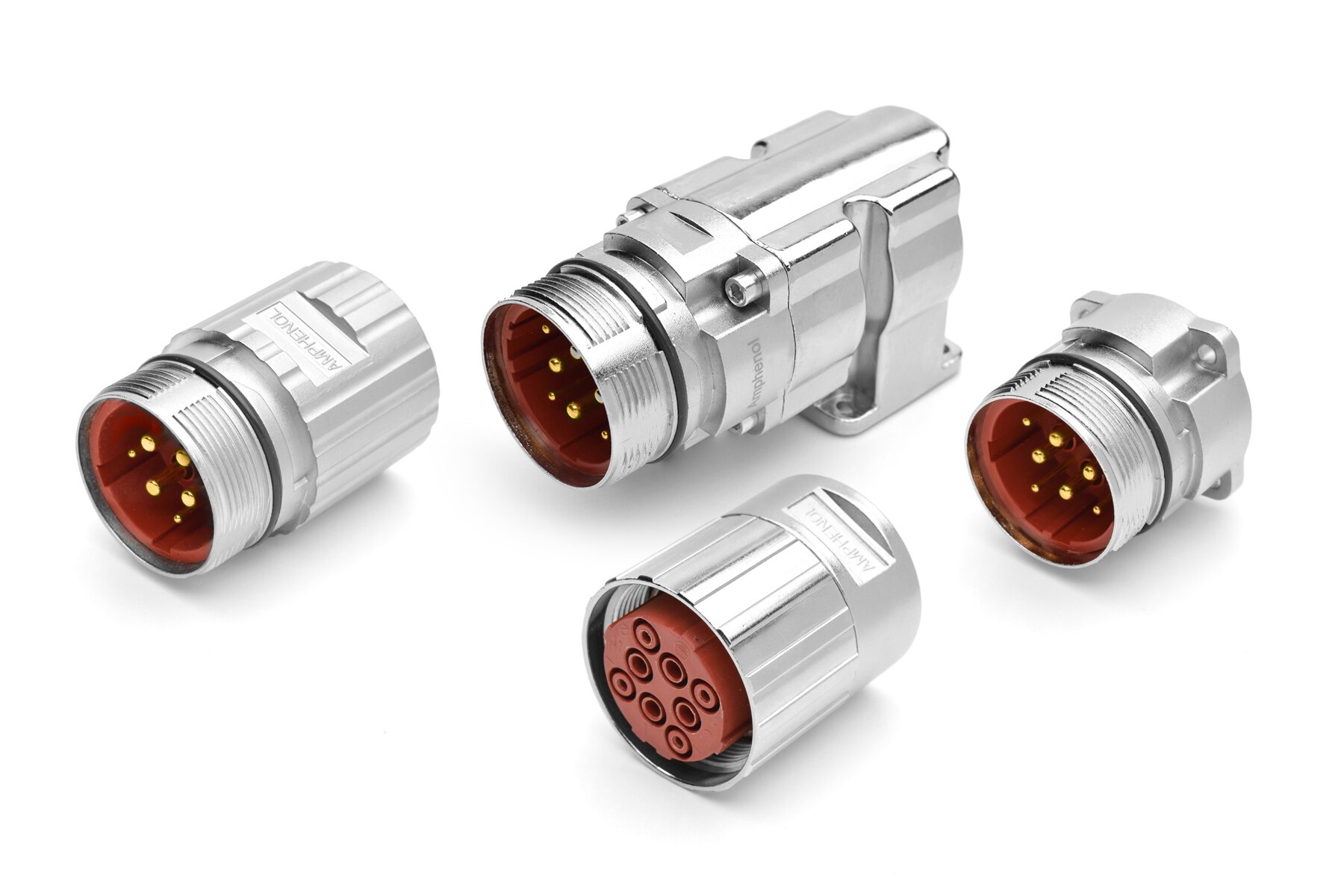

M40 Series Connectors
6 and 8 positions available
Features
- Power - 6 & 8 positions-75 A max current, 630 V max voltage, 8-12 awg.
- High-performance, cost-effective
- Superior environmental seal retention
- Compatible with existing standard products industry-wide
View Details

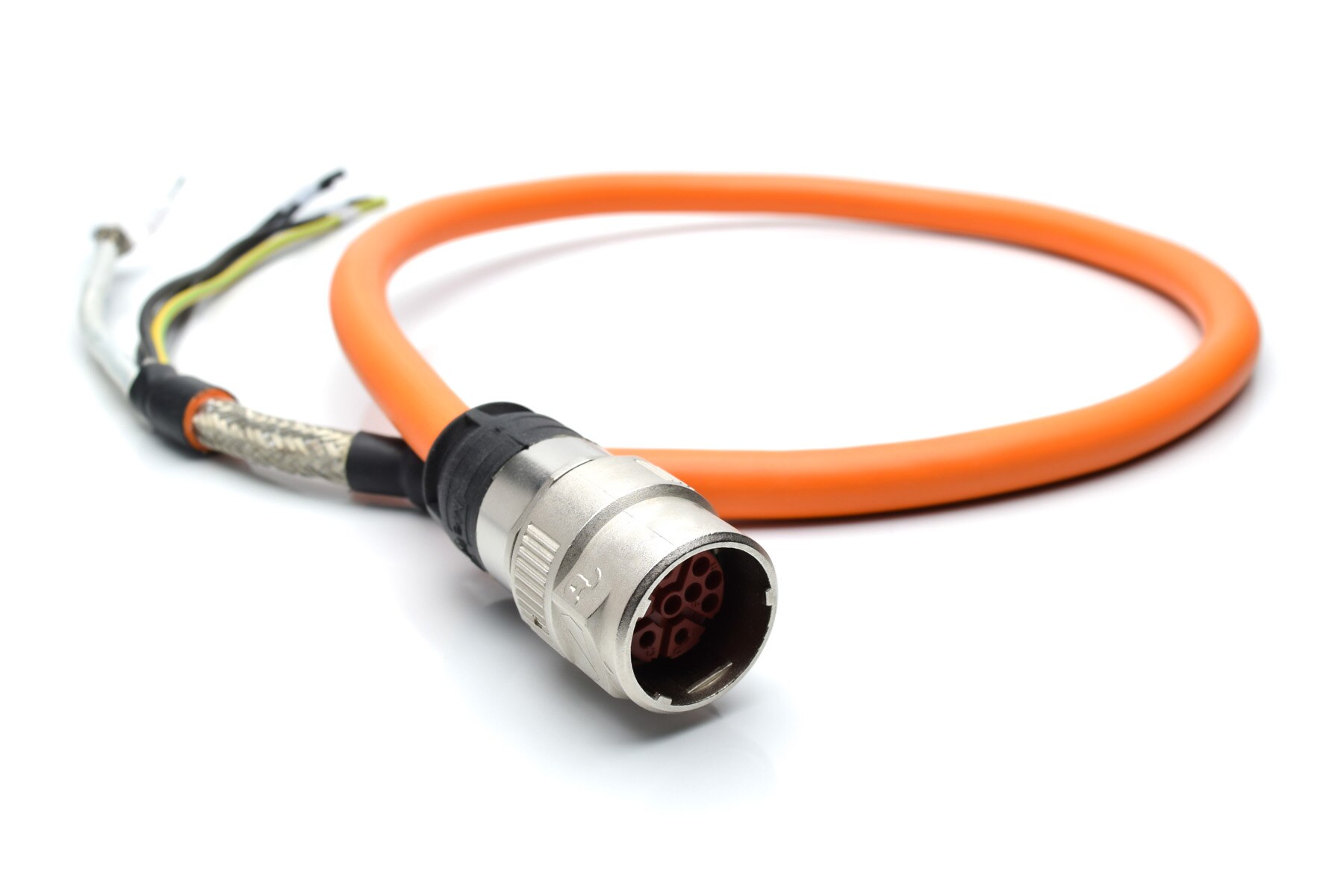

Motion Control DSL Cable Assemblies
Motion Control DSL Cable Assemblies
Features
- Available in 14 AWG &18AWG
- Jacket Color: Orange DESINA RAL 2003
- Jacket Material: Polyurethane (PUR)
- cULus AWM 80°C 100V-AWM I/II A/B 80°C 1000V FT1
- Protection: IP67 (in mated condition)
- Standard Cable Lengths m(ft):01(3.2) - 50(164) in 1.0m(3.2) increments . Custom lengths also available-consult factory.
- Complete Shielding: Shield Tinned Copper Braid - Coverage >85%
View Details
