PwrBlade® MiniMezz Connectors

Amphenol Communications Solutions’ PwrBlade MiniMezz connectors have high blind-mate gatherability of ±0.8 mm

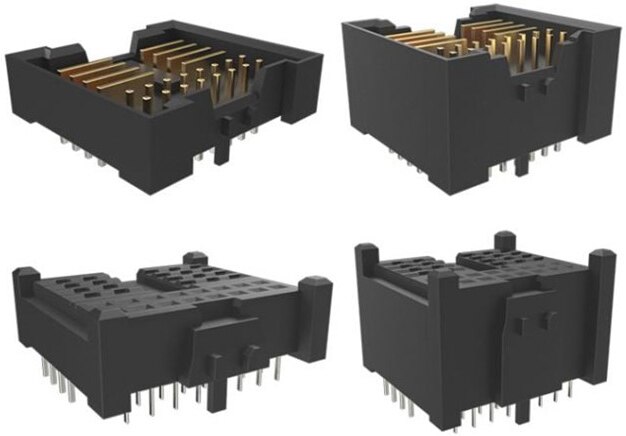

Image of Amphenol ICC's PwrBlade® MiniMezz ConnectorsAmphenol Communications Solutions’ PwrBlade® MiniMezz series connectors feature a smaller profile than the existing PwrBlade products. PwrBlade MiniMezz connectors are available in stack heights ranging from 8 mm to 20 mm, with options for power and signal contacts. They also have blind-mate guides that allow for ±0.80 mm of gatherability for blind-mate applications.

Features/Benefits
  • Power and signal hybrid connectors
  • Solder-tail or press-fit tail board termination
  • Built-in blind-mate guideposts
  • Higher current density in space-constrained applications
  • Supports wide range of current rating and voltage requirements
  • Low-profile power and signal mezzanine connectors
  • Modular tooling to accommodate wide range of application requirements
  • 8 mm to 20 mm stack height combinations, tooled in 1 mm increments
  • High blind-mate gatherability of ±0.8 mm
Applications
  • Communications
  • Data
  • Consumers
  • Medical
  • Industrial and instrumentation

PwrBlade® MiniMezz Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
PWRBLADE MINIMEZZ STANDARD VERTI10159578-C234000LFPWRBLADE MINIMEZZ STANDARD VERTI170 - Immediate$106.47View Details
PWRBLADE MINIMEZZ STANDARD VERTI10159583-C234000LFPWRBLADE MINIMEZZ STANDARD VERTI179 - Immediate$92.11View Details
PWRBLADE MINIMEZZ 5.50MM RECEPTA10159578-C231000LFPWRBLADE MINIMEZZ 5.50MM RECEPTA832 - Immediate$83.54View Details
PWRBLADE MINIMEZZ 2.50MM HEADER10159583-C231000LFPWRBLADE MINIMEZZ 2.50MM HEADER803 - Immediate$71.47View Details
