Minitek™ MicroSpaceXS™ 1.27 mm Connectors

Amphenol Communications Solutions’ Minitek MicroSpaceXS connectors are an ideal choice when high ‎vibration endurance is required

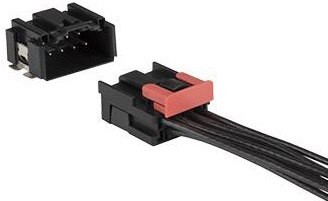

Image of Amphenol Communications Solutions’ Minitek MicroSpaceXS™Amphenol Communications Solutions’ compact design addresses the growing demand for miniaturizing components. The Minitek MicroSpaceXS 1.27 mm wire-to-wire ‎connector can reduce the PCB footprint by 50% due to the increase in signal density. This connector has a nominal current carrying ‎capacity of up to 4 A and an external cable diameter of up to 1.4 mm. The unique design of the Minitek MicroSpaceXS CtW makes ‎this solution and contact pitch compatible with LV214 Severity-2 and USCAR-T2V2. These contacts are the ideal choice when high ‎vibration endurance, primary latch, TPA, CPA, Poka Yoke, and Kojiri safe are required with flexible configurations‎.

Features
  • Design based on existing and proven design controls
  • Existing crimp section and automated crimp tooling up to 22 AWG
  • 4 N normal force for vibration and >75 N connector locking strength
  • Suitable for harsh environments
  • High vibration and locking resistance
  • Terminal position assurance (TPA)
Applications
  • Industrial and instrumentation
  • Lighting
  • Automotive
  • Cameras/sensors
  • HVAC
  • Headliner
  • Lighting

Minitek™ MicroSpaceXS™

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-111LFMINITEK MICROSPACEXS,1.27MM CRIM69256 - Immediate$1.31View Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-112LFMINITEK MICROSPACEXS,1.27MM CRIM14890 - Immediate$0.99View Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-113LFMINITEK MICROSPACEXS,1.27MM CRIM10111 - Immediate$1.15View Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-311LFMINITEK MICROSPACEXS,1.27MM CRIM16579 - Immediate$1.15View Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-312LFMINITEK MICROSPACEXS,1.27MM CRIM14440 - Immediate$1.23View Details
MINITEK MICROSPACEXS,1.27MM CRIM10155447-313LFMINITEK MICROSPACEXS,1.27MM CRIM0 - Immediate
15000 - Marketplace		$1.15View Details
MICROSPACEXS 1.27MM CRIMP10155449-111LFMICROSPACEXS 1.27MM CRIMP29500 - Immediate$1.15View Details
MICROSPACEXS UNSEALED 1.27MM CRI10155500-A102KLFMICROSPACEXS UNSEALED 1.27MM CRI865 - Immediate$6.32View Details
CONN MICROSPACEXS,1.27MM CRIM10155500-A108KLFCONN MICROSPACEXS,1.27MM CRIM838 - Immediate$7.47View Details
MICROSPACE-10155500-A110KLF10155500-A110KLFMICROSPACE-10155500-A110KLF2949 - Immediate$9.44View Details
CONN MICROSPACEXS,1.27MM CRIM10155500-A208KLFCONN MICROSPACEXS,1.27MM CRIM223 - Immediate$16.83View Details
R/A MICROSPACE XS HEADER-101555010155500-A210KLFR/A MICROSPACE XS HEADER-10155500 - Immediate$10.14View Details
CONN MICROSPACEXS,1.27MM CRIM10155500-A308KLFCONN MICROSPACEXS,1.27MM CRIM0 - Immediate
2160 - Marketplace		$14.86View Details
8PIN R/A MICROSPACE-10155500-B1010155500-B108KLF8PIN R/A MICROSPACE-10155500-B100 - ImmediateSee Page for PricingView Details
6PIN XS RECEPTACLE-10155504-A00610155504-A006LF6PIN XS RECEPTACLE-10155504-A0065817 - Immediate$20.12View Details
CONN RCPT HSG 8POS 2.54MM10155504-A008LFCONN RCPT HSG 8POS 2.54MM1465 - Immediate$12.89View Details
MICROSPACE XS RECEPTICLE-101555010155504-A010LFMICROSPACE XS RECEPTICLE-10155504692 - Immediate$13.79View Details
XS RECEPTACLE-10155504-B008LF10155504-B008LFXS RECEPTACLE-10155504-B008LF4679 - Immediate$12.89View Details
MICROSPACEXS 1.27MM CRIMP10155520-A008LFMICROSPACEXS 1.27MM CRIMP1958 - Immediate$17.82View Details
MICROSPACEXS 1.27MM EXTRACTION T10172034-000LFMICROSPACEXS 1.27MM EXTRACTION T44 - Immediate$1,141.82View Details
Published: 2023-04-24
