Pavlok Teardown

71

2022-01-19 | By bekathwia

License: None

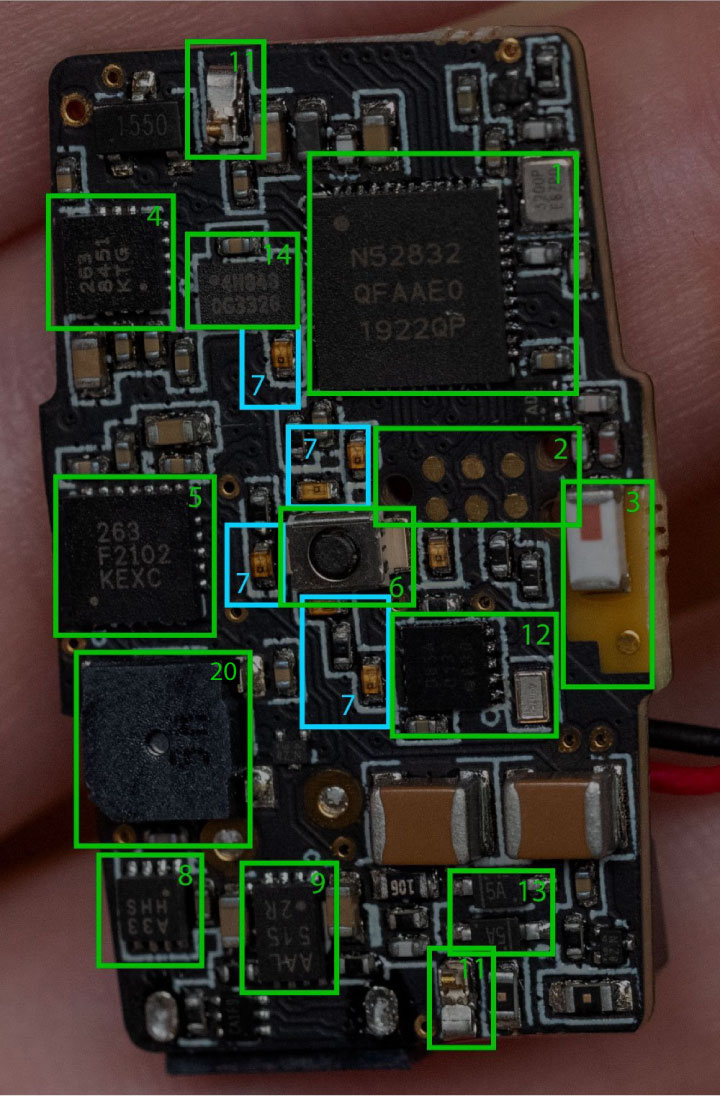

Parts identified on one side of the board

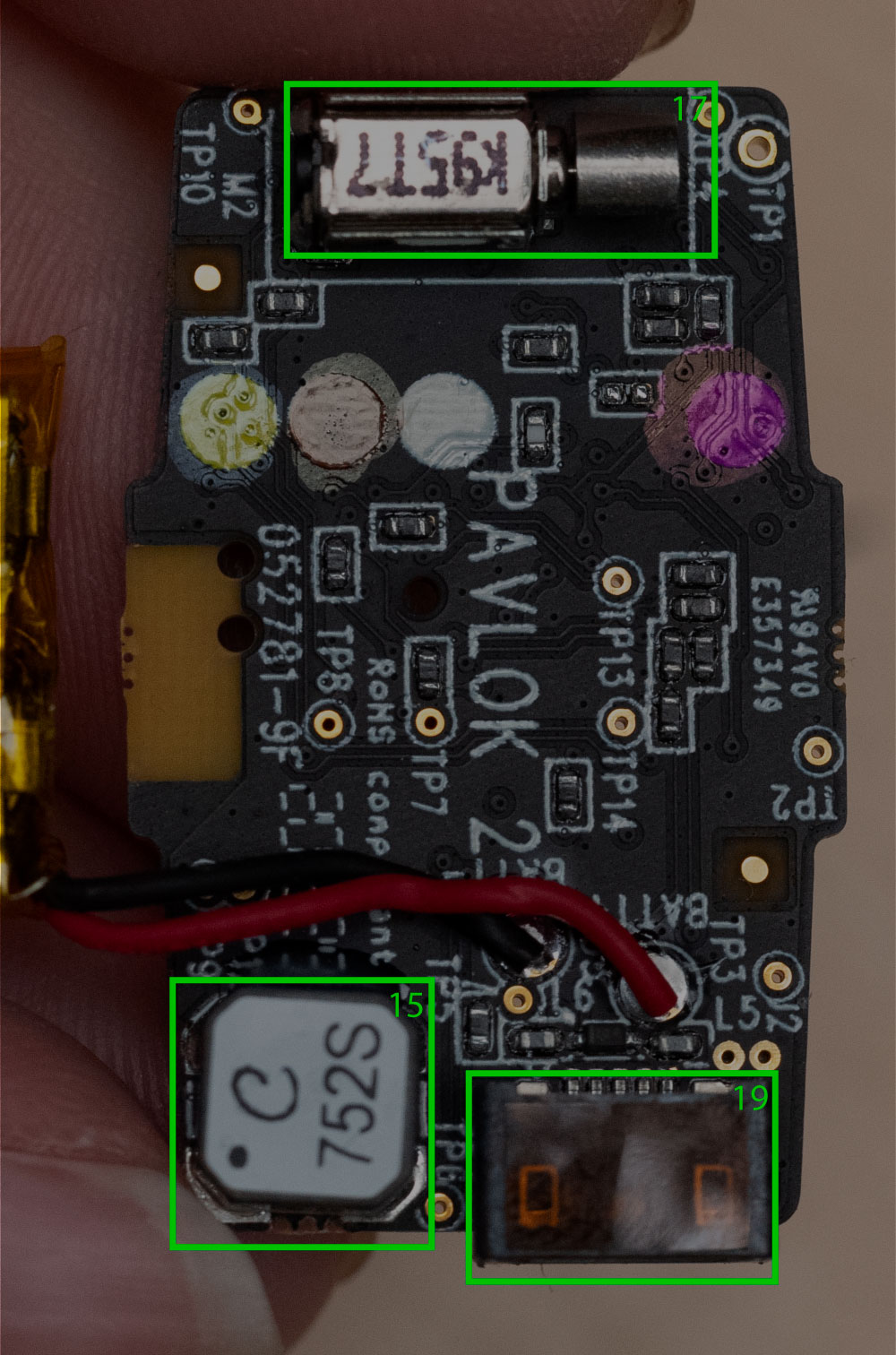

Parts identified on the other side of the board

 Parts we could identify:

  1. N52832Multiprotocol Bluetooth SoCARM® Cortex™-M4 CPU
  2. Tag-Connect programming interface
  3. chip antenna
  4. MMA8451Q3-axis digital accelerometer
  5. FXAS21002C3-axis digital gyroscope
  6. tactile switch
  7. LEDs
  8. battery management/power conditioning?
  9. battery management/power conditioning?
  10. big capacitors
  11. contacts to enclosure
  12. PCF85063A Real-time clock
  13. diodes
  14. (unknown)
  15. LPR6235-752SCoupled inductor (step-up/flyback transformer)
  16. 90mAh lipoly battery
  17. vibrating motor
  18. (not used)
  19. micro USB port
  20. buzzer
