SG-8200 Series Low-Jitter Programmable Crystals

Epson SG-8200CJ/SG-8200CG oscillators are ideal for consumer and industrial applications requiring a small form factor and operation in harsh environment

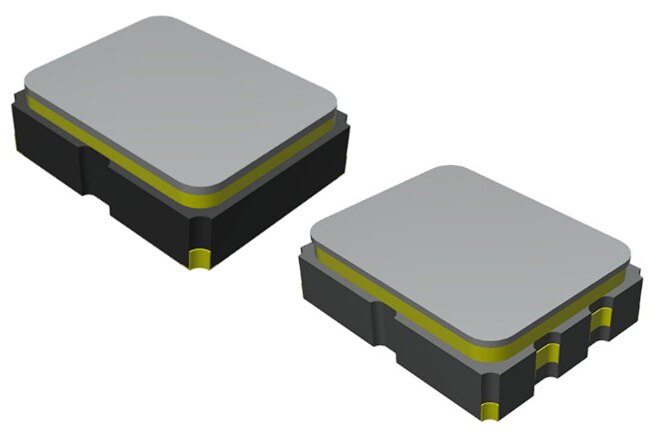

Image of Epson SG-8200 Series Low-Jitter Programmable CrystalsThe Epson SG-8200CJ and SG-8200CG series low-jitter programmable crystal oscillators provide CMOS output from 1.2 MHz to 170 MHz. Users can program any frequency within this range to six decimal places of accuracy. The series also features an extended temperature range of -40°C to +125°C. The SG-8200 product provides frequency stability of ±50 ppm from -40°C to +125°C.

The SG-8200 series is available in 2.0 mm x 1.6 mm (CJ) and 2.5 mm x 2.0 mm (CG) package sizes. These products dramatically decrease phase noise and jitter. Phase noise is improved by approximately 30 dBc/Hz at offset frequency from 100 kHz to 1 MHz and phase jitter is 1.1 ps typical (fo = 125 MHz), about 1/40th of existing programmable products.

Features
  • Extended operating temperature range: -40°C to +125°C
  • Frequency stability: ±50 ppm from -40°C to +125°C
  • Compact package sizes:
    • SG-8200CJ: 2.0 mm x 1.6 mm
    • SG-8200CG: 2.5 mm x 2.0 mm
  • Low phase noise and jitter: 1.1 ps typical (fo = 125 MHz)
  • Wide frequency range: 1.2 MHz to 170 MHz
  • User programmable to six decimal places of accuracy
  • Programmable rise/fall time
  • Output enable and standby features
  • CMOS output
Applications
  • Consumer
  • Test and measurement
  • Industrial and factory automation
  • Medical healthcare
  • Security cameras
  • ATE and HVAC
  • Networking communications

SG-8200CJ Series Low-Jitter Programmable Crystals

圖片製造商零件編號說明可用頻率範圍現有數量價格查看詳情
OSC PROG CMOS 50PPM ST DEFSG-8200CJ-TJJSAOSC PROG CMOS 50PPM ST DEF1.2 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /OE FASTERSG-8200CJ-TJJQBOSC PROG CMOS 50PPM /OE FASTER125 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM OE SLOWERSG-8200CJ-TJJPEOSC PROG CMOS 50PPM OE SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /ST SLOWSG-8200CJ-TJJTDOSC PROG CMOS 50PPM /ST SLOW50 MHz ~ 75 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM ST FASTSG-8200CJ-TJJSCOSC PROG CMOS 50PPM ST FAST75 MHz ~ 125 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /OE SLOWSG-8200CJ-TJJQDOSC PROG CMOS 50PPM /OE SLOW50 MHz ~ 75 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM ST SLOWSG-8200CJ-TJJSDOSC PROG CMOS 50PPM ST SLOW50 MHz ~ 75 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM ST FASTERSG-8200CJ-TJJSBOSC PROG CMOS 50PPM ST FASTER125 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /ST FASTERSG-8200CJ-TJJTBOSC PROG CMOS 50PPM /ST FASTER125 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /ST DEFSG-8200CJ-TJJTAOSC PROG CMOS 50PPM /ST DEF1.2 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM OE DEFSG-8200CJ-TJJPAOSC PROG CMOS 50PPM OE DEF1.2 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /ST FASTSG-8200CJ-TJJTCOSC PROG CMOS 50PPM /ST FAST75 MHz ~ 125 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM OE FASTERSG-8200CJ-TJJPBOSC PROG CMOS 50PPM OE FASTER125 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /OE FASTSG-8200CJ-TJJQCOSC PROG CMOS 50PPM /OE FAST75 MHz ~ 125 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /ST SLOWERSG-8200CJ-TJJTEOSC PROG CMOS 50PPM /ST SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /OE DEFSG-8200CJ-TJJQAOSC PROG CMOS 50PPM /OE DEF1.2 MHz ~ 170 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM ST SLOWERSG-8200CJ-TJJSEOSC PROG CMOS 50PPM ST SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM /OE SLOWERSG-8200CJ-TJJQEOSC PROG CMOS 50PPM /OE SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM OE SLOWSG-8200CJ-TJJPDOSC PROG CMOS 50PPM OE SLOW50 MHz ~ 75 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情
OSC PROG CMOS 50PPM OE FASTSG-8200CJ-TJJPCOSC PROG CMOS 50PPM OE FAST75 MHz ~ 125 MHz0 - 即時供貨
334 - 工廠存貨		$26.27查看詳情

SG-8200CG Series Low-Jitter Programmable Crystals

圖片製造商零件編號說明可用頻率範圍現有數量價格查看詳情
OSC PROG CMOS 50PPM OE SLOWSG-8200CG-TJJPDOSC PROG CMOS 50PPM OE SLOW50 MHz ~ 75 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /ST SLOWERSG-8200CG-TJJTEOSC PROG CMOS 50PPM /ST SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /OE DEFSG-8200CG-TJJQAOSC PROG CMOS 50PPM /OE DEF1.2 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM ST SLOWERSG-8200CG-TJJSEOSC PROG CMOS 50PPM ST SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM ST DEFSG-8200CG-TJJSAOSC PROG CMOS 50PPM ST DEF1.2 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /OE SLOWSG-8200CG-TJJQDOSC PROG CMOS 50PPM /OE SLOW50 MHz ~ 75 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /ST DEFSG-8200CG-TJJTAOSC PROG CMOS 50PPM /ST DEF1.2 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM ST FASTSG-8200CG-TJJSCOSC PROG CMOS 50PPM ST FAST75 MHz ~ 125 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM ST SLOWSG-8200CG-TJJSDOSC PROG CMOS 50PPM ST SLOW50 MHz ~ 75 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /OE FASTSG-8200CG-TJJQCOSC PROG CMOS 50PPM /OE FAST75 MHz ~ 125 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM ST FASTERSG-8200CG-TJJSBOSC PROG CMOS 50PPM ST FASTER125 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /ST FASTERSG-8200CG-TJJTBOSC PROG CMOS 50PPM /ST FASTER125 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM OE DEFSG-8200CG-TJJPAOSC PROG CMOS 50PPM OE DEF1.2 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /ST FASTSG-8200CG-TJJTCOSC PROG CMOS 50PPM /ST FAST75 MHz ~ 125 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /OE FASTERSG-8200CG-TJJQBOSC PROG CMOS 50PPM /OE FASTER125 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /ST SLOWSG-8200CG-TJJTDOSC PROG CMOS 50PPM /ST SLOW50 MHz ~ 75 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM /OE SLOWERSG-8200CG-TJJQEOSC PROG CMOS 50PPM /OE SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM OE FASTSG-8200CG-TJJPCOSC PROG CMOS 50PPM OE FAST75 MHz ~ 125 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM OE SLOWERSG-8200CG-TJJPEOSC PROG CMOS 50PPM OE SLOWER1.2 MHz ~ 50 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
OSC PROG CMOS 50PPM OE FASTERSG-8200CG-TJJPBOSC PROG CMOS 50PPM OE FASTER125 MHz ~ 170 MHz0 - 即時供貨
667 - 工廠存貨		$24.80查看詳情
