IRAUDAMP23: 500W x2 @ 20 Ω, ±80 V~±180 V in

Summary

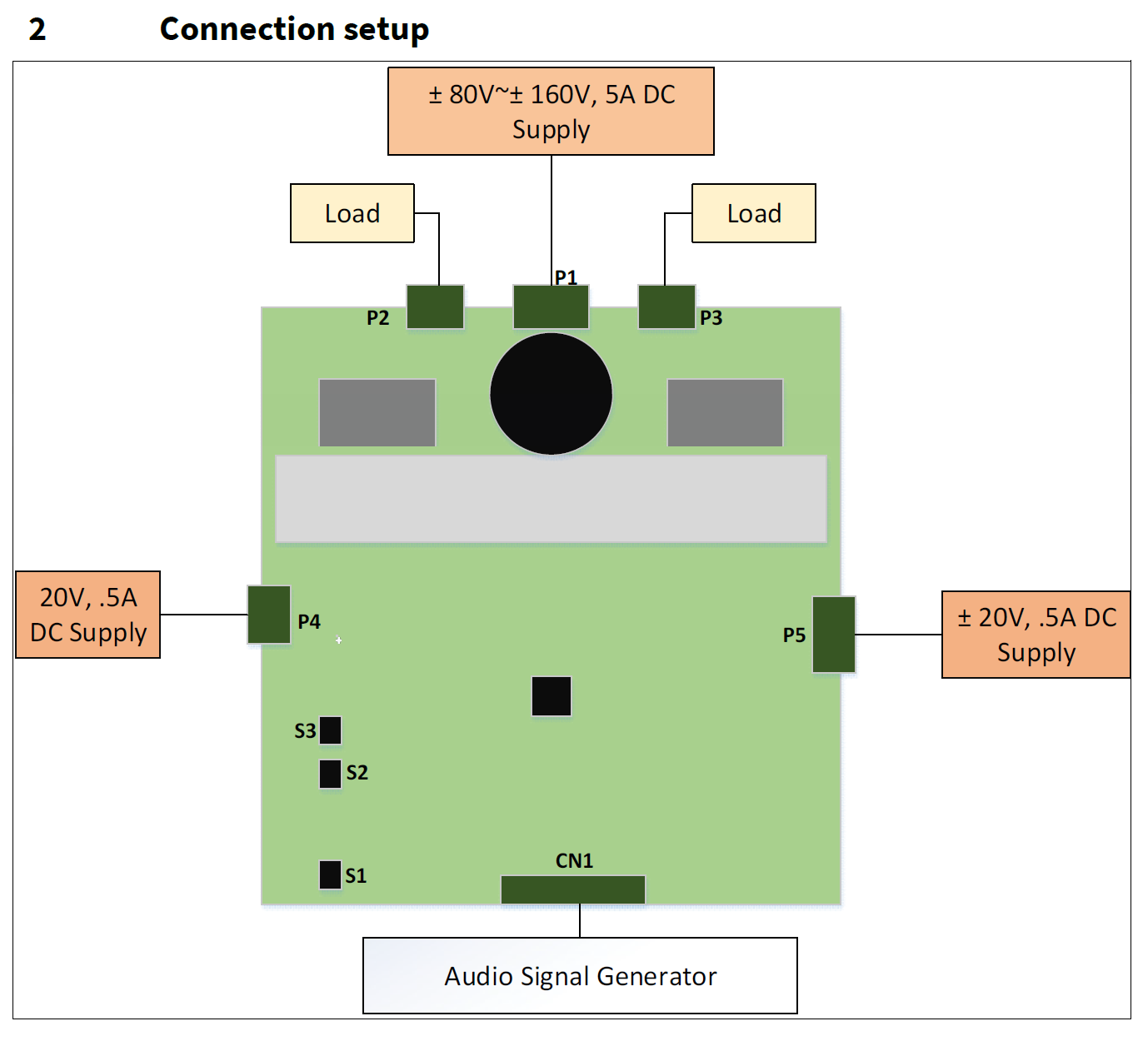

The IRAUDAMP23 evaluation board is a two-channel, 500 W/ch (100 Vrms, 20 Ω at ±148.3 V) half-bridge Class D audio power amplifier for high impedance distribution systems. This evaluation board demonstrates how to use the IRS2452AM controller IC, implement protection circuits, and design an optimum PCB layout.

Applications

Constant voltage distribution system
Installation system
Paging system

Features

Output power: 500 W x 2 channel (1% THD+N, 100 Vrms or 70 Vrms)
Multiple protection features:

- Over-current protection (OCP), high side and low side FETs

- Over-voltage protection (OVP)

- Under-voltage protection (UVP), high side and low side FETs

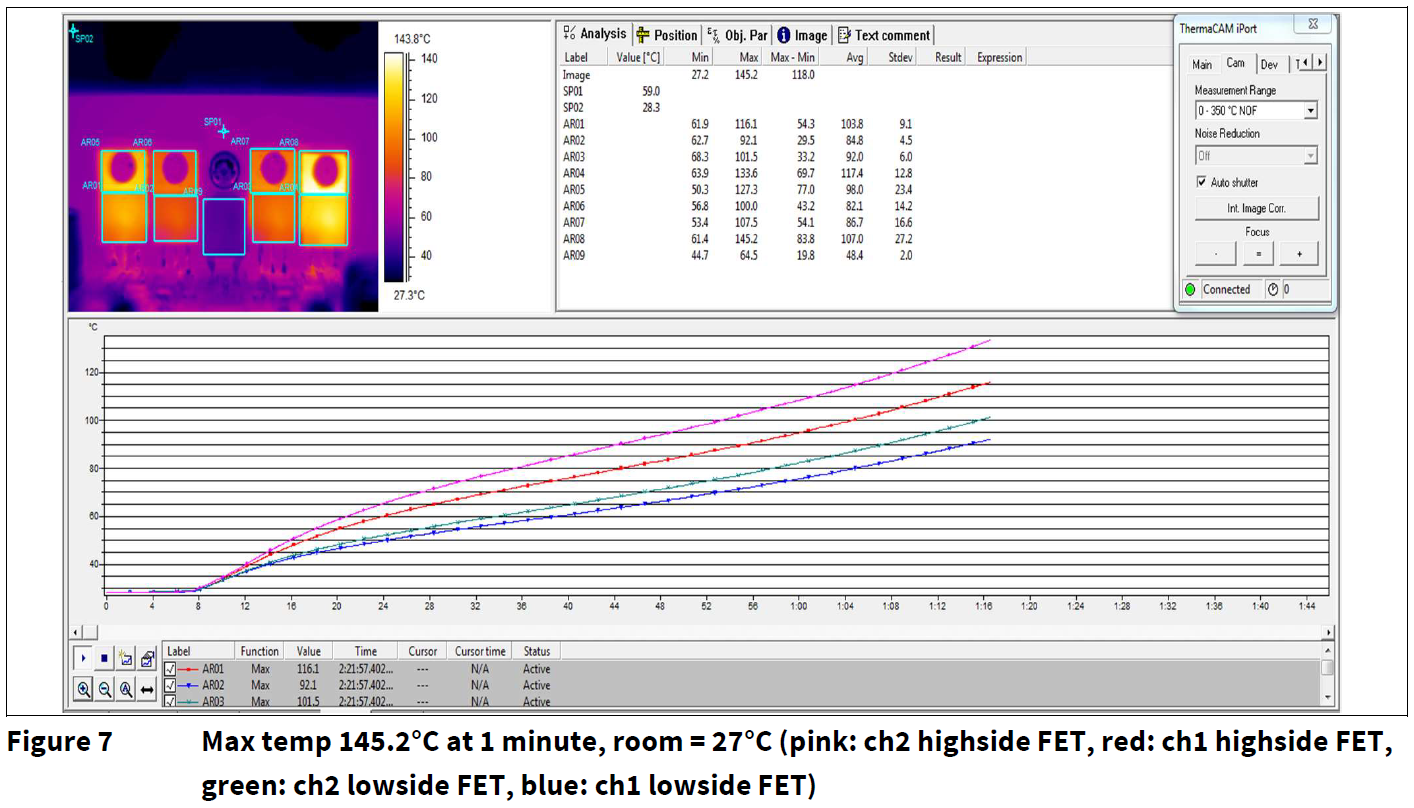

- Over-temperature protection (OTP)

(Infineon Technologies bought International Rectifier)

Specifications

Manufacturer	Infineon Technologies
Category	Audio Amplifiers
Eval Board Part Number	448-IRAUDAMP23-ND
Eval Board Supplier	Infineon Technologies
Eval Board	Board not Stocked
Amplifier Type	Class D
Number of Outputs	Stereo
Output Power (RMS) @ Load	500 W x 2 @ 20 Ω
Voltage In	±80 V ~ ±180 V
THD+N (1kHz) @ Conditions	< 0.05% @ 420 W (20 Ω, ±148.3V)
Features	Over Current Protection Over Voltage Protection Thermal Protection Under Voltage Protection, Brown-Out
Efficiency @ Conditions	>92%, 230V in @ 100 ~ 200W >92%, 120V in @ 100 ~ 200W
Standby Current [Typical]	- Not Given
Quiescent Current [Typical]	±80 mA
Component Count + Extras	232 + 4
Application / Target Market	Audio: Constant voltage distribution system Audio: Multi-Room System Audio: Multi-Room System Audio: Paging System
Design Author	Infineon Technologies
Main I.C. Base Part	IRS2452AM
Quiescent Current [Maximum]
Standby Current [Maximum]
Date Created By Author	2018-06
Date Added To Library	2022-07
