LM8850UREV: 5V @ 1A, 2.3 ~ 5.5Vin, SuperCap,I2C

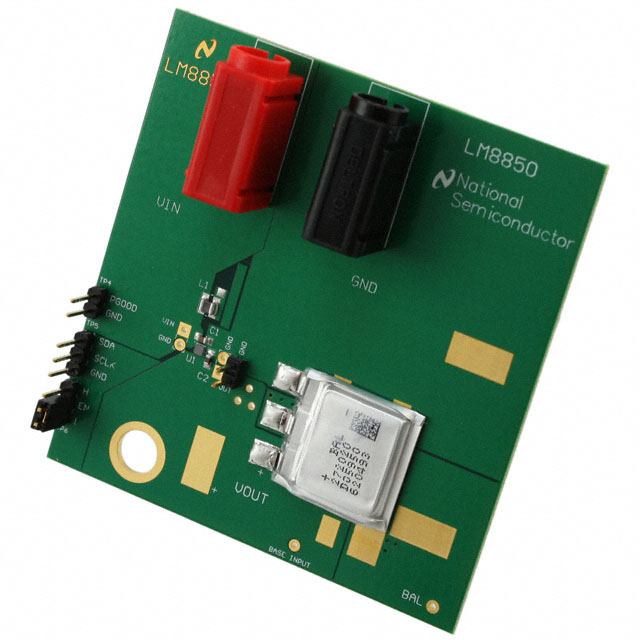

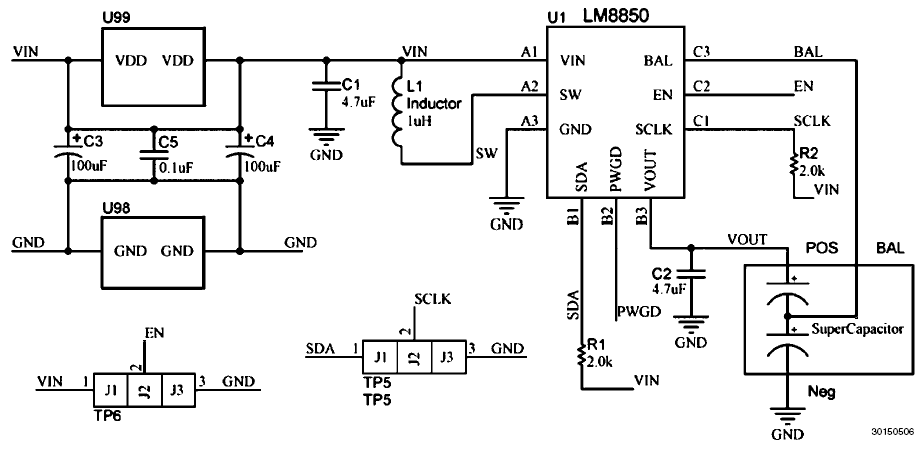

The LM8850 evaluation board is a working demonstration of a step-up DC-DC converter that has been optimized for use with a super-capacitor. The super-capacitor protects a battery from power surges and enables new high-power applications in mobile device architectures. The LM8850 creates an ideal rail from 3.6V to 5.7V from an input voltage range of 2.3V to 5.5V, VIN must be 10% lower than expected VOUT.

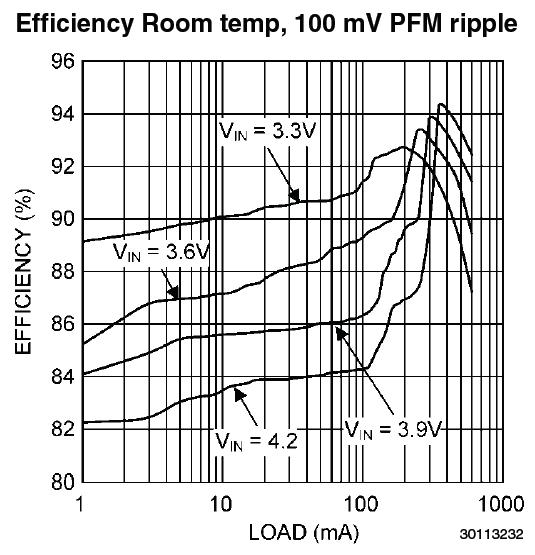

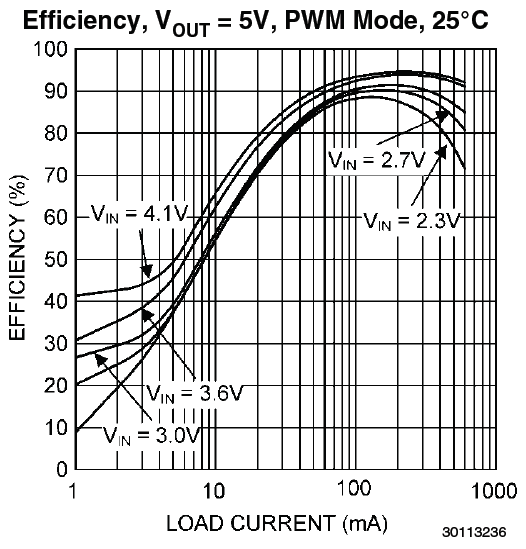

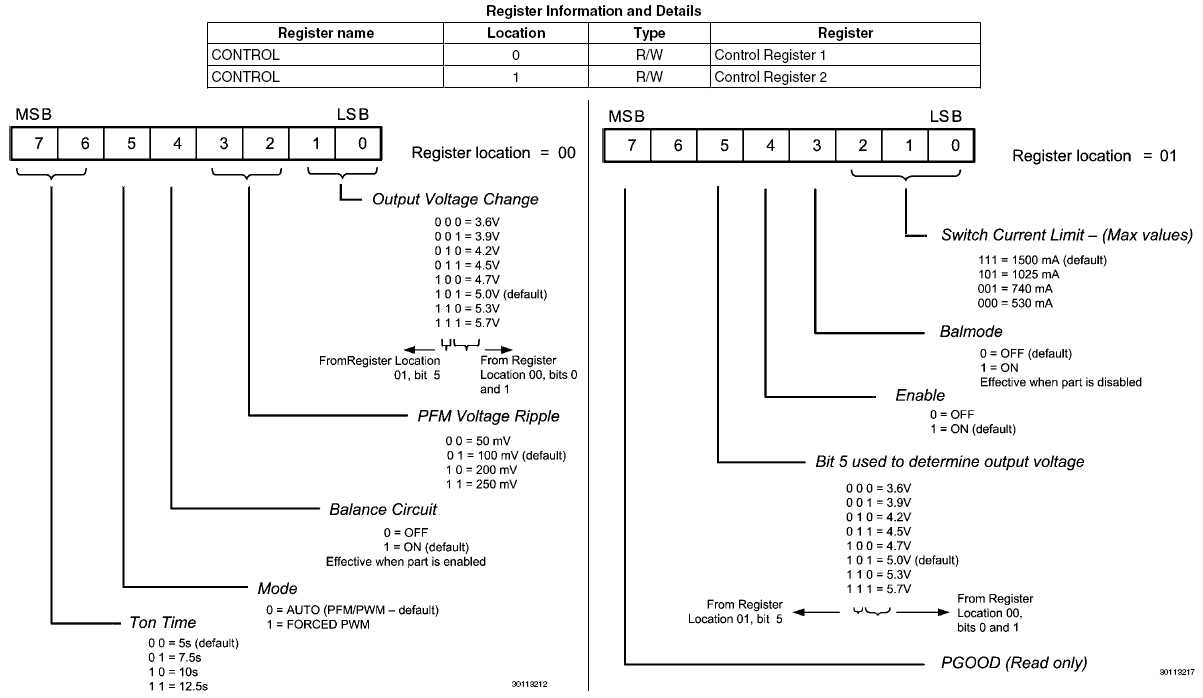

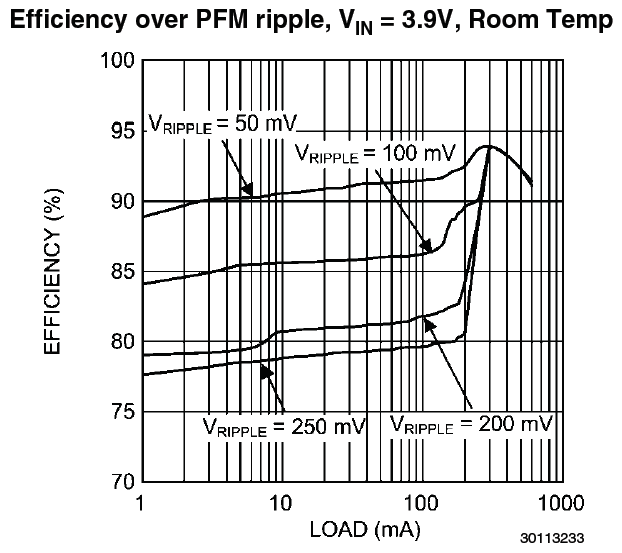

An I2C interface controlling multiple output voltage settings, input current limits, and load currents up to 1A provides superior user flexibility. The LM8850 operates in Auto mode, where the converter is in PFM mode at light loads and switches to PWM mode at heavy loads or in forced PWM mode. Hysteretic PFM extends the battery life by reducing the quiescent current to 7µA (typ.) during light load and standby conditions. Synchronous operation provides true shutdown isolation and improves the efficiency at medium to full load conditions.

High switching frequency (2.5 MHz) enables smaller passive components. Internal compensation is used for a broader range of inductor and output capacitor values to meet system demand and achieve small system solution size.
