STEVAL-VP318L2F: 18W, 15V @ 1.2A, 90 ~ 265 VAC

Summary

The STEVAL-VP318L2F implements a 15V - 18W isolated flyback converter in primary side regulation (PSR) developed for general purpose applications, operating from 90 to 265 VAC.

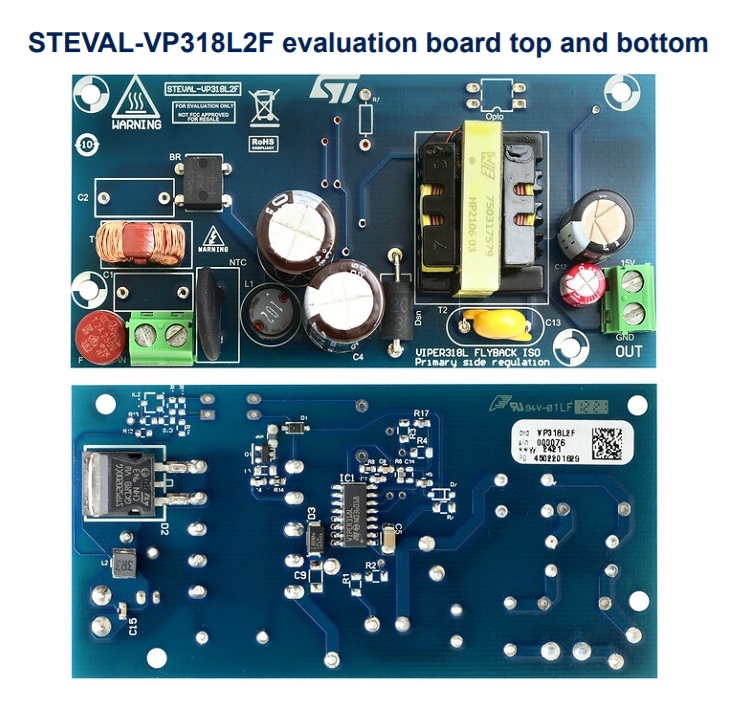

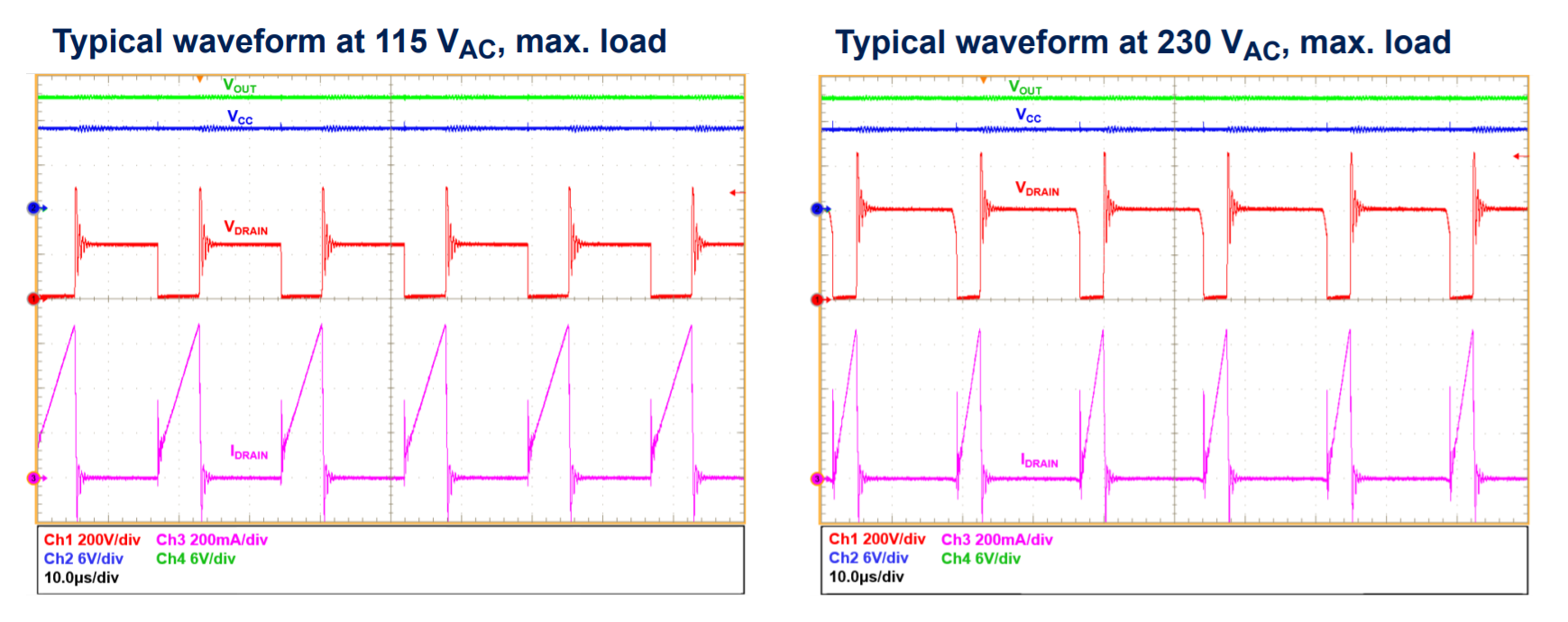

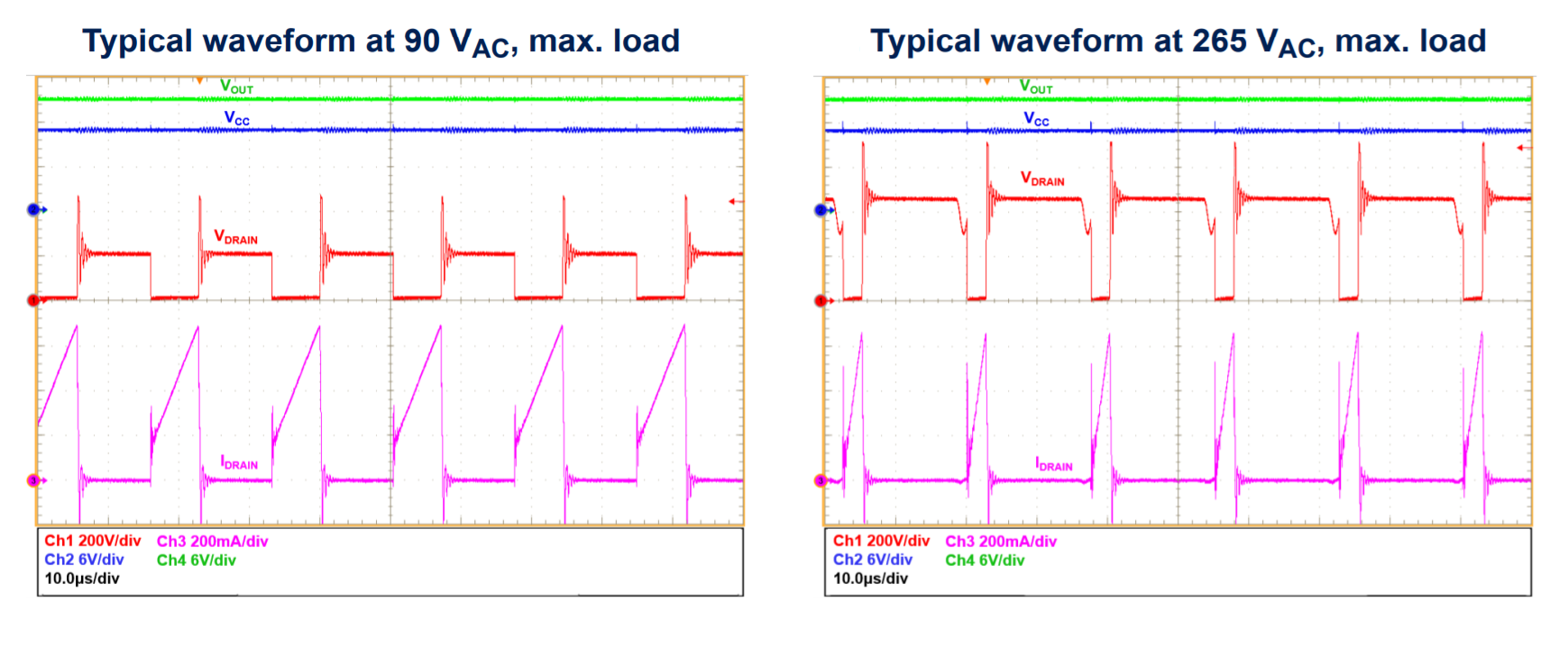

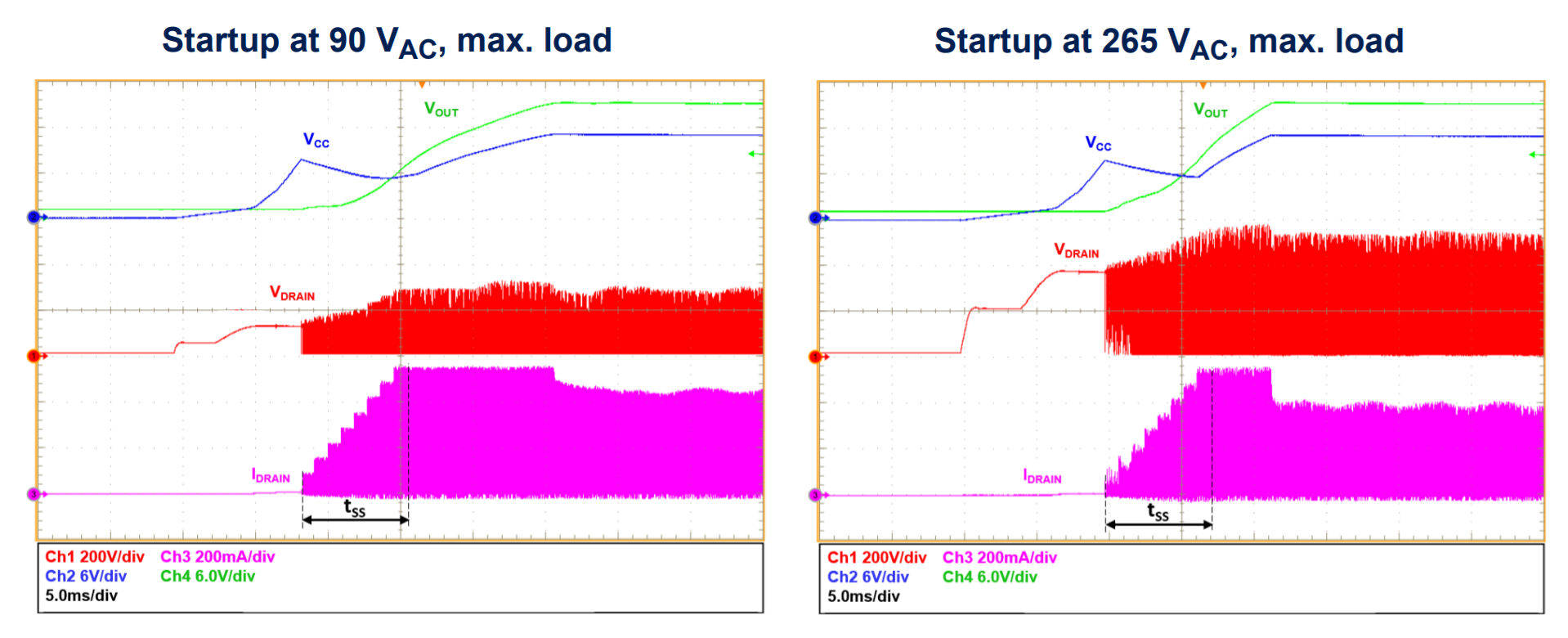

The STEVAL-VP318L2F reference design is built around the VIPER318LDTR offline high-voltage converter which belongs to the VIPerPlus family and features an 800 V avalanche-rugged power MOSFET, PWM current mode control, fixed 60 kHz switching frequency with jittering to meet electromagnetic disturbance standards and burst mode for light load management.

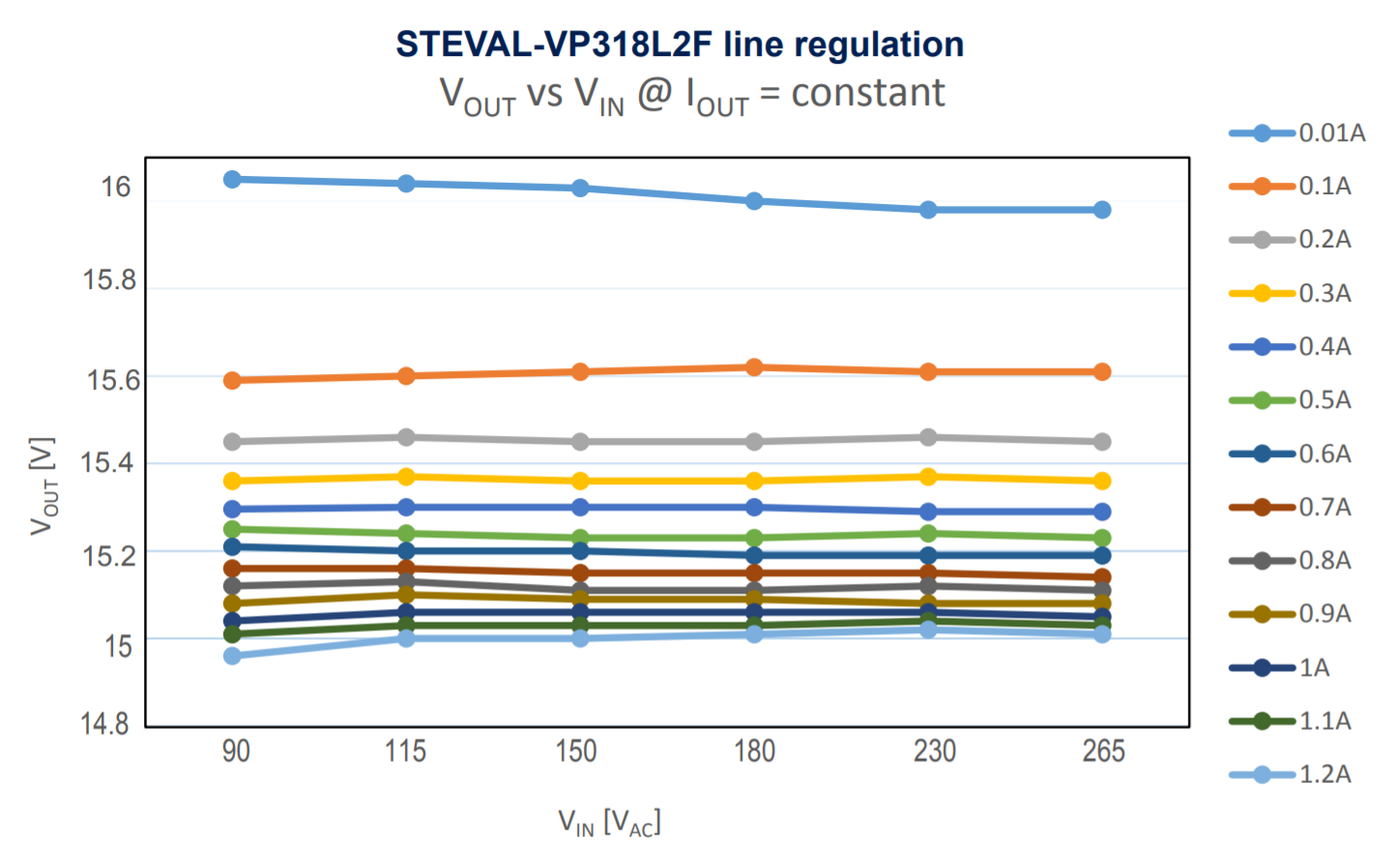

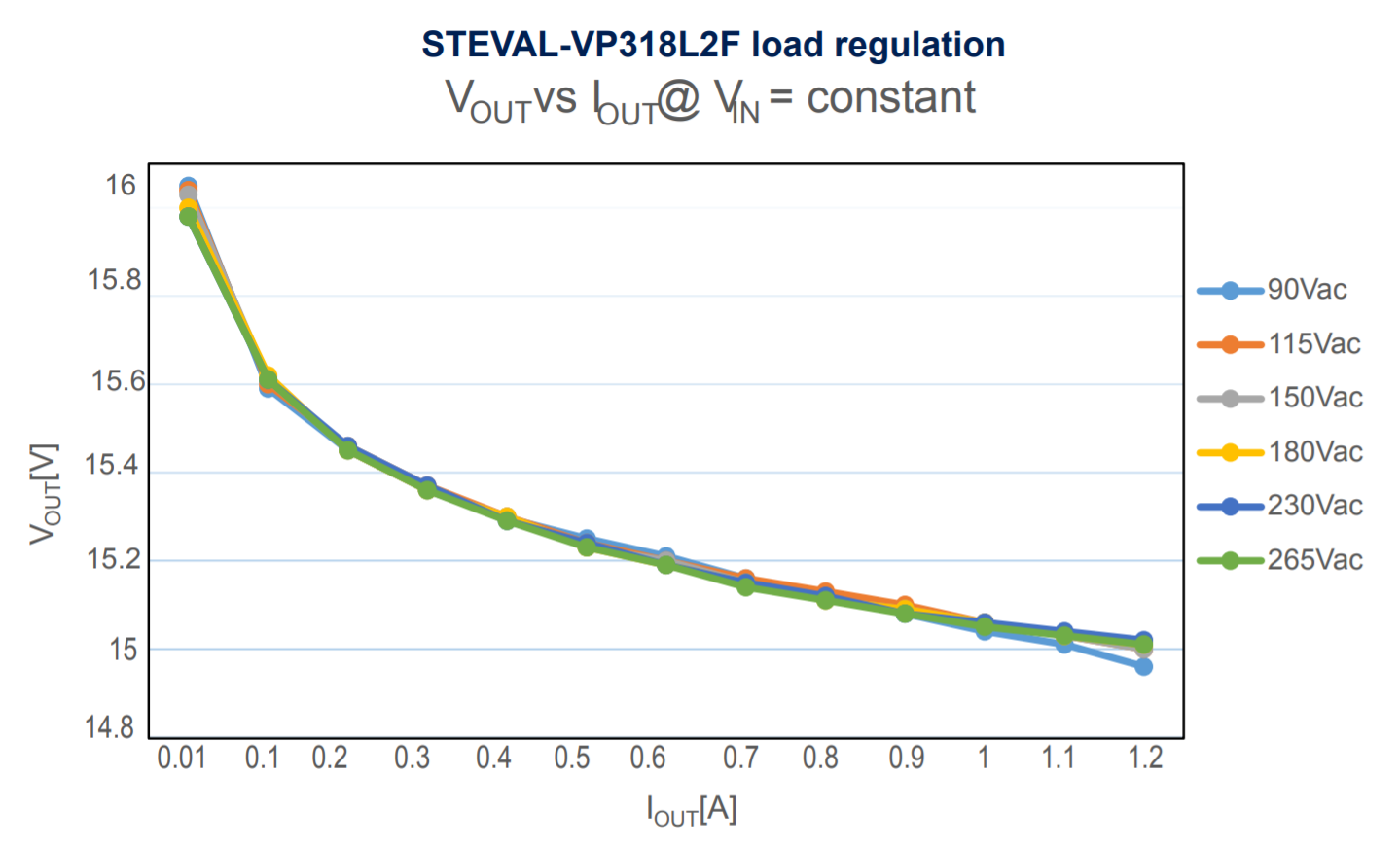

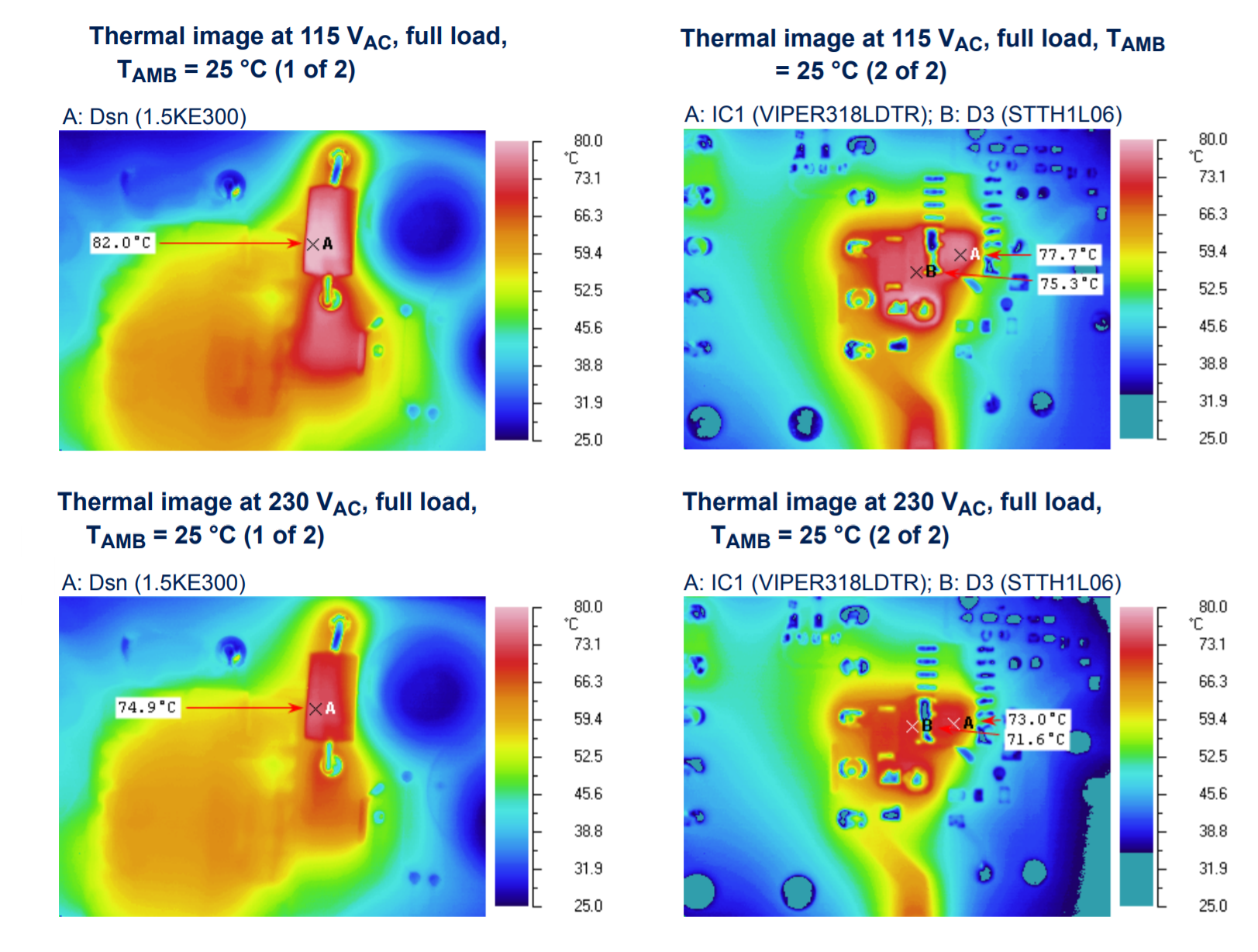

The evaluation board main characteristics are: small size, minimal BOM, high efficiency and tight line, load regulation over the entire input and output ranges. Input overvoltage and undervoltage protections, with separate and settable intervention thresholds, are available at OVP and UVP pins.

Specifications

Manufacturer	STMicroelectronics
Category	AC/DC and DC/DC Conversion
Sub-Category	AC/DC SMPS - Single Output
Eval Board Part Number	497-STEVAL-VP318L2F-ND
Eval Board Supplier	STMicroelectronics
Eval Board	Normally In Stock
AC Voltage	115 V 230 V Universal (115 / 230V) 190 V 208 V
Outputs and Type	1 Isolated
Voltage Out	15 V
Current Out	1.2 A
Output Power	18 W
Features	Frequency Jitter for EMI Light Load Mode Over Current Protection Over Voltage Protection PFM or PWM Soft Start Thermal Protection Under Voltage Protection, Brown-Out
Efficiency @ Conditions	>84% Avg @ 230 VAC in >83% Avg @ 115 VAC in
No-load Input Power @ Voltage	- Not Given
Switching Frequency	60 kHz
Internal Switch	Yes
Component Count + Extras	29 + 9
Voltage In	90 ~ 265 VAC
Design Author	STMicroelectronics
Application / Target Market	Power: AC Adapters Power: Auxiliary Power Supply Power: Industrial Power
Main I.C. Base Part	VIPer318L
Date Created By Author	2021-06
Date Added To Library	2021-12
