Quadcept – Revolutionary CAD System

Purchase Free Download

Quadcept's innovative EDA solutions new CAD system PCB designer

Quadcept is schematic and PCB design CAD software known for its mobility and user-friendly interface as well as sophisticated functions that maximize designers' productivity.

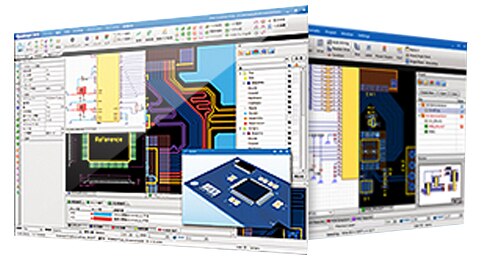

Quadcept's innovative EDA solutions new CAD system PCB designer image

For instance, PCB designer is equipped with loads of powerful routing features such as semi-auto routing, tangent arc routing, pair routing, and route length turning.

Circuit Designer comes with device sheet features that enable designers to re-use modularized circuit block between projects.

Quadcept dramatically increases design successes by tackling most time-consuming works in the design process.

Moreover, Quadcept provides 25k components which are all linked with DigiKey. Designers can refer datasheets, stocks, and prices, and place an order at any time during design.

Users can, of course, easily associate their libraries with DigiKey and not only refer datasheets but also import the information to libraries as a component’s properties.

Features
  • PCB Designer:
    • Component link with DigiKey
    • Lots of design rule and manufacturing rule checks
    • Panelizing
    • Online DRC/walking around obstacles
    • Semi-auto routing/tangent arc routing/pair routing
    • Define different design rules in specific area
    • Route smoothing
    • Impedance calculation
    • IPC footprint wizard
    • 3D file import/export
    • Cross probing
    • Forward and back annotation
    • Comparing old and new design data
  • Circuit Designer:
    • Device sheets and blocks
    • Writing comments on sheets directly and transferring to PCB designer
    • Auto wiring
    • More than 30 electrical rule checks
    • Component link with DigiKey
    • Single point ground
    • Cross probing
    • Forward and back annotation
    • Comparing old and new design data
  • Community Edition (Free):
    • Use the CAD with limited functions
      • Community version of Quadcept with limited functions is available for free of charge.
    • Use NET CHANGER
      • NET CHANGER is a free cloud-based service to convert / compare netlists.
    • Free component library [Quadcept Share]
    • Search parts online
    • Estimate/Order
    • Technical support

Innovative EDA Solutions

Part Number
QCCD365-PR Circuit Designer QCCD365-PR Circuit Designer Product Page
QCPD365-PR PCB Designer QCPD365-PR PCB Designer Product Page
