Introduction

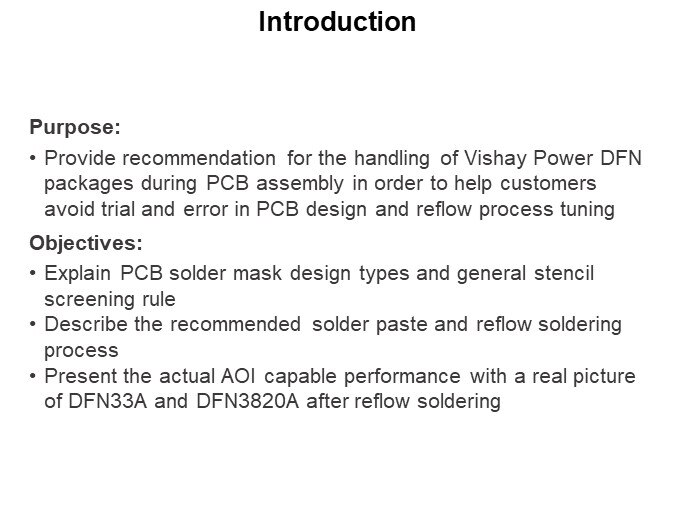

Welcome to the Vishay Explanation of Soldering Recommendations for Power DFN Packages product training module. This presentation introduces the application note of soldering recommendations for power DFN packages. It will also explain PCB solder mask design types and the general stencil screening rule, describe the recommended solder paste and reflow soldering process, and present the actual AOI-capable performance with a real picture of the DFN33A and DFN3820A after reflow soldering.
