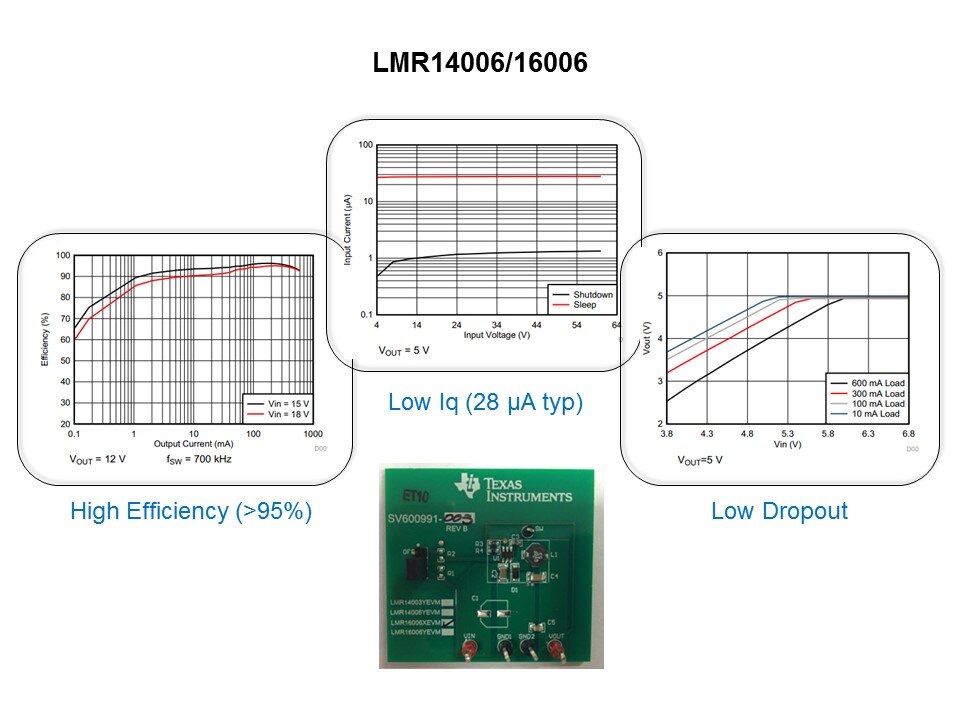

14006-16006 graphs

The LMR14006/16006 devices are highly efficient, with low quiescent current and low dropout. They can operate at >95% efficiency with full loads. In addition, they have a 28 µA typical Iq. For loads of 600 mA dropout occurs at a Vin of less than 6.3 V.
