EMC-Slide16

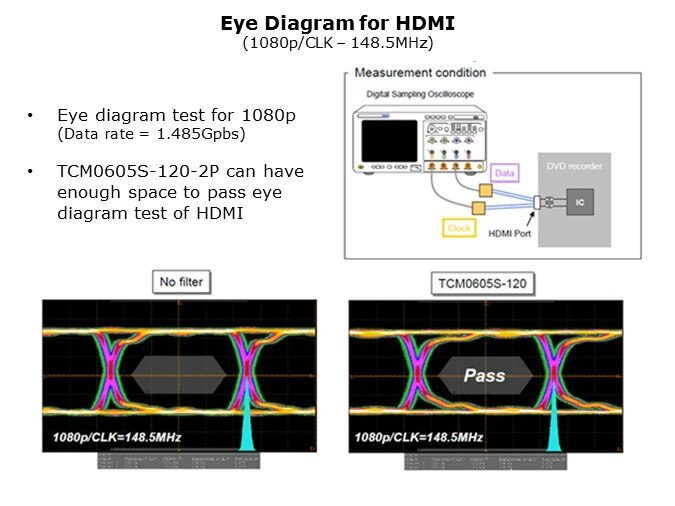

Shown on this slide is an eye diagram test pattern for 1080P HDMI signals. The eye diagram on the left is the signal with no filter and the pattern on the right shows the signal passing through the TCM0605S-120-2P filter.
