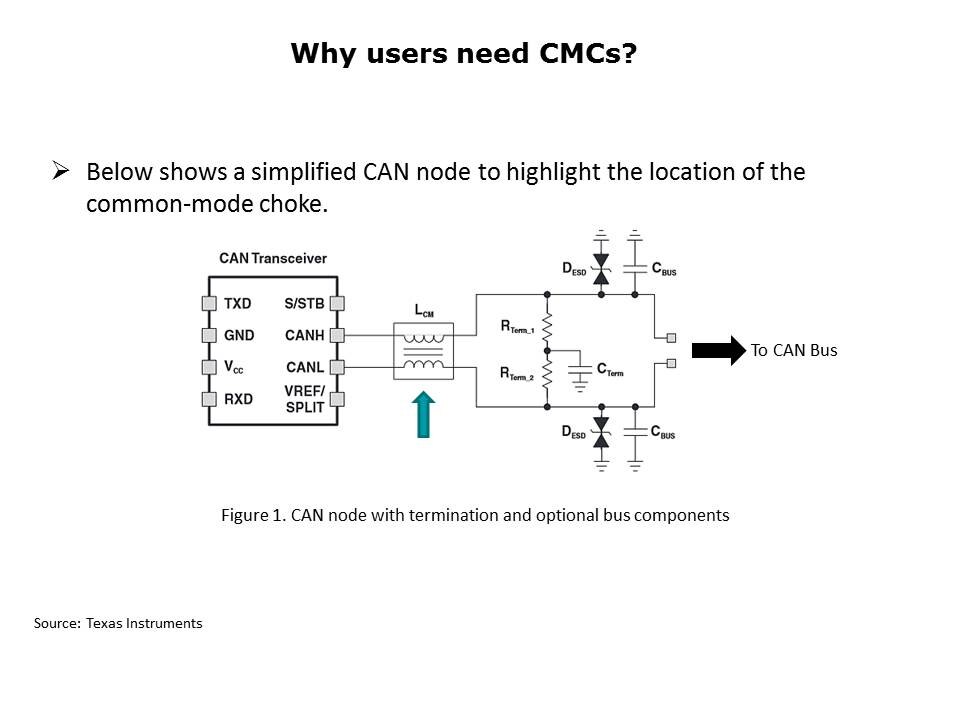

Figure 1, displayed here is a simplified schematic of a typical CAN node. This highlights the location of the common-mode choke along with other bus components to illustrate the termination circuit and optional transient protection scheme (TVS) to improve ESD immunity. Note that the actual circuit design and component values depend on network topology, node function, and car manufacturer requirements.
