Fish Find

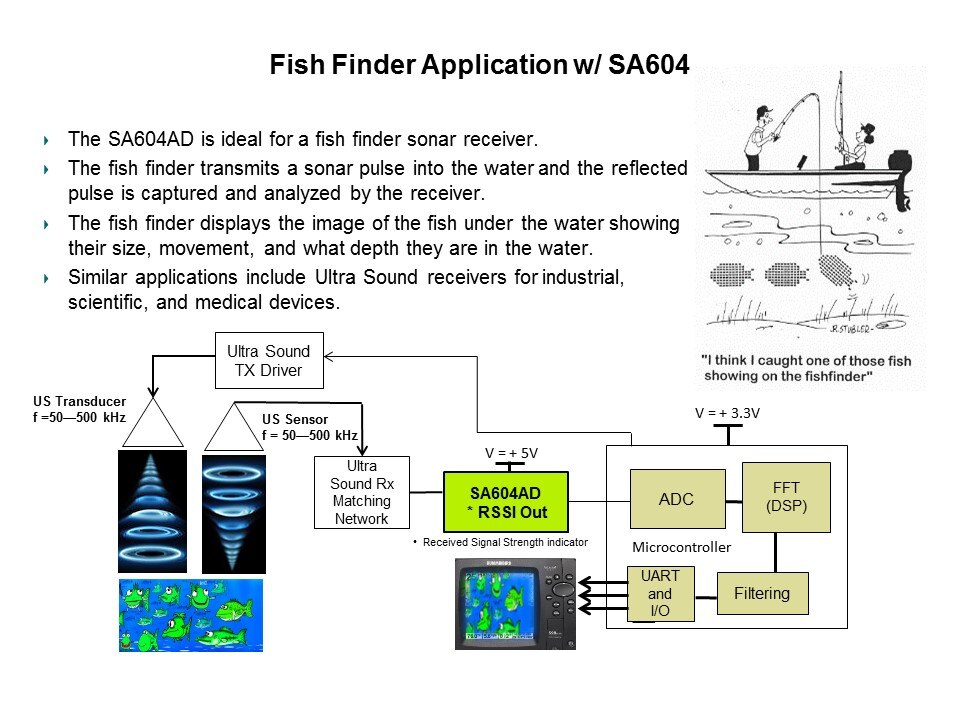

The SA604AD is ideal for a fish finder sonar receiver. In this application, a sonar pulse is transmitted into the water and the reflected pulse is captured by the SA604AD and analyzed by the microcontroller. The fish finder displays the image of the fish that are under the water showing their size, movement and what depth they are in the water. Similar applications include ultra sound receivers for industrial, scientific and medical devices.
