Posistor-Slide10

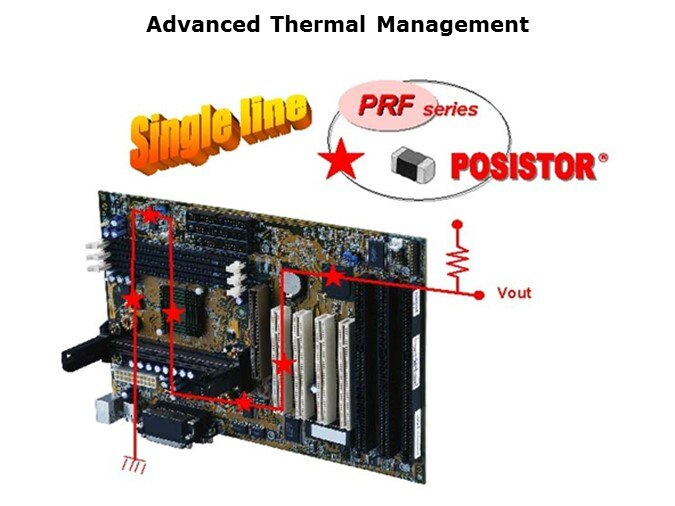

Series connected PRFs located at key thermal points on the PCB offer a simple and inexpensive solution to thermal detection. The control interface of the overheat detection circuit is also very simple, requiring a simple comparator or transistor.

PTM Published on: 2011-11-02
