LT375758-Slide5

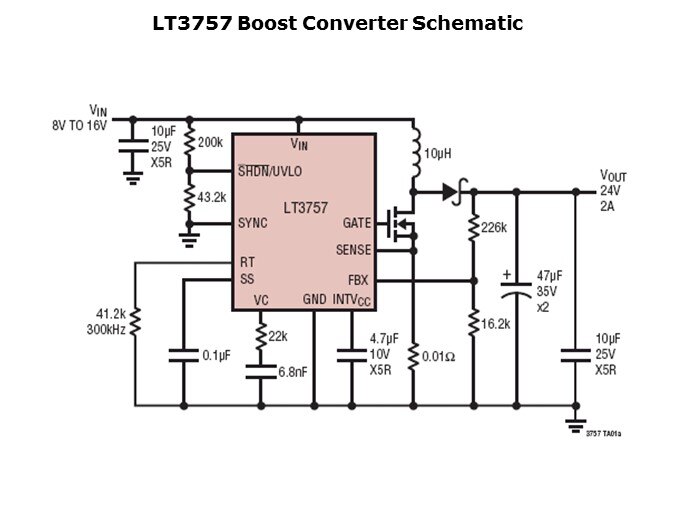

This schematic shows the LT3757 used as a boost converter with an input operating voltage of 8V to 16V and producing a 24V, 2A output.
