Introduction to Microphones Slide 9

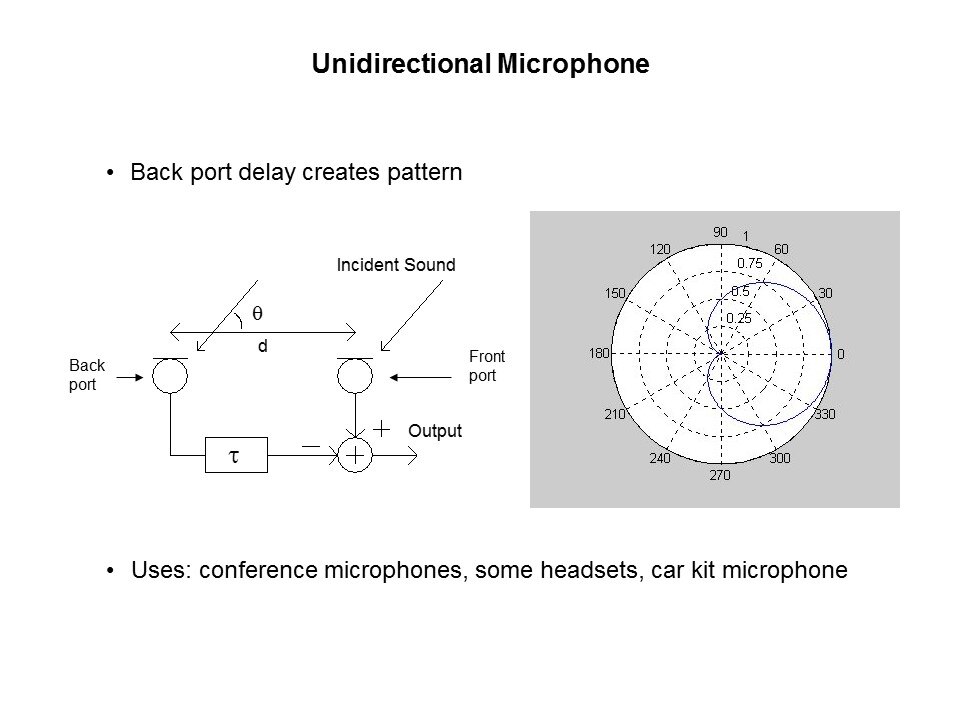

The figure on this slide shows the proportion of sound canceled for sound arriving at various angles where 0° corresponds to the front port direction and 180° corresponds to the rear port direction.
