JMD-Slide4

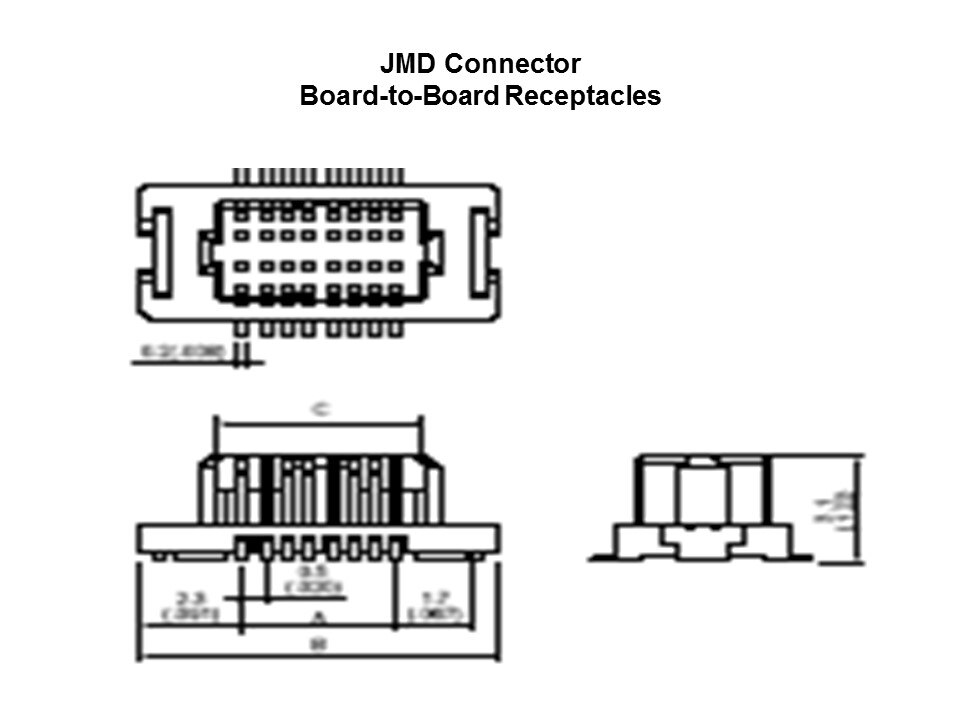

The mating receptacle contacts are gold-plated, phosphor-bronze with tin-plated, copper-undercoated brass solder tabs for added strength and stability. The receptacles will mate with either the top-entry (for stacking applications) or side-entry (for perpendicular applications) plugs for any number of applications that require a high-density, low-profile, low current board-to-board connection.

PTM Published on: 2011-10-21
