ZH-Slide5

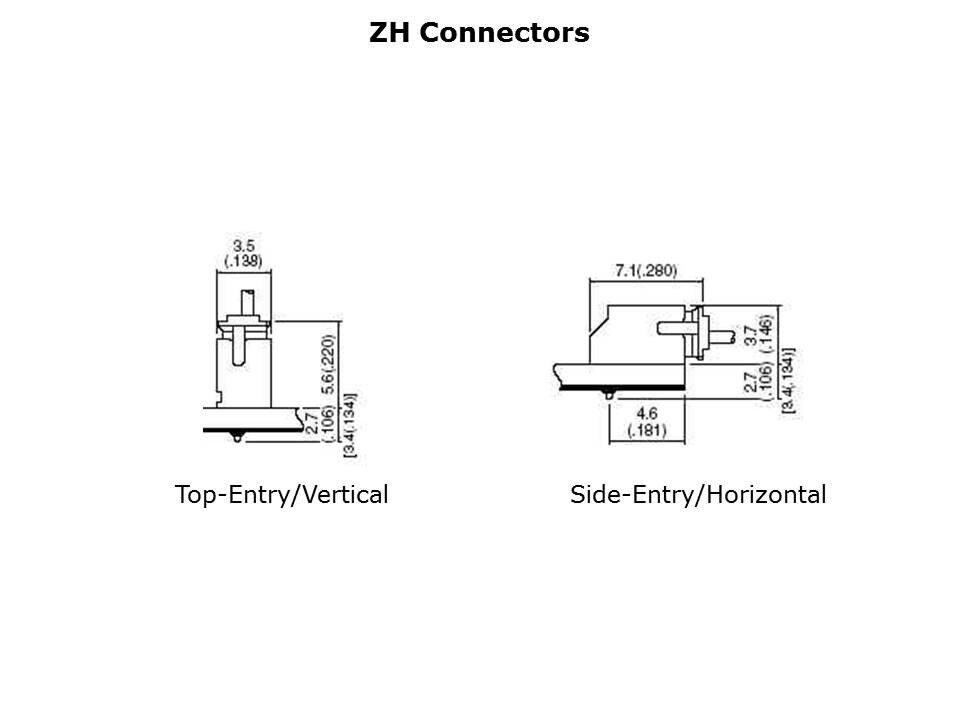

The ZH crimp style wire-to-board connectors offer design flexibility. This connector requires only about 45% of the installation space required by the standard JST 2.0mm pitch connectors. With a mated height of 5.6mm for top-entry and 3.7mm for side-entry headers in both through-hole and surface mount, the ZH series is compact and low-profile.

PTM Published on: 2011-10-19
