DW05-Slide10

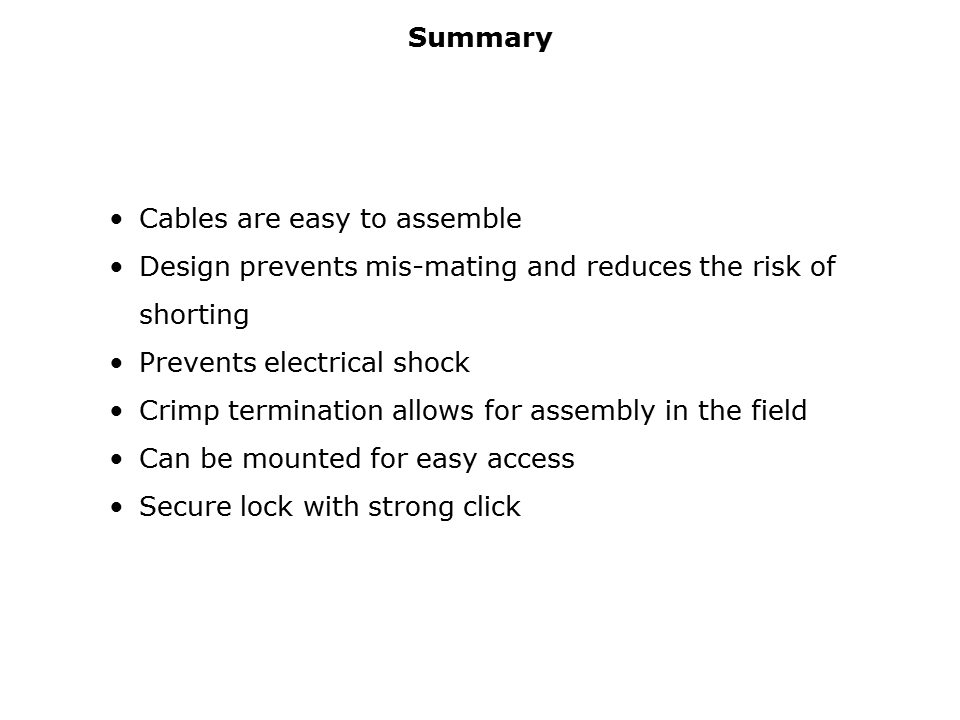

In summary, JAE’s DW05 series is a 150 A cable-to-cable connector combining safety with ease-of-use and assemble. It has been designed to prevent mis-mating from occurring, as well as reduce the risk of shorting, to prevent electrical shock, and the crimp termination allows for assembly in the field. The DW05 series can be mounted for easy access and can be locked securely with a strong click.

PTM Published on: 2016-03-17
