VHB-Slide17

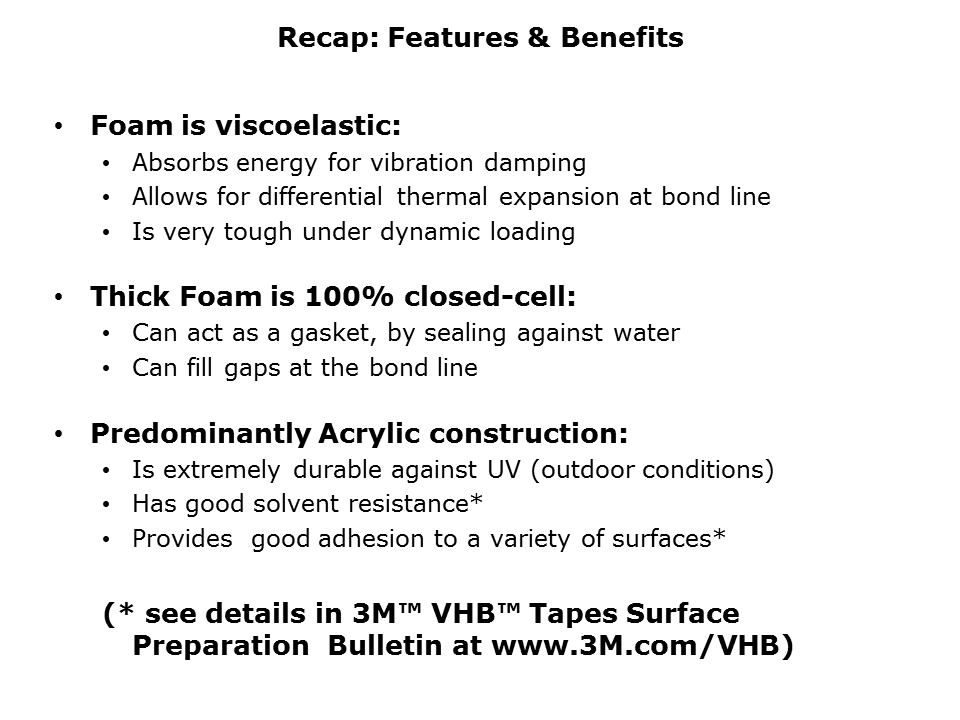

Shown here is essentially a recap of the features and benefits discussed so far. One additional point not discussed thus far is that 3M VHB Tape allows surfaces made of materials with different thermal expansion coefficients to be bonded by allowing the bond line to slide to accommodate the differential expansion. A more rigid attachment system would create strong tensile and compressive stresses in the two bonded surfaces and potentially result in buckling or cracking.

PTM Published on: 2011-10-13
