diff sig

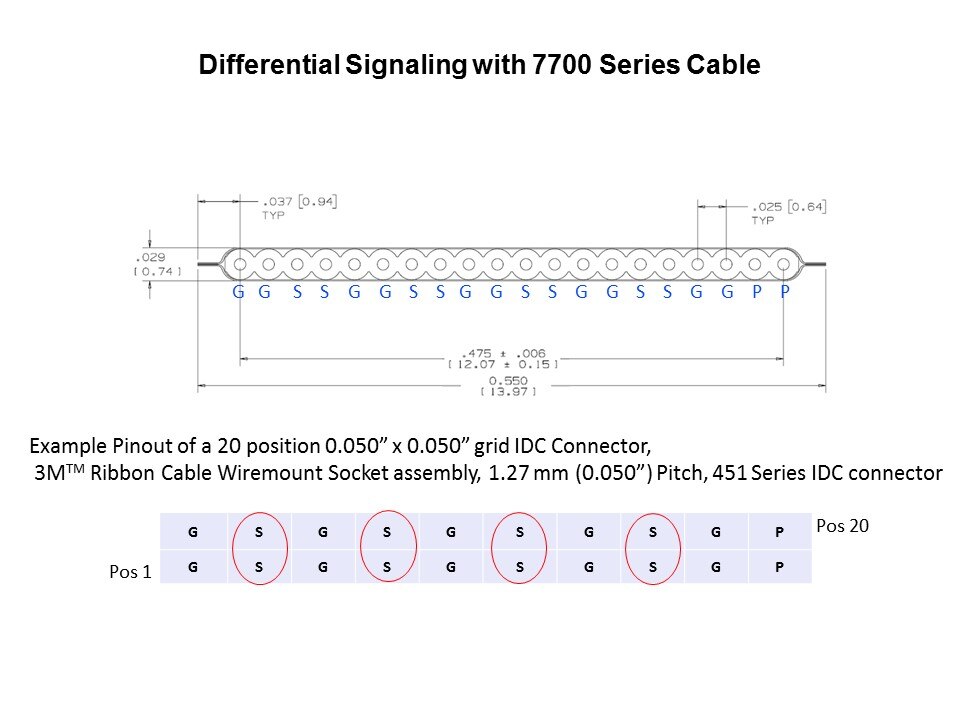

This cable features programmable lines for differential pairs, grounds and power to optimize LVDS performance. In this example using the 20 position cable, the recommended pin configuration would be GG SS GG SS GG SS GG SS GG PP.
