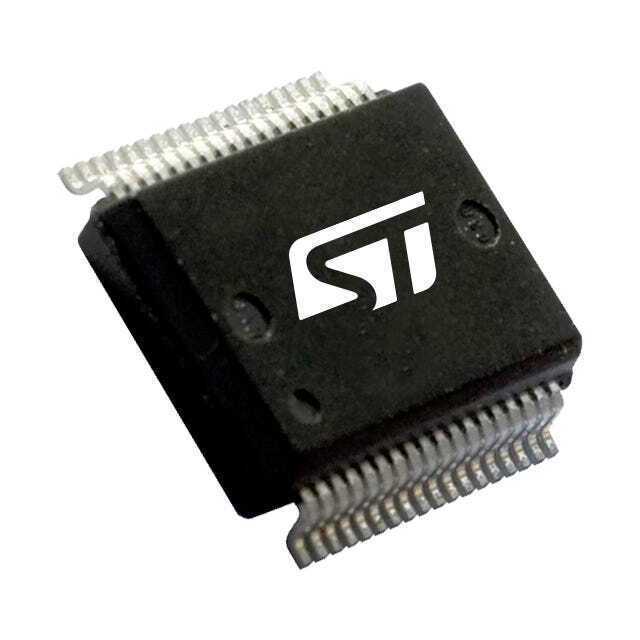

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
VN9D30Q100FTR | |
|---|---|
DigiKey Part Number | 497-VN9D30Q100FTR-ND - Tape & Reel (TR) 497-VN9D30Q100FTRCT-ND - Cut Tape (CT) 497-VN9D30Q100FTRDKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | VN9D30Q100FTR |
Description | 6-CHANNEL HIGH-SIDE DRIVER WITH |
Manufacturer Standard Lead Time | 26 Weeks |
Customer Reference | |
Detailed Description | Power Switch/Driver 1:6 N-Channel 6.6A 32-QFN (6x6) |
Datasheet | Datasheet |
EDA/CAD Models | VN9D30Q100FTR Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | - | |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Switch Type | ||
Number of Outputs | 6 | |
Ratio - Input:Output | 1:6 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | SPI | |
Voltage - Load | 4V ~ 29V | |
Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | |
Current - Output (Max) | 6.6A | |
Rds On (Typ) | 90mOhm | |
Input Type | Non-Inverting | |
Features | Status Flag | |
Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount, Wettable Flank | |
Supplier Device Package | 32-QFN (6x6) | |
Package / Case | ||
Base Product Number |
In-Stock: 5,995
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $29.64000 | $29.64 |
| 10 | $22.29200 | $222.92 |
| 25 | $20.46480 | $511.62 |
| 100 | $18.45450 | $1,845.45 |
| 250 | $17.49728 | $4,374.32 |
| 500 | $16.92006 | $8,460.03 |
| 1,000 | $16.44490 | $16,444.90 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 3,000 | $15.85804 | $47,574.12 |
