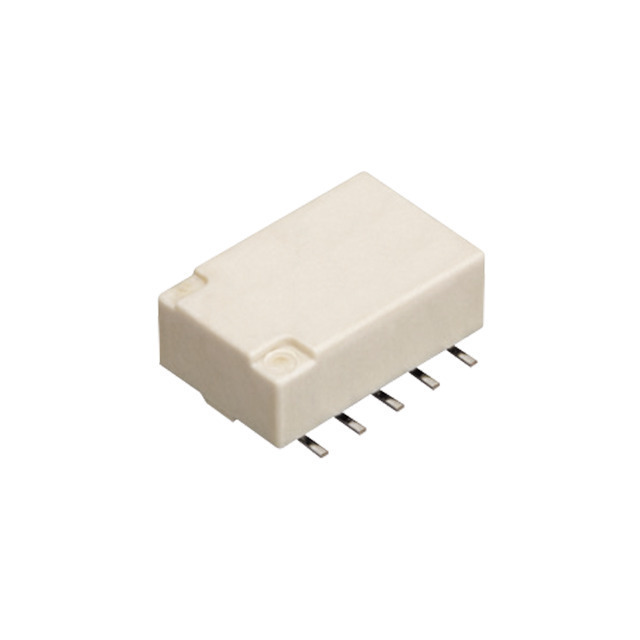

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TQ2SA-5V-X | |
|---|---|
DigiKey Part Number | 255-TQ2SA-5V-XTR-ND - Tape & Reel (TR) 255-TQ2SA-5V-XCT-ND - Cut Tape (CT) 255-TQ2SA-5V-XDKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | TQ2SA-5V-X |
Description | RELAY TELECOM DPDT 500MA 5V |
Manufacturer Standard Lead Time | 20 Weeks |
Customer Reference | |
Detailed Description | Telecom Relay DPDT (2 Form C) Surface Mount |
Datasheet | Datasheet |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Panasonic Electric Works | |
Series | ||
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Mounting Type | Surface Mount | |
Coil Voltage | 5VDC | |
Contact Form | DPDT (2 Form C) | |
Contact Rating (Current) | 500 mA | |
Switching Voltage | 125VAC, 220VDC - Max | |
Load - Max Switching | 250VA, 440W | |
Coil Current | 28.1 mA | |
Coil Type | Non Latching | |
Features | - | |
Termination Style | Gull Wing | |
Seal Rating | - | |
Coil Insulation | - | |
Must Operate Voltage | 3.75 VDC | |
Must Release Voltage | 0.5 VDC | |
Operate Time | 4 ms | |
Release Time | 4 ms | |
Operating Temperature | -40°C ~ 85°C | |
Contact Material | Silver Nickel (AgNi), Gold (Au) | |
Approval Agency | cURus | |
Relay Type | Telecom | |
Grade | - | |
Qualification | - | |
Coil Resistance | 178 Ohms | |
Base Product Number |
In-Stock: 5,029
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $16.46000 | $16.46 |
| 10 | $14.66900 | $146.69 |
| 25 | $14.00760 | $350.19 |
| 50 | $13.53020 | $676.51 |
| 100 | $13.06580 | $1,306.58 |
| 250 | $12.47740 | $3,119.35 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 500 | $21.62776 | $10,813.88 |
| 1,000 | $20.88475 | $20,884.75 |
| 1,500 | $20.46179 | $30,692.69 |
| 2,500 | $19.94084 | $49,852.10 |
| 3,500 | $19.60481 | $68,616.84 |
