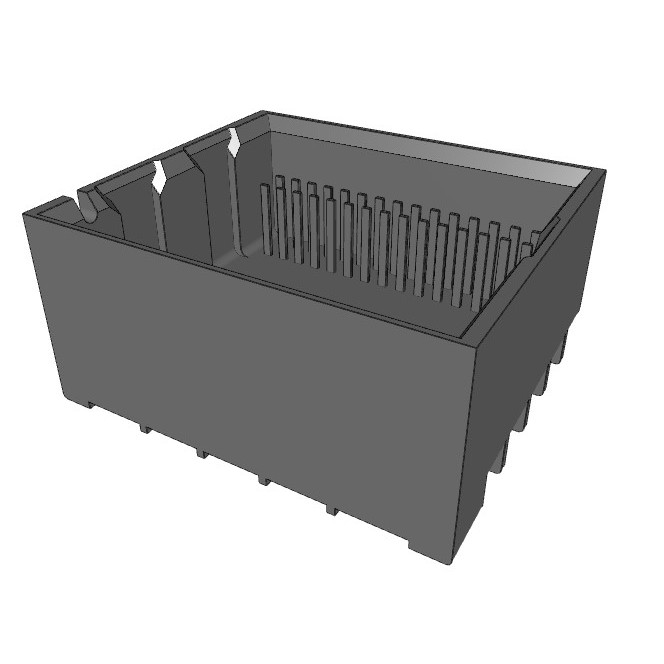

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0761703036 | |
|---|---|
DigiKey Part Number | WM22028-ND |
Manufacturer | |
Manufacturer Product Number | 0761703036 |
Description | CONN RCPT IMPACT 54POS EDGE MNT |
Manufacturer Standard Lead Time | 20 Weeks |
Customer Reference | |
Detailed Description | 54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Left |
Datasheet | Datasheet |
EDA/CAD Models | 0761703036 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Molex | |
Series | ||
Packaging | Tray | |
Part Status | Active | |
Connector Usage | - | |
Connector Type | Receptacle, Female Sockets | |
Connector Style | Impact, Guide Left | |
Number of Positions | 54 | |
Number of Positions Loaded | All | |
Pitch | 0.053" (1.35mm) | |
Number of Rows | 9 | |
Number of Columns | 6 | |
Mounting Type | Board Edge, Through Hole, Right Angle | |
Termination | Press-Fit | |
Contact Layout, Typical | 18 Differential Pairs | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 30.0µin (0.76µm) | |
Color | Black | |
Current Rating (Amps) | - | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -55°C ~ 85°C | |
Voltage Rating | 30V | |
Base Product Number |
In-Stock: 32
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Tray
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $87.84000 | $87.84 |
| 10 | $74.66400 | $746.64 |
| 25 | $69.98520 | $1,749.63 |
| 50 | $66.64300 | $3,332.15 |
| 100 | $63.46130 | $6,346.13 |
| 294 | $58.81401 | $17,291.32 |
| 588 | $56.00966 | $32,933.68 |
| 1,176 | $53.33965 | $62,727.43 |
